National Crane Published 03-18-2019 Control # 582-04 4-13
NBT30H-2 OPERATOR MANUAL SET-UP
4
Table 4-1
Wire Rope Clip Torque Values
Clip Sizes Torque
Inches mm lb-ft Nm
1/8 3.18 4.5 6
3/16 4.76 7.5 10
1/4 6.35 15 20
5/16 7.94 30 40
3/8 13.28 45 60
7/16 11.11 65 90
1/2 12.70 65 90
9/16 14.29 95 130
5/8 15.88 95 130
3/4 19.05 130 175
7/8 22.23 225 300
1 25.40 225 300
1-1/8 28.58 225 300
1-1/4 31.75 360 490
1-3/8 38.68 360 490
1-1/2 38.10 360 490

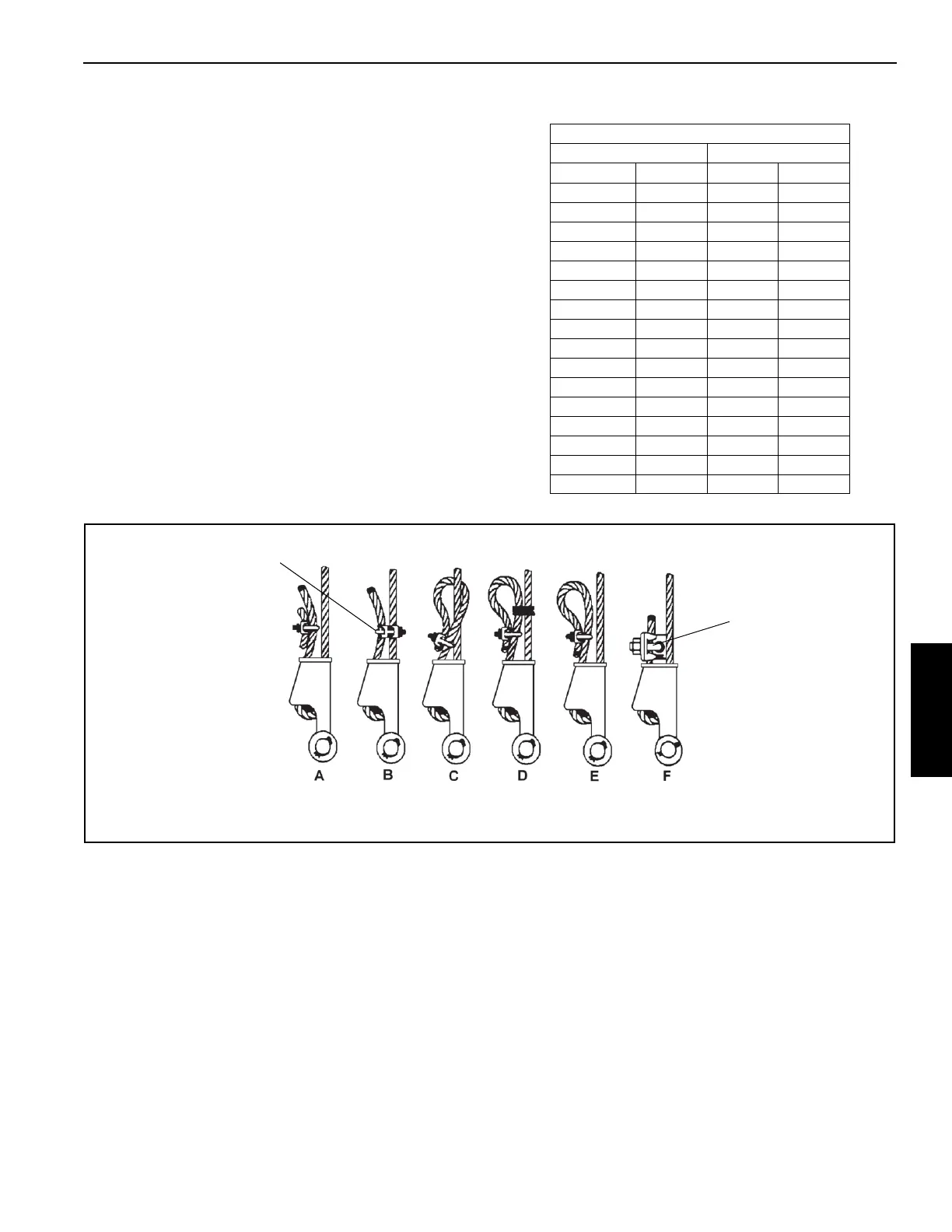

FIGURE 4-8
Wedge Socket
Specialty Clip
Specialty Wedge
