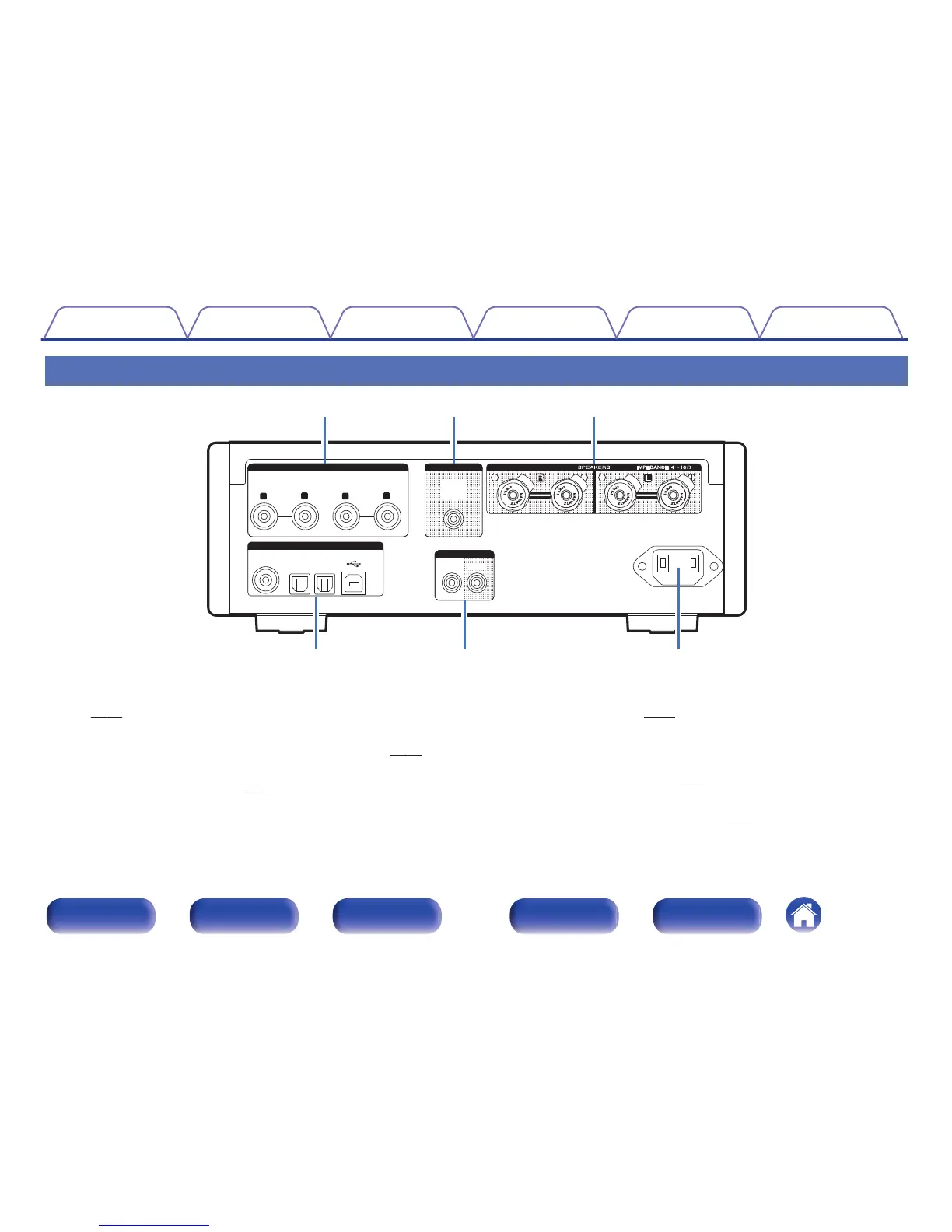

Rear panel
.
IN
IN
OUT
OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB-DAC
USB-DAC
OPTICAL
OPTICAL
COAXIAL
COAXIAL
1
2
L
R
L
R
SUB
SUB
WOOFER
WOOFER
OUT
OUT
ANALOG2
ANALOG2
ANALOG1
ANALOG1
AC IN
AC IN
AUDIO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
REMOTE CONTROL
REMOTE CONTROL
r t y
q w e
A
AUDIO IN connectors
Used to connect devices equipped with analog audio connectors.
(v p. 20)
B
SUBWOOFER OUT connector
Used to connect a subwoofer with a built-in amplifier. (v
p. 19)
C
Speaker terminals (SPEAKERS)
Used to connect speakers. (v
p. 19)
D
DIGITAL AUDIO IN connectors
Used to connect a computer or devices equipped with digital audio
output connectors. (v p. 20)
E
Remote control input/output connectors
(REMOTE CONTROL IN/OUT)
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v p. 24)
F
AC inlet (AC IN)
Used to connect the power cord. (v p. 25)
