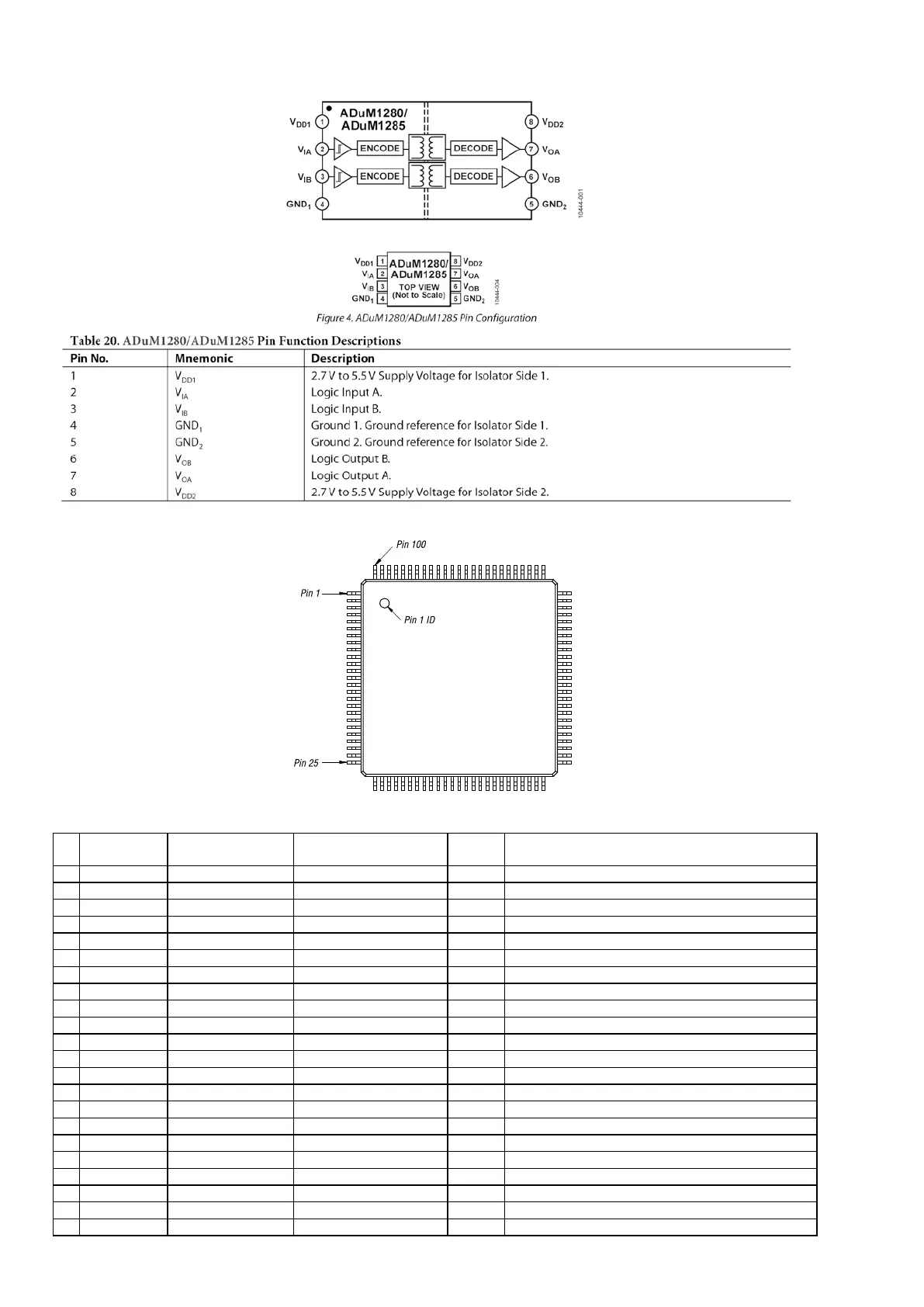

ADuM1285 (DIGITAL : U402, U403, U404)
EPM240T100C5N (DIGITAL : U800)
EPM240T100C5N Terminal Function
Pin
N0.
New Pin/Pad Name Connect Device Direction Detail
1 IO NC - - NC
2 IO NC - - NC
3 IO NC - - NC
4 IO .MODE3. CD MECHA IN PLD_RST(MODE3.)
5 IO .SRDATAO CD MECHA IN SRDATA BE→PLD Control
6 IO .SRCLK CD MECHA IN SRCLK BE→PLD Control
7 IO .DFRST_IN CD MECHA IN DFRST_IN BE→PLD Control
8 IO .MODE2. CD MECHA IN MP3 fs (44.1k,48k:L / 32k:H) Detect
9 VCCIO1 33_VCCIO DA3.3V - Power Supply
10 GNDIO GND DGND - Ground
11 GNDINT GND DGND - Ground
12 IO/GCLK0 .FE_DSD/PCM CD MECHA IN MODE(FE_DSD/PCM)
13 VCCINT 33_VCCIO DA3.3V - Power Supply
14 IO/GCLK1 .BE_DAC_CS CD MECHA IN BE_DAC_CS
15 IO .PDATA0 CD MECHA IN PDATA0
16 IO .PLRCK CD MECHA IN PLRCK
17 IO .PBCK. CD MECHA IN PBCK.
18 IO .DMIX_L CD MECHA IN DMIX_L
19 IO .DMIX_R CD MECHA IN DMIX_R
20 IO .DBCK CD MECHA IN DBCK
21 IO .PMCK CD MECHA IN PMCK
22 TMS .TMS PLD UPDATE IN Test Mode State for JTAG
