Marantz NR1403 - Remote Control Unit Operation

79

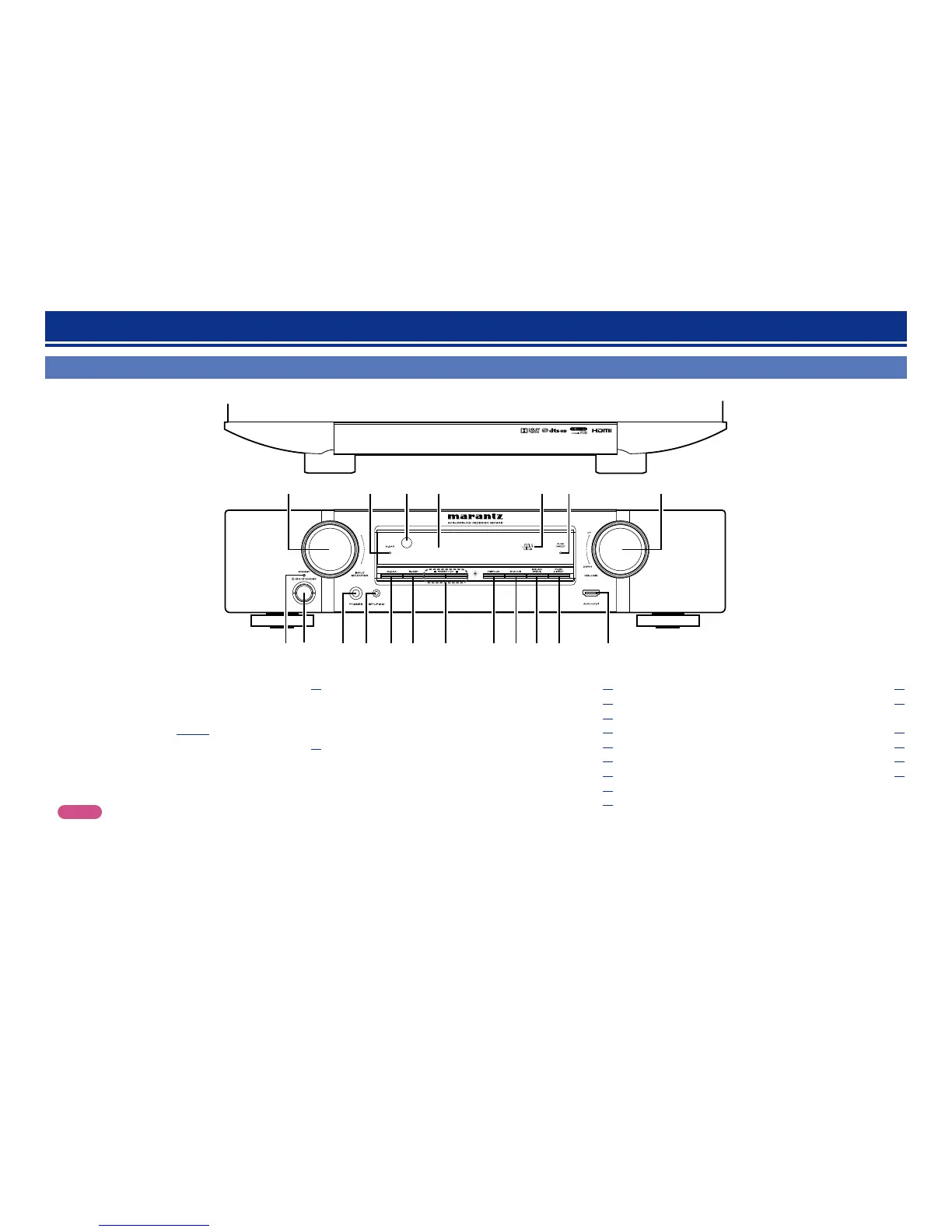

Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
q e r yt u
Q3
w
Q8 Q7
Q4Q9 Q5Q6
oi Q1Q0 Q2
q STANDBY indicator ································································· (28)
GSTANDBY indicator statusH
•Power on : Off
•Normal standby : Red
•When “HDMI Control” (vpage65) is set to “On” : Orange
w Power operation button (X ON/STANDBY) ························· (28)
Turns power to this unit on and off (standby).
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
Q3 VOLUME knob ········································································· (29)
Q4 PURE DIRECT indicator ··························································· (38)
Q5 Master volume indicator
Q6 Display ······················································································ (80)
Q7 Remote control sensor ··························································· (83)
Q8 M-DAX indicator ······································································ (60)
Q9 INPUT SELECTOR knob ·························································· (28)
r SETUP MIC jack ······································································· (22)
t M-DAX button ········································································· (60)
y SLEEP button ··········································································· (50)
u Tuner preset channel buttons (PRESET CH +, –) ·················· (34)
i DISPLAY button ······································································· (76)
o STATUS button ······································································· (77)
Q0 SOUND MODE button ···························································· (38)
Q1 PURE DIRECT button ······························································ (38)
Q2 AUX-HDMI connector ····························································· (10)
Part names and functions
