81

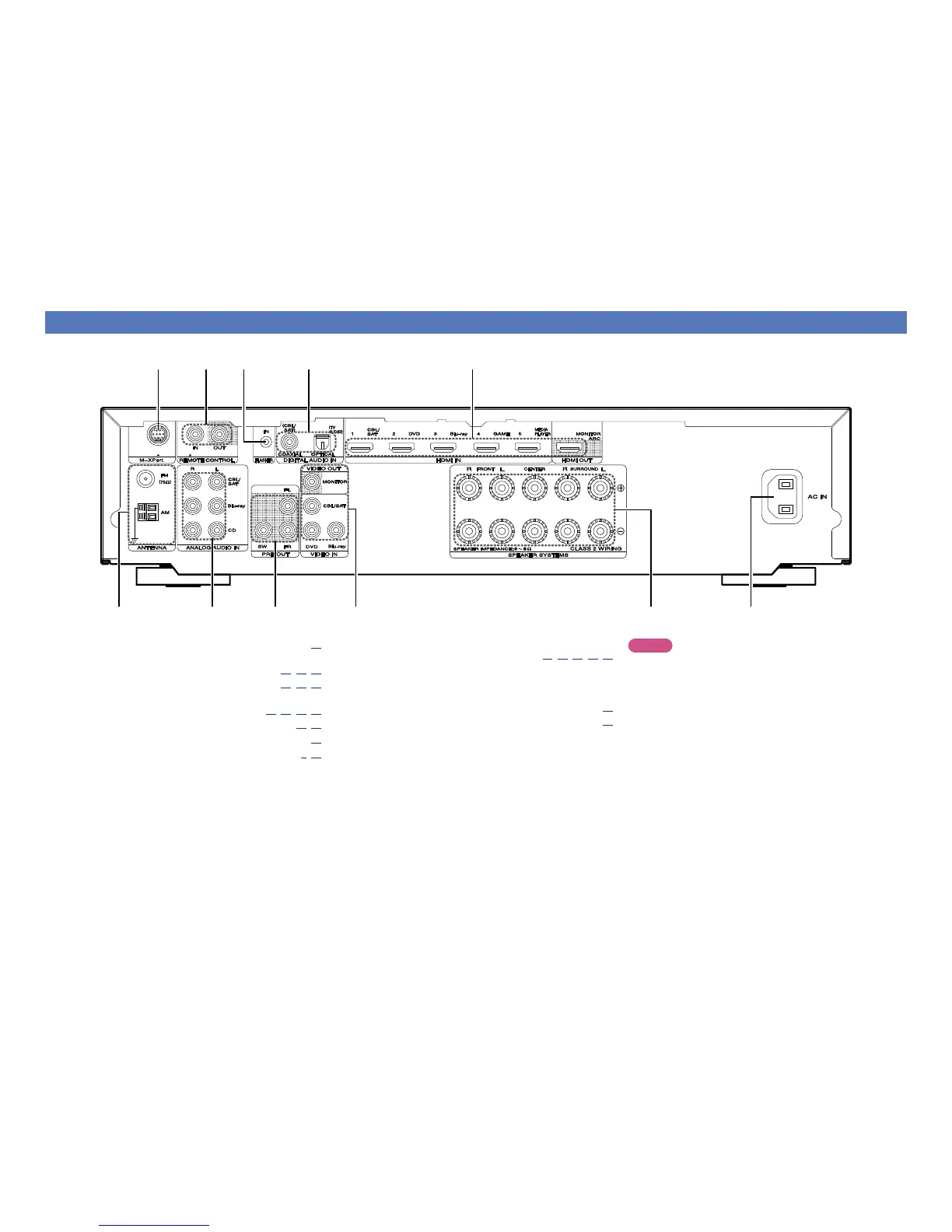

Rear panel
See the page indicated in parentheses ( ).
q w e r t y
i
oQ0Q1 u
q FM/AM antenna terminals (ANTENNA) ································ (18)
w Analog audio connectors
(ANALOG AUDIO IN) ··················································· (14, 16, 17)
e PRE OUT connectors ··················································· (45, 46, 47)
r Video connectors
(VIDEO IN/VIDEO OUT) ········································ (13, 14, 15, 16)
t Speaker terminals (SPEAKER SYSTEMS) ······················· (45, 46)
y AC inlet (AC IN) ········································································ (20)
u HDMI connectors ································································· (9, 10)
i Digital audio connectors
(DIGITAL AUDIO IN) ········································ (13, 14, 15, 16, 17)
o FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q0 REMOTE CONTROL connectors ············································· (48)
Q1 M-XPort connector ·································································· (19)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
