Connecting the speakers

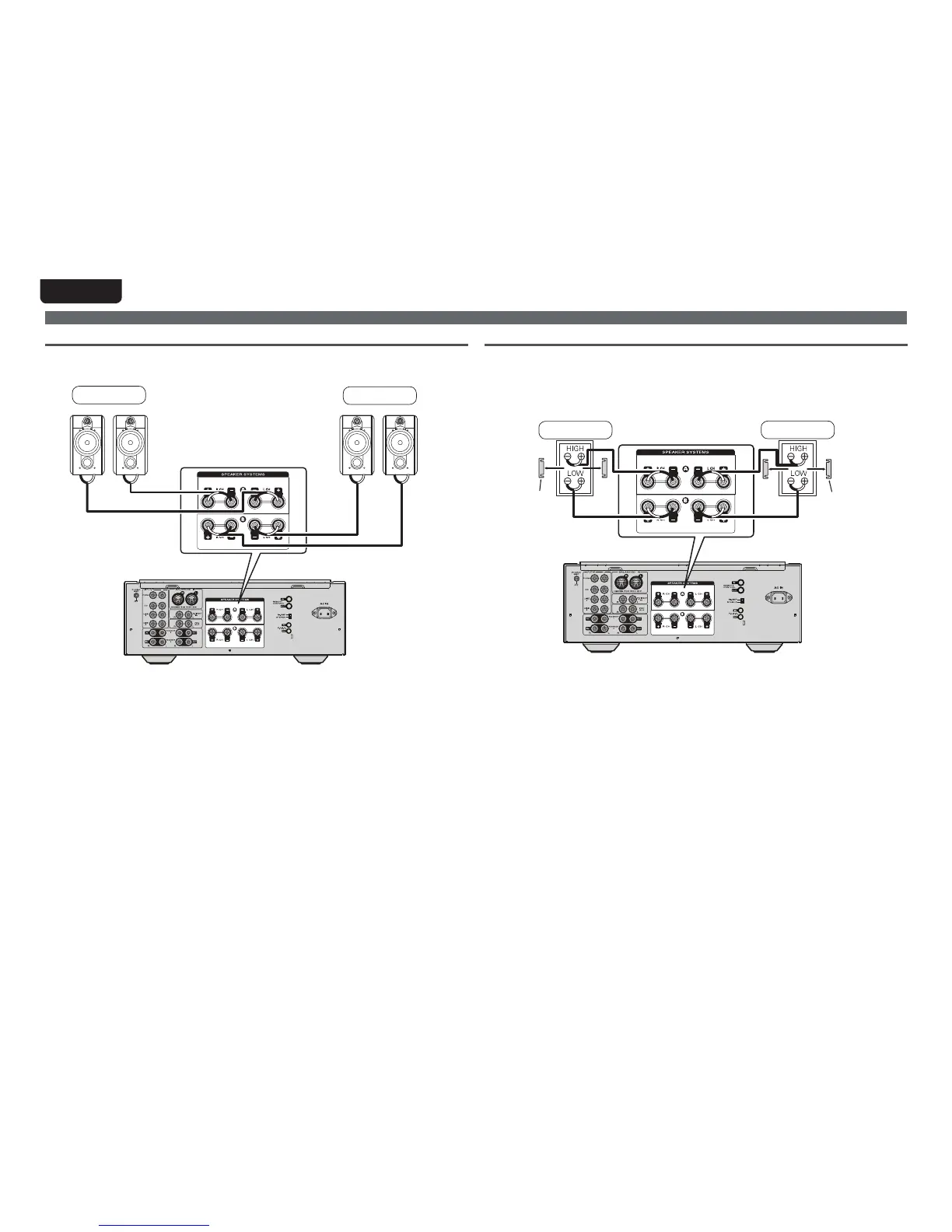

Speaker connections
tThe same signal is output from the SPEAKER A and B terminals.
tWhen only one set of speakers is to be connected, use either the SPEAKER A or B terminals.
3
1 2
3
1 2
wqwq wqwq
(R) (L) (R) (L)
Speakers A
Speakers B
Bi-wiring connection
tWhen bi-wiring with bi-wireable speakers, connect the mid and high range terminals to
SYSTEM (A) (or SYSTEM (B)), the low range terminals to SYSTEM (B) (or SYSTEM (A)).
tThis enables playback with minimal interference between the high-range speaker unit and the
low-range speaker unit.
Remove
shorting bar
Remove
shorting bar
Speaker (L)
Speaker (R)

Marantz PM-11S3 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	5 - 100000 Hz
Input sensitivity	240 mV
Audio output channels	2.0 channels
Peak power per channel	200 W
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.01 %
Dynamic power per channel (8 Ohm)	100 W
XLR in	Yes
Headphone outputs	1
Line inputs (RCA)	2
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Material	Metal
Cooling type	Passive
Product color	Black, Gold
Volume control	Rotary
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	300 W

Weight and Dimensions

Depth	449 mm
Width	440 mm
Height	168 mm
Weight	27000 g
