Marantz PM-11S3 User Manual

9
Getting started Basic operation Troubleshooting Specifications IndexAdvanced connections Advanced operation Explanation terms
ENGLISH
Basic connections

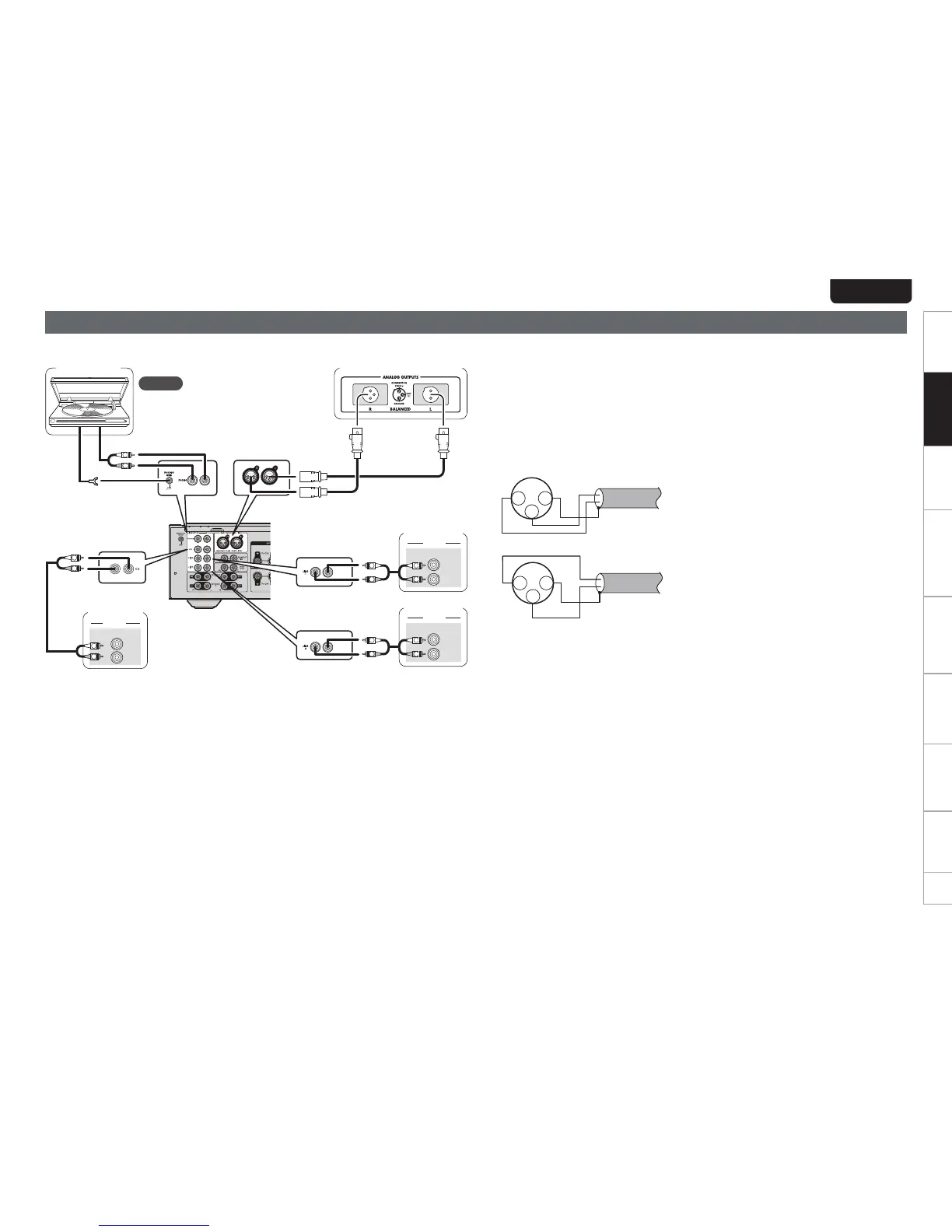

Connecting players
Set phono equalizer switch button by the type of your cartridge to be used MM or MC.
3
1 2
3
1 2
3
1 2
3
1 2
AUDIO OUT
R
L
AUDIO
AUDIO OUT
R
L
AUDIO
AUDIO OUT
R
L
AUDIO
GND
AUDIO
OUT
R
L
R
L
R
L
R
L
R
L
R
L
R
L
Turntable
Connect the ground
wire from your
turntable here.
Super Audio CD player
Tuner
BD player
CD player
n BALANCED Jacks
The BALANCED jacks on this unit are equipped with XLR connectors that are widely used on
professional equipment. Their features are listed below.
tThe 3 pin construction enables the musical signal to be transmitted as a balanced signal, with
little effect from external noise
tThe detachable locking mechanism minimizes connector play and enhances connection
reliability.
The XLR connector for professional use is internally wired in either of the following two
systems.
tUSA system (w PIN=COLD e PIN=HOT)
2 1
3
GND
COLD
HOT
tEuropean system (w PIN=HOT e PIN=COLD)
2 1
3
HOT
GND
COLD
If a product that employs the European system is connected with this unit via a balanced cable,
the reproduced signal may be phase-inverted.
To correct the inversion, connect the one side XLR connector reversing the w PIN and e PIN.
NOTE
tConnecting a ground wire may
produce noise. In this case, do not
make the ground connection.

Marantz PM-11S3 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	5 - 100000 Hz
Input sensitivity	240 mV
Audio output channels	2.0 channels
Peak power per channel	200 W
Signal-to-Noise Ratio (SNR)	96 dB
Total Harmonic Distortion (THD)	0.01 %
Dynamic power per channel (8 Ohm)	100 W
XLR in	Yes
Headphone outputs	1
Line inputs (RCA)	2
Headphone connectivity	6.3 mm
Speakers connectivity type	Clamp terminals
Material	Metal
Cooling type	Passive
Product color	Black, Gold
Volume control	Rotary
Connectivity technology	Wired
Power consumption (standby)	0.3 W
Power consumption (typical)	300 W

Weight and Dimensions

Depth	449 mm
Width	440 mm
Height	168 mm
Weight	27000 g
