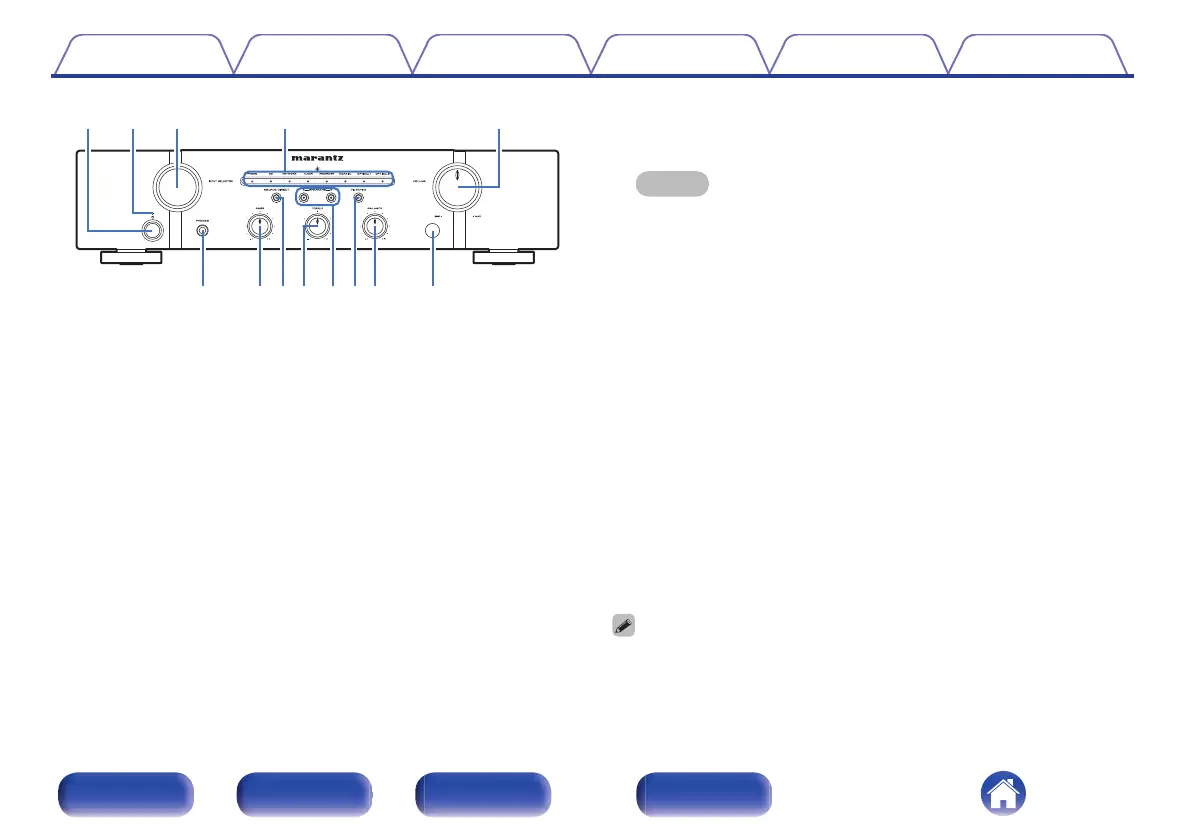

A
Power operation button (X)
This turns the power on/off. (v p. 26)
B
Power indicator
This is lit as follows according to the power status:
0
Power on : Off
0
Standby : Red
0
Power off : Off
C
INPUT SELECTOR knob
This selects the input source. (v p. 27)
D
Input indicators (v p. 27)
E
VOLUME knob
These adjust the volume level. (v p. 27)
F
Headphones jack (PHONES)
Used to connect headphones.
Turn off speaker output when using headphones. (v p. 27)
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
G
BASS control knob
This setting adjusts the volume level for the bass. (v p. 28)
H
SOURCE DIRECT button/indicator
This turns source direct mode on/off. (v p. 28)
I
TREBLE control knob
This setting adjusts the volume level for the treble. (v p. 28)
J
Speaker switching buttons/indicators (SPEAKERS A/B)
These select the speaker for audio output. (v p. 27)
K
FILTER 1・2 button/indicator
Switches the filter characteristics when digital audio is input.
(v p. 29)
L
BALANCE control knob
This adjusts the balance of the volume output from the left and right
speakers. (v p. 28)
M
Remote control sensor
This receives signals from the remote control unit. (v p. 5)
0
7, 9 and b can be adjusted when 8 is off (Source direct mode is off).
