Marantz PM8003 - 1. TECHNICAL SPECIFICATIONS

1
Power output
(20 Hz – 20 kHz simultaneous drive of both channels)
8 Ω load
..............................................................70 W x 2
4 Ω load
...........................................................100 W x 2)
Total harmonic distortion
(20 Hz – 20 kHz simultaneous drive of both channels, 8 Ω load)
.........................................................................0.02 %
Output band width (8 Ω load, 0.05 %)
............................................................. 5 Hz – 60 kHz
Frequency response (CD, 1 W, 8 Ω load)
.................................................5 Hz – 100 kHz ±3 dB
Dumping factor (8 Ω load, 20 Hz – 20 kHz)
......................100
Input sensitivity/Input impedance
PHONO (MM)
................................................2 mV/47 kΩ
CD, LINE, TUNER, AUX/DVD, RECORDER
.............................................................200 mV/20 kΩ
MAIN IN
.........................................................1.6 V/20 kΩ
Output voltage/Output impedance
PRE OUT
.......................................................1.6 V/600 Ω
Maximum allowable PHONO input level (1 kHz)
MM
....................................................................... 100 mV
RIAA deviation (20 Hz ~ 20 kHz)
......................... ±0.5 dB
S/N (IHF-A, 1 W, 8 Ω load)
PHONO (MM))
........................................................ 87 dB
CD, LINE, TUNER, AUX/DVD, RECORDER
........... 90 dB
POWER AMP DIRECT IN
..................................... 106 dB
Tone control
Bass (50 Hz)
......................................................... ±10 dB
Treble (20 kHz)
...................................................... ±10 dB
Power requirement
[F] .....................................................AC 100 V, 50/60 Hz
[N] ..........................................................AC 230 V, 50 Hz
[U] ..........................................................AC 120 V, 60 Hz
Power consumption
EN60065/J60065/UL60065
....................................200 W
Standby power consumption
.........................................0.3 W
Accessories
Remote controller (RC003PM)........................................1
AAA batteries
..................................................................2
Detachable AC power cable
............................................1
Maximum outer dimensions (Amplifier)
Width
.............................................17-5/16 inch (440mm)
Height
........................................... 5-1/8 inch (129.8mm)
Depth
................................................... 15 inch (379mm)
Weight (Amplifier)
................................ 26.5 lbs (12.0kg)
1. TECHNICAL SPECIFICATIONS
DIMENSIONS
14
NAMES AND
FUNCTIONS
BASIC
CONNECTIONS
BASIC
OPERATION
ADVANCED
CONNECTIONS
REMOTE CONTROLLER
OPERATION
TROUBLESHOOTING
OTHERSOTHERS
ENGLISH
OTHERS
SPECIFICATIONS & DIMENSIONAL DRAWINGS
Power output (20Hz – 20kHz simultaneous drive
of both channels)
....................................70W x 2 (8Ω load)
..................................100W x 2 (4Ω load)
Total harmonic distortion (20Hz – 20kHz
simultaneous drive of both channels, 8Ω load)
........................................................ 0.02%
Output band width (8Ω load, 0.05%)
......
.........................................5Hz – 60kHz
Frequency response (CD, 1W, 8Ω load)
................................. 5Hz – 100kHz ±3dB
Dumping factor (8Ω load, 20Hz – 20kHz) ......100
Input sensitivity/Input impedance
PHONO (MM) ............................... 2mV/47kΩ
CD, LINE, TUNER, AUX/DVD, RECORDER
............................................ 200mV/20kΩ
POWER AND DIRECT IN ..............1.6V/
20kΩ
Output voltage/Output impedance
PRE OUT ........................................1.6V/600Ω
Maximum allowable PHONO input level (1kHz)
MM ......................................................100mV
RIAA deviation (20Hz ~ 20kHz) ........ ±0.5dB
S/N (IHF-A, 1W, 8Ω load)
PHONO (MM) ......................................... 87dB
CD, LINE, TUNER, AUX/DVD, RECORDER
............................................
.............. 90dB
POWER AMP DIRECT IN ..................... 106dB
Tone control
Bass (50Hz) ......................................... ±10dB
Treble (20kHz) .................................... ±10dB
Power requirement ....................... AC 120V 60Hz
Power consumption
(UL60065) .............................................. 200W
Standby power consumption ..................... 0.3W
Accessories
Remote controller
.........................................1
AAA batteries ................................................2
Detachable AC power cable ........................1
Maximum outer dimensions (Amplifier)
Width .......................... 17-5/16 inch (440mm)
Height ......................... 5-1/8 inch (129.8mm)
Depth ................................. 15 inch (379mm)
Weight (Amplifier) .............. 26.5 lbs (12.0kg)
Specifications subject to change without prior
notice.
(unit : inch (mm))

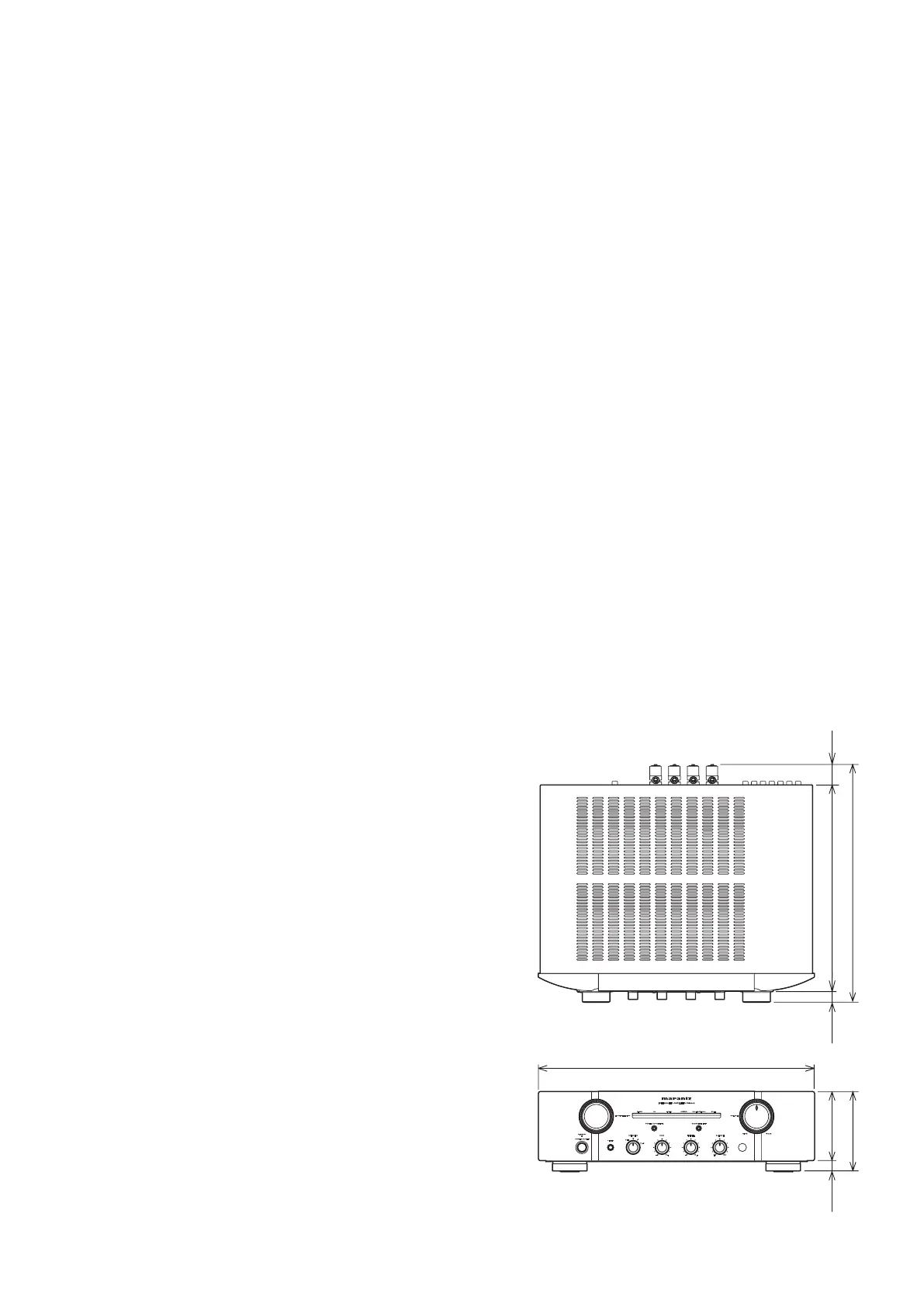

INTEGRATED AMPLIFIER PM8003
15 (379)
13-3/4 (328.5)
3/4
(17.5)
5-1/8 (129.8)
4-1/2 (112)
17-5/16 (440)
1-3/8
(33)
41/64
(16.3)
