Si I 9031 Features
PanelLink Cinema Receiver
Industry-Standard
Compliance
• HDMI 1.0
• DVI 1.0
• EIA/CEA-861B
• HDCP 1.1
Digital Video Output
• Dual integrated PanelLink
®
cores
• Supports DTV (480i/576i/480p/
576p/720p/1080i/1080p) and PC
(VGA/XGA/SXGA/WSXGA) resolutions
• Flexible digital video interface
- 24-bit RGB/YCbCr 4:4:4
- 16/20/24-bit YCbCr 4:2:2
- 8/10/12-bit YCbCr 4:2:2 (ITU-R BT.656)
- 12-bit digital media interface
• Analog RGB and YPbPr output
- Integrated 10-bit DAC
- Separate or composite syncs
(sync on Y/G)
• Integrated RGB
<
—
> CbCr color space
conversion
• 4:2:2
<
—
> 4:4:4 converter
Digital Audio Output
• Industry-standard S/PDIF and I
2
S output
• Supports high-end audio including
DVD-Audio
- 2-ch. 32-192kHz or
- 8-ch. 32-96kHz
• Programmable I
2
S output supports
numerous low-cost audio DACs
• Supports IEC60958 2-channel PCM
• Capable of carrying IEC61937 compressed
audio (Dolby Digital, DTS, etc.)
Content Protection
• Integrated HDCP cipher engine
• Pre-programmed HDCP keys
- Simplify manufacturing process
- Most secure solution available
- Lower system, manufacturing costs
• Supports HDCP repeater capability
• Decrypts both video and audio
System Operation
• Register-programmable via slave I
2
C
interface
• Auto video mode simplifies design
• Auto audio mode allows more robust
system
• Flexible interrupt registers with
interrupt pin
Power Management
• 1.8V core provides low-power operation
• Flexible power-down modes
Silicon Image’s
SiI 9031 Starter Kit
(CP9031HDMI)
Contents include:
Hardware
• SiI 9031 Receiver Daughter Board
• HDMI to HDMI cable
Software
• HDMIGear Receiver Software Tool
Documentation
• User’s Guide
• Schematics
• Bill of Materials (BOM)

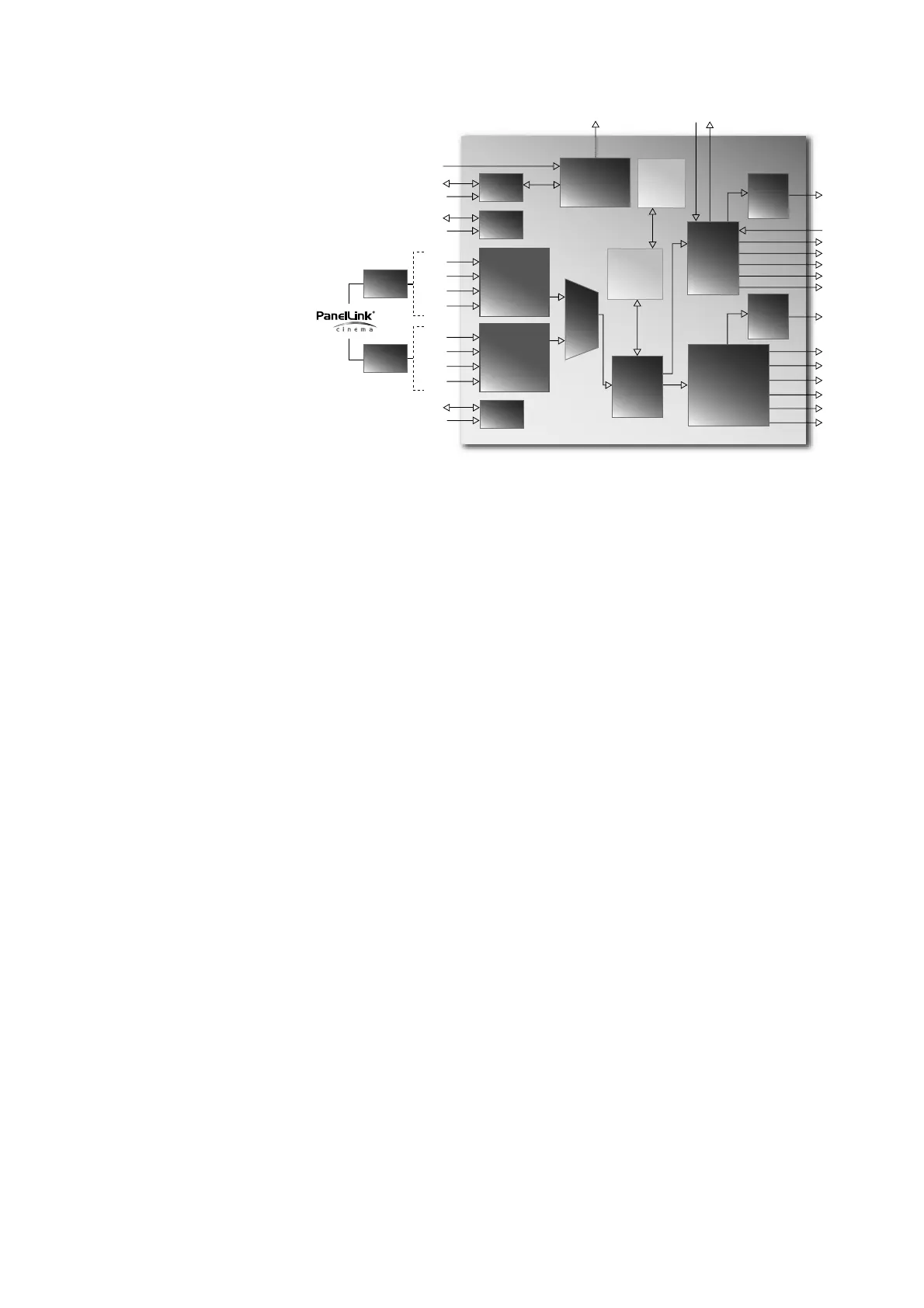

Q[23:0]
VSYNC
HSYNC
ODCK
DE
SCDT
Tx0 ±
Tx1±
Tx2±
TxC±
INT
I
2
C
Registers
and
Configuration
Logic
Si I 9031
PanelLink
TMDS
Core 0
RGB/YPbPr
DAC
HDCP
Keys
E
2
PROM
RGB <
—
> YCbCr
Color Space
Converter/
4:2:2 <
—
> 4:4:4
Converter
Tx0 ±
Tx1±
Tx2±
TxC±
RESET#
CSDA
CSCL
DSDA0
DSCL0
I
2
C
DSDA1
DSCL1
I
2
C
XOR
Mask
HDCP
Decryption
Engine
PanelLink
TMDS
Core 1
MCLKOUT
MCLK
Gen
MCLKIN
SPDIF
SD[3:0]
SCK
WS
MUTE OUT
XTAL
Port 1
Port 0
Digital
MUX
Audio
Decode
Logic
IC98 : SII9031CTU7
