Marantz SR5003 Service Manual

1
FM TUNER SECTION
Frequency Range
.................................76.0 - 90.0 MHz [ /F ]
..............................................87.5 - 108.0 MHz [ /K/N/U ]
Usable Sensitivity
...................................IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio
.........................Mono/Stereo 75/70 dB
Distortion
..........................................Mono/Stereo 0.2/0.3 %
Stereo Separation
.............................................. 1 kHz 45 dB
Alternate Channel Selectivity
......± 300 kHz 60 dB [ /F/K/N ]
......................................................± 400 kHz 60 dB [ /U ]
Image Rejection
..............................98 MHz 70 dB [ /F/K/N ]
....................................................... 98.1 MHz 70 dB [ /U ]
Tuner Output Level
......1 kHz, ± 40 kHz Dev 500 mV [ /K/N ]
............................... 1 kHz, ± 75 kHz Dev 800 mV [ /F/U ]
AM TUNER SECTION
Frequency Range
...........................531 - 1602 kHz [ /F/K/N ]
.........................................................520 - 1710 kHz [ /U ]
Signal to Noise Ratio
.................................................... 50 dB
Usable Sensitivity
..........................Loop 400 µV/m [ /F/N/U ]
Distortion
........................................400Hz, 30 % Mod. 0.5 %
Selectivity
...................................... ± 18 kHz 70 dB [ /F/K/N ]
........................................................ ± 20 kHz 70 dB [ /U ]
HDMI SECTION
Version
.........................................................1.3a [INPUT]
................................................................1.3a [OUTPUT]
AUDIO SECTION
Power Output (20 Hz - 20 kHz/THD=0.08 %)
Front L&R
..................................................8 ohms 100 W/Ch
Center
........................................................8 ohms 100 W/Ch
Surround L&R
...........................................8 ohms 100 W/Ch
Surround Back L&R
..................................8 ohms 100 W/Ch
Front L&R
..................................................6 ohms 125 W/Ch
Center
........................................................6 ohms 125 W/Ch
Surround L&R
...........................................6 ohms 125 W/Ch
Surround Back L&R
..................................6 ohms 125 W/Ch
Input Sensitivity/Impedance
.....................180 mV/47 kohms
Signal to Noise Ratio
Analog Input / Pure Direct
.................................... 105 dB
Frequency Response
Analog Input / Pure Direct
..........8 Hz - 100 kHz (± 3 dB)
Digital Input / 96 kHz PCM
...........8 Hz - 45 kHz (± 3 dB)
VIDEO SECTION
Television Format
.................................................NTSC/PAL
Input Level/Impedance
................................1 Vp-p/75 ohms
Output Level/Impedance..............................1 Vp-p/75 ohms
Video Frequency Response
..............5 Hz to 8 MHz (- 1 dB)
Video Frequency (Component)
........5 Hz to 80 MHz (- 1 dB)
S/N
............................................................................... 60 dB
GENERAL
Power Requirement
........................ AC 100 V 50/60 Hz [ /F ]
....................................................... AC 220 V 50 Hz [ /K ]
..................................................AC 230 V 50/60 Hz [ /N ]
....................................................... AC 120 V 60 Hz [ /U ]
Power Consumption
.................................................... 600 W
Standby Power Consumption........................ (Normal) 0.7 W
..............................................................(Economy) 0.4 W
Weight
....................................................................... 13.2 kg
ACCESSORIES
Remote Control Unit RC003SR
...........................................1
AAA-size batteries
...............................................................2
Microphone
..........................................................................1
FM Antenna
..........................................................................1
AM Loop Antenna
................................................................1
AC cable
...............................................................................1
1. TECHNICAL SPECIFICATIONS

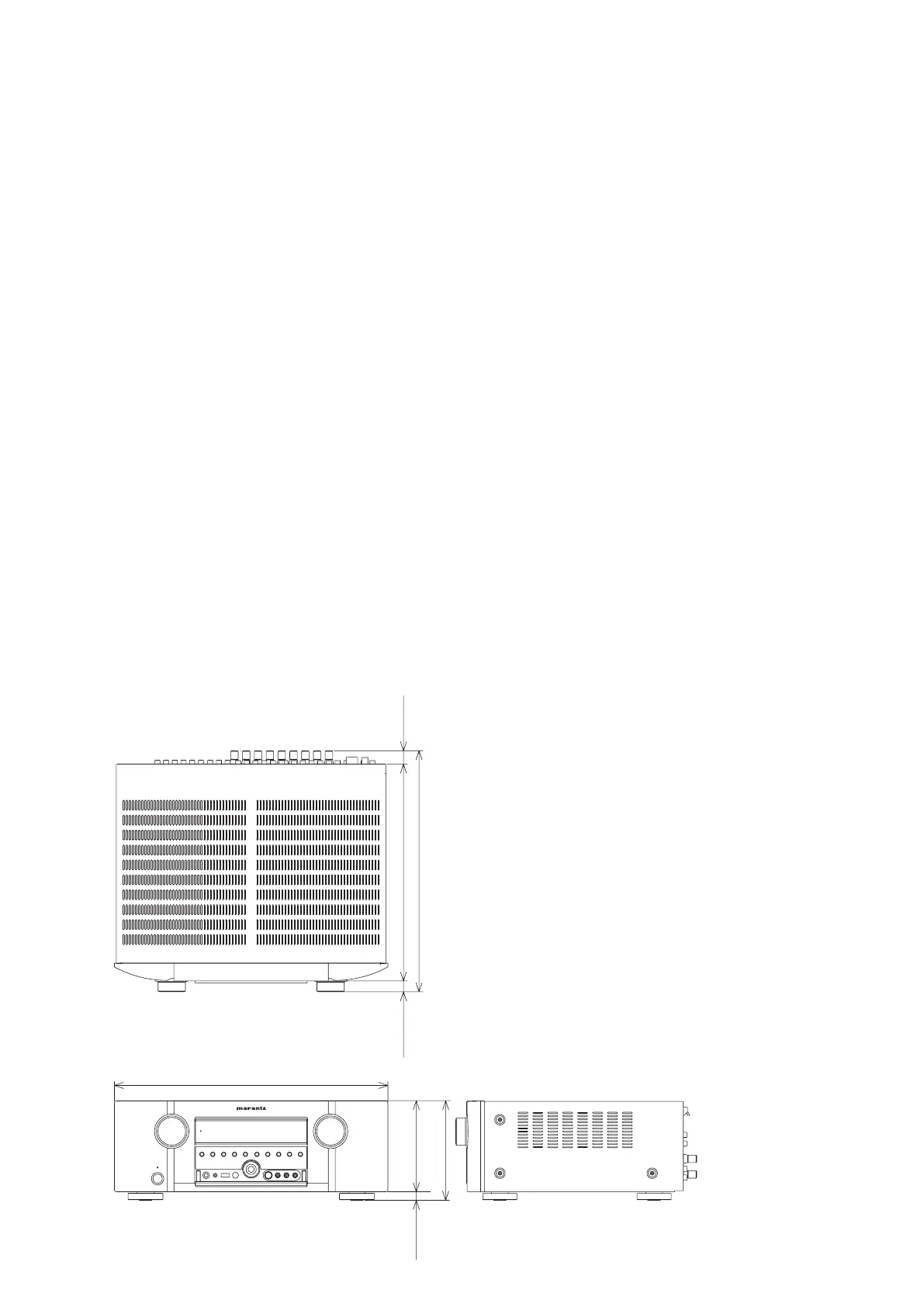

DIMENSIONS
5-3/4 in
(146.5 mm)
9/16 in
(14 mm)
6-5/16 in
(160.5 mm)
17-3/8 in (440.0 mm)
15-5/16 in (388 mm)
11/16 in
(17.5 mm)
13-11/16 in (348.5 mm)
7/8 in (22 mm)

Marantz SR5003 Specifications

General

Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs	2 Optical, 2 Coaxial
Analog Audio Inputs	6
Response Bandwidth	10 Hz - 100 kHz
Signal-To-Noise Ratio	105 dB
Total Harmonic Distortion	0.08%
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Dolby Decoding	Dolby Digital Plus, Dolby TrueHD
DTS Decoding	DTS-HD Master Audio
Input Impedance	47 kOhm
Video Conversion	Analog to HDMI
Audio Decoders	Dolby TrueHD, DTS-HD Master Audio
Power Output	90 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD)
