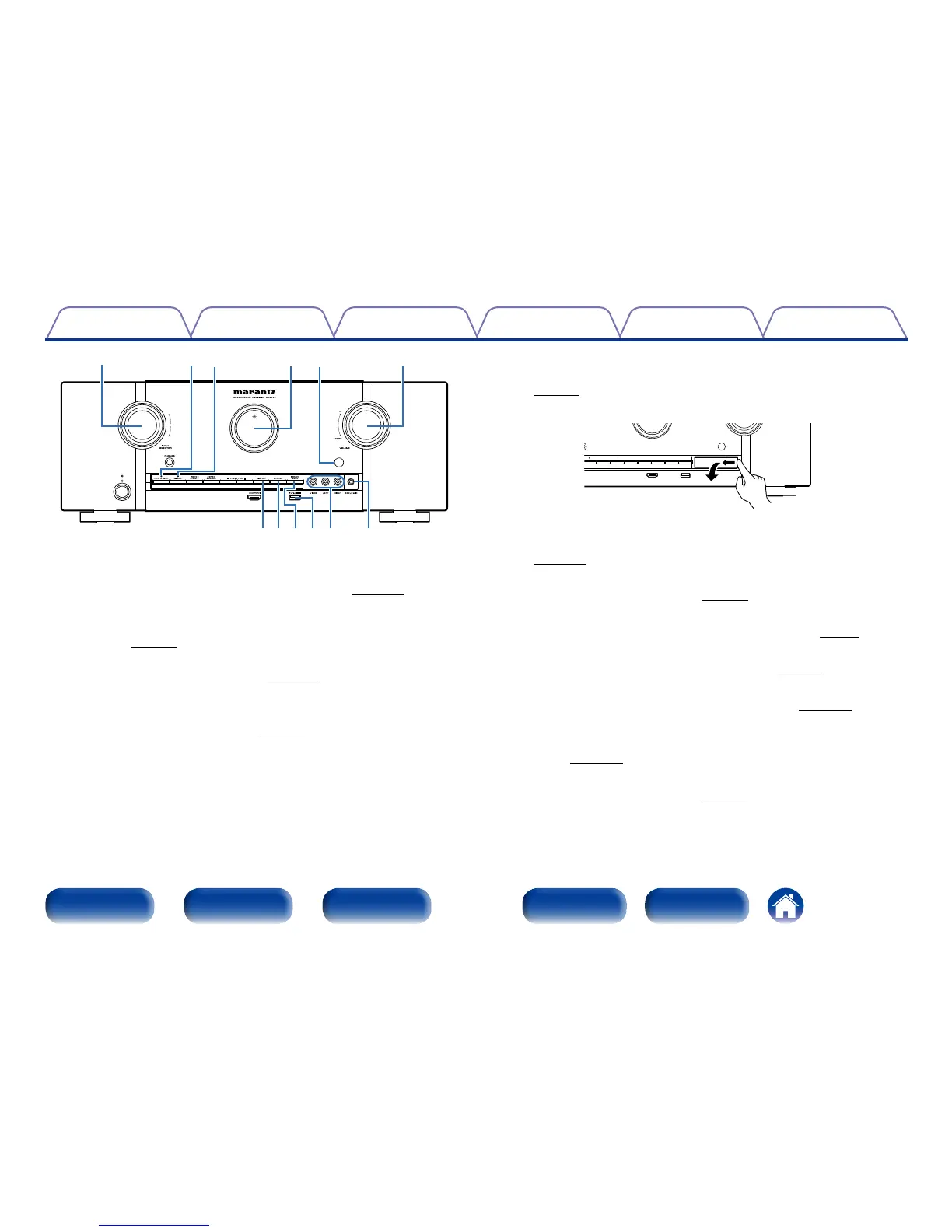

Q0 DISPLAY button
This switches the display mode of the display (vpage186).
Q1 STATUS button
Each press of this switches the status information that is shown on the
display (vpage57).
Q2 SOUND MODE button
This switches the sound mode (vpage107).
Q3 USB port
Used to connect USB storages (such as USB memory devices) and the
USB cable supplied with iPod (vpage43).
Q4 AUX1 INPUT connectors
Used to connect devices such as a video camcorder or game console
(vpage40).
Remove the cap covering the connectors when you want to use them.
Q5 SETUP MIC jack
Used to connect the supplied Setup and measurement microphone
(vpage166).
Q6 VOLUME knob
This adjusts the volume level (vpage54).
Q7 Remote control sensor
This receives signals from the remote control unit (vpage8).
Q8 Display
This displays various pieces of information (vpage15).
Q9 M-DAX indicator
This lights when the M-DAX mode is selected (vpage147).
W0 PURE DIRECT indicator
This lights when the PURE DIRECT mode is selected as the sound
mode (vpage108).
W1 INPUT SELECTOR knob
This selects the input source (vpage53).
