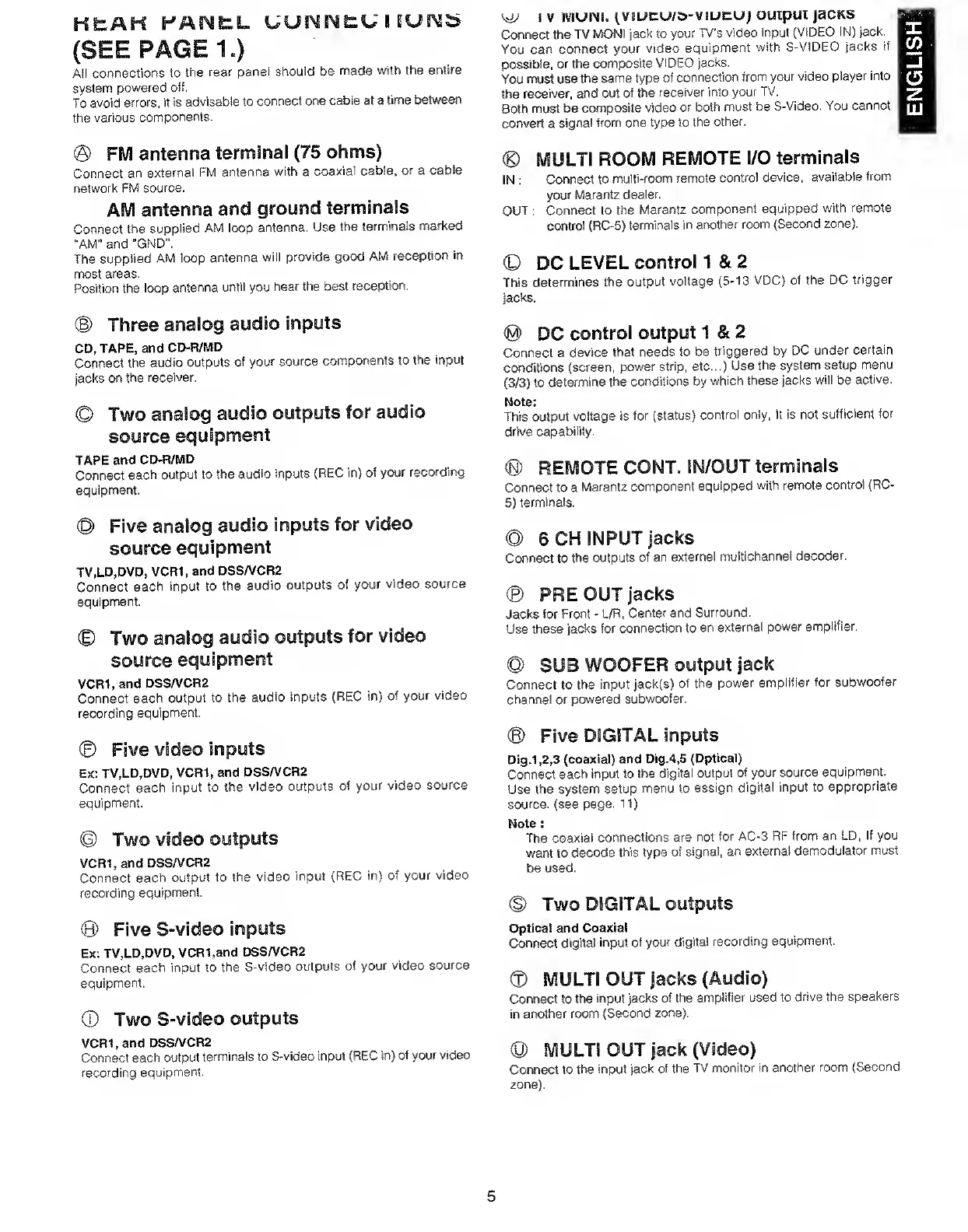

Marantz SR7000 - Rear Panel Connections; Antenna and Ground Terminals; Analog Audio and Video I;O; S-Video and Digital I;O Ports

All connections to the rear pane! should be made with the entire
system powered off.
To avoid errors, it is advisable to connect one cable at a time between
the various components.
® FM antenna terminal (75 ohms)
Connect an external FM antenna with a coaxial cable, or a cable
network FM source.
AIVI antenna and ground terminals
Connect the supplied AM loop antenna. Use the terminals marked
“AM" and "GND".
The supplied AM loop antenna will provide good AM reception in
most areas.
Position the loop antenna until you hear the best reception.
(D Three analog audio inputs
CD, TAPE, and CD-R/MD
Connect the audio outputs of your source components to the input
jacks on the receiver.
© Two analog audio outputs for audio
source equipment
TAPE and CD-R/MD
Connect each output to the audio inputs {REC in) of your recording
equipment.
© Five analog audio inputs for video
source equipment
TV,LD,DVD, VCR1, and DSS/VCR2
Connect each input to the audio outputs of your video source
equipment.
© Two analog audio outputs for video
source equipment
VCR1, and DSS/VCR2
Connect each output to the audio inputs (REC in) of your video
recording equipment,
© Five video inputs
Ex: TV,LD,DVD, VCR1, and DSS/VCR2
Connect each input to the video outputs of your video source
equipment.
© Two video outputs
VCR1,and DSSA/CR2
Connect each output to the video input (REC in) of your video
recording equipment.
@ Five S"Video inputs
Ex: TV,LD,DVD, VCR1,and DSSA/CR2
Connect each input to the S-video outputs of your video source
equipment,
© Two S-video outputs
VCRI.and DSSA/CR2
Connect each output terminals to S-video input (REC In) of your video
recording equipment.
i V iviuiMi. ivsucu/o-viucu; ouipux jacKs
Ccmnect the TV MONl jack to your TV's video input (VIDEO IN) jack.
You can connect your video equipment with S-VIDEO jacks if
possible, or the composite VIDEO jacks.
You must use the same type of connection from your video player into
me receiver, and out of the receiver into your TV,
Both must be composite video or both must be S-Video, You cannot
convert a signal from one type to the other,
® MULTI ROOM REMOTE I/O terminals
IN : Connect to multi-room remote control device, available from
your Marantz dealer,
OUT : Connect to the Marantz component equipped with remote
contrd (RC-5) terminals in another room (Second zone),
© DC LEVEL control 1 & 2
This determines the output voltage (5-13 VDC) of the DC trigger
jacks.
(0) DC control output 1 & 2
Connect a device that needs to be triggered by DC under certain
conditions (screen, power strip, etc...) Use the system setup menu
(3/3) to determine the conditions by which these jacks will be active.
Note:
This output voltage is for (status) control only, it is not sufficient for
drive capability.
® REMOTE CONT. IN/OUT terminals
Connect to a Marantz component equipped with remote control (RC-
5) terminals.
© 6 CH INPUT jacks
Connect to the outputs of an external multichannel decoder.
© PRE OUT jacks
Jacks for Front - L/R. Center and Surround.
Use these jacks for connection to an external power amplifier.
@ SUB WOOFER output jack
Connect to the input jack(s) of the power amplifier for subwoofer
channel or powered subwoofer,
® Five DIGITAL inputs
Dig.1,2,3 (coaxial) and Dig.4,5 (Optical)
Connect each input to the digital output of your source equipment.
Use the system setup menu to assign digital input to appropriate
source, (see page. 11)
Note:
The coaxial connections are not for AC-3 RF from an LD, if you
want to decode this type of signal, an external demodulator must
be used.
© Two DIGITAL outputs
Optical and Coaxial
Connect digital input of your digital recording equipment.
® MULTI OUT jacks (Audio)
Connect to the input jacks of the amplifier used to drive the speakers
in another room (Second zone).
© MULTI OUT jack (Video)
Connect to the input jack of the TV monitor in another room (Second
zone).
5
