Marantz SR7000 - Remote Control Bus Connections; System Remote Control Setup; Connection for a Subwoofer; Subwoofer Speaker and Amplifier Connection

ncmvy 1wv./i’t • u»t^o i
This unit is equipped with a remote control function.
By connecting this unit’s remote control jacks to a Marantz CD player
or tape deck equipped with remote control {RC-5) jacks, it allows
system remote control to operate.
Connect RC-5 OUT jack of SR7000 to REMOTE CONT. IN of Other
Marantz equipment, i.e, CD player or Cassette deck, by using an RCA
pin cable.
Note:
If a component equipped with remote control (RC-5) jacks has an
INT/EXT switch on the rear panel, set the switch to EXT \ft^en using
the system control function.
(Connection example)
SR7000 rear panel
or MA500 rear panel CD player rear panel Tape deck panel
the SR7000 through Marantz remote control
1. If you connect the MA500 power amplifier to the SR7000. set the
Bus System Selector switch of the MA500 to "System 2”,
Now the MA5(X) can be turned ON / OFF in synchronism with the
power ON / OFF of the SR7000,
Notes:
• Be sure to connect the remote control
hM.<; hAfnrp the nrncedure
above.

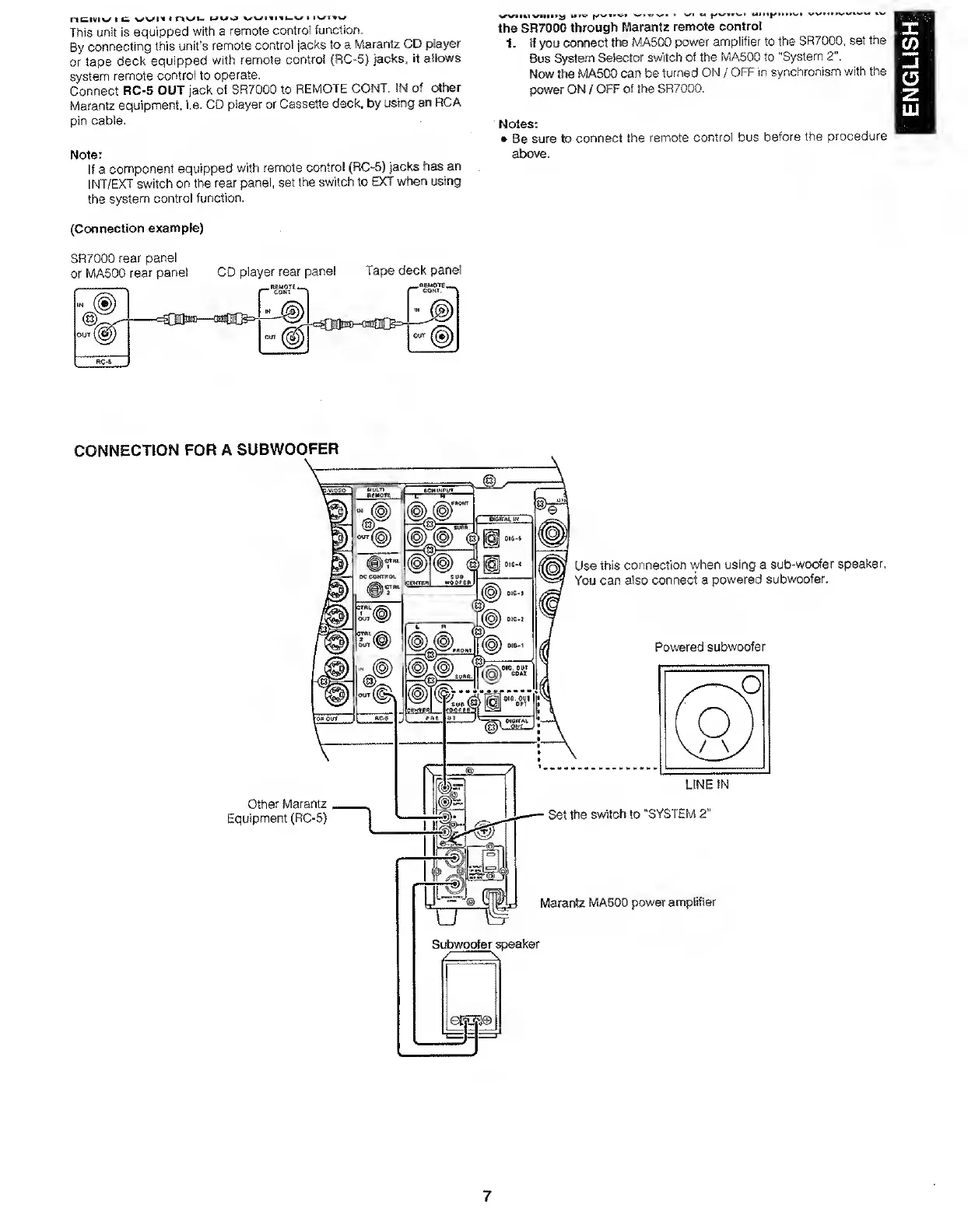

CONNECTION FOR A SUBWOOFER
7
ENGLISH
