Marantz SR8300 - Technical Specifications; Dimension

53
ENGLISH
TECHNICAL SPECIFICATIONS
FM TUNER SECTION
Frequency Range .................................... 87.5 - 108.0 MHz
Usable Sensitivity ................................ IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio ....................... Mono/Stereo 76/72 dB
Distortion ........................................ Mono/Stereo 0.2/0.3 %
Stereo Separation ........................................... 1 kHz 45 dB
Alternate Channel Selectivity ................... ± 300 kHz 60 dB
Image Rejection ........................................... 98 MHz 70 dB
Tuner Output Level ................ 1 kHz, ± 75 kHz Dev 800 mV
AM TUNER SECTION
Frequency Range .................................152 - 282 kHz (LW)
531 - 1602 kHz (MW)
Signal to Noise Ratio ................................................. 50 dB
Usable Sensitivity ............................................ Loop 400µV
Distortion ...................................... 1 kHz, 30 % Mod. 0.5 %
Selectivity ................................................... ± 20 kHz 70 dB
AUDIO SECTION
Power Output (20 Hz - 20 kHz/THD=0.08%)
Front L&R ............................................. 8 ohms 105 W / Ch
Center ................................................... 8 ohms 105 W / Ch
Surround L&R ....................................... 8 ohms 105 W / Ch
Surround Back ...................................... 8 ohms 105 W / Ch
Front L&R ............................................. 6 ohms 130 W / Ch
Center ................................................... 6 ohms 130 W / Ch
Surround L&R ....................................... 6 ohms 130 W / Ch
Surround Back ...................................... 6 ohms 130 W / Ch
Input Sensitivity/Impedance .................. 168mV/ 47 Kohms
Signal to Noise Ratio(Analog Input / Source Direct) ..... 105 dB
Frequency Response (Analog Input / Source Direct)
................................................. 8 Hz - 100 kHz (± 3 dB)
(Digital Input / 96 kHz PCM) ... 8 Hz - 45 kHz (± 3 dB)
VIDEO
Television Format .............................................. NTSC/PAL
Input Level/Impedance .............................. 1 Vp-p/75 ohms
Output Level/Impedance ........................... 1 Vp-p/75 ohms
Video Frequency Response ......... 5 Hz to 10 MHz (– 3 dB)
Component Video Frequency Response .. 5 Hz to 50 MHz (– 3 dB)
S/N ........................................................................... 60 dB
GENERAL
Power Requirement ................................... AC 230 V 50 Hz
Power Consumption ................................................. 400 W
Weight .................................................................... 19.3 Kg
ACCESSORIES
Remote Control Unit RC3200A ......................................... 1
AA-size batteries .............................................................. 3
FM Antenna ....................................................................... 1
AM Loop Antenna .............................................................. 1
RS232C Cable .................................................................. 1
Specifications subject to change without prior notice.

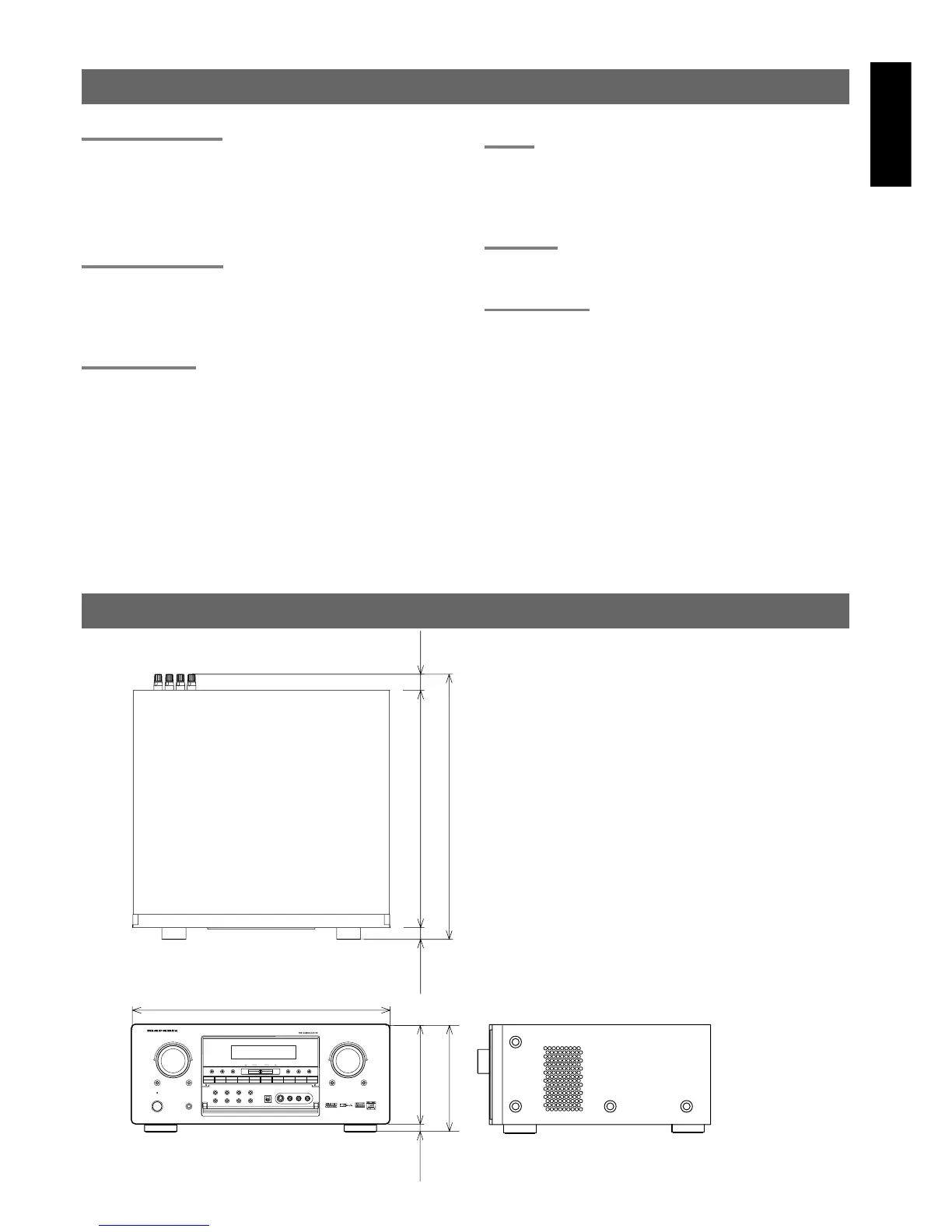

DIMENSION
25 mm
435 mm
480 mm
AV SURROUND RECEIVER SR8300
POWER ON/OFF
STANDBY
VOLUME
UPDOWN
PHONES
SELECT MUTE ATTENTER
SELECTOR
NIGHT
7.1CH-IN DSS TAPE CD-R TUNERCDDVD TV VCR 1 VCR2/DVD-R
MULTI-SPK
MULTI ROOM
AUX1S-DIRECT
AUX2A/D
SLEEP
T-MODE
TUNINGDOWN UP
P-SCANF/P
AUX1 INPUT
R AUDIO L VIDEO S-VIDEO DIGITAL
MEMOCLEARDISPLAY
R
184 mm
16.3 mm 167.7 mm
440 mm
20 mm
