Product Description

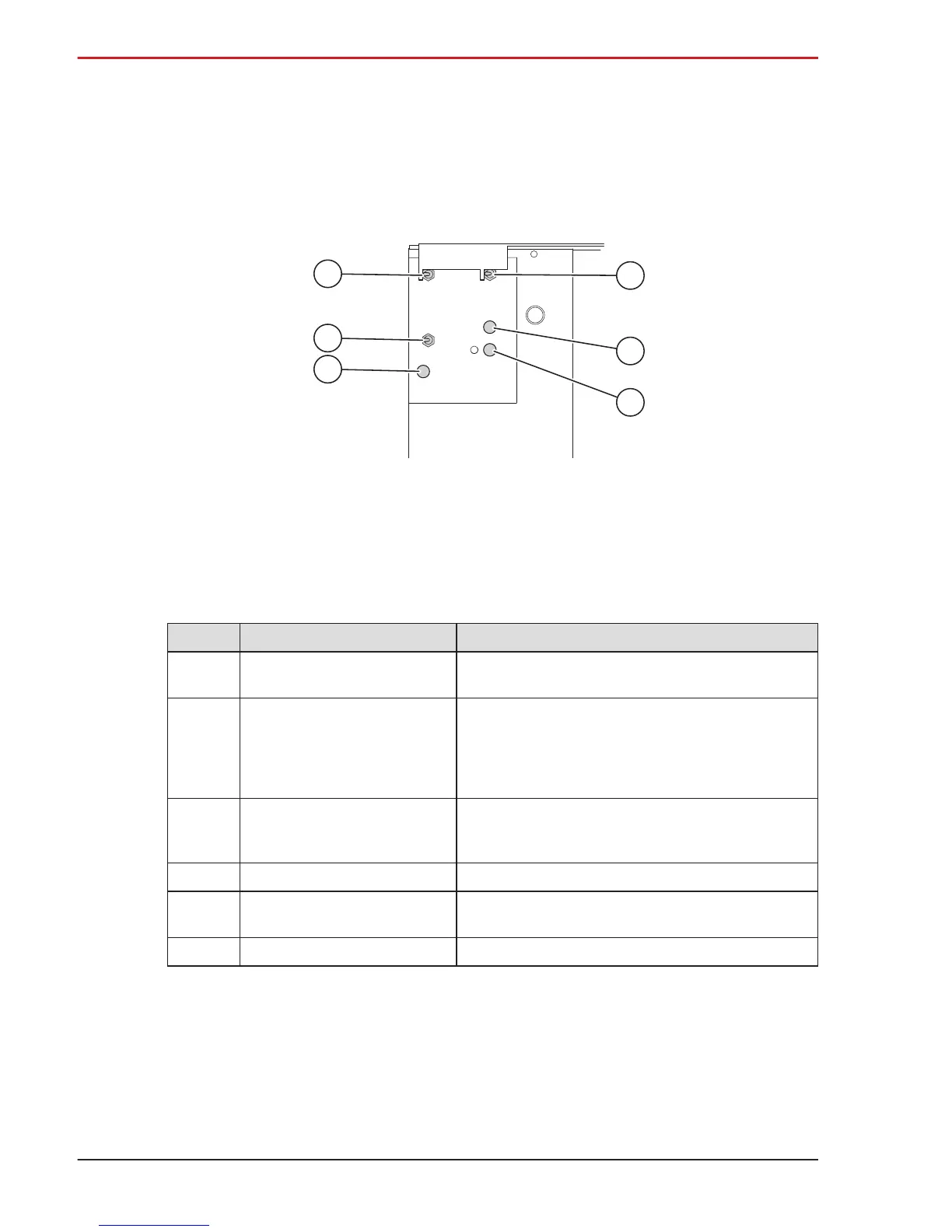

3.5 Controls
A
B
C
D
E
F
Pos Part Description
A Chain pusher switch
ON: starts the chain feed, so that the chain moves in a forward
direction. OFF: Stops the chain feed.
B Grinding speed knob
Sets the grinding speed.
Low speed: Grinds the chain at low speed in a pulsing motion to
avoid that the chain gets burned.
High speed: grinds the chain at a high speed without the pulsing
motion.
C Emergency stop button
Shuts off the power and stops the machine. The emergency stop
button is used to turn off the machine after operation and to do an
emergency shut-down.
D Grinding wheel motor switch Starts the grinding motor.
E Grinding head positioning button
Changes the angle of the grinding head from left to right, or vice
versa.
F Power button Turns on the machine.
