Grindomatic
Grindomatic 201708 EN 33
Accessories and Spare Parts

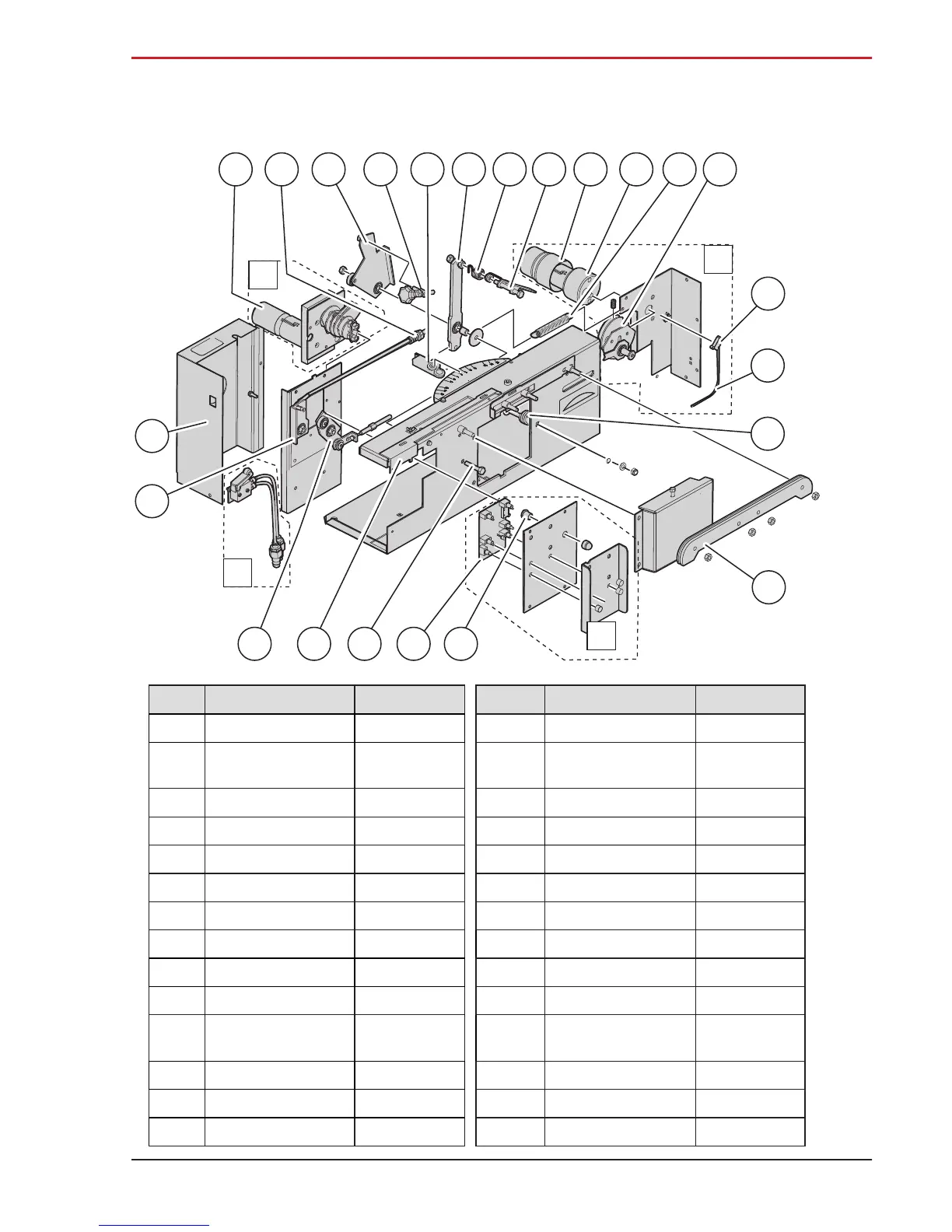

8.3 Spare parts
24 26
25
27 1 2 3 4 5 6 7 8
10
11
9
14
15
21
19 16171820
22
23
12
13
Pos Spare Part Order Number Pos Spare Part Order Number
1
Adjuster complete 12-047
15
Control panel assembly 12-033M
2
Chain lock 12-031
16
PDE bearing 12-032
3
Holder 13-114
17
Control unit (PCB) 12-033BUL
4
Spring 12-045
18
Bolt M6 x 30 12-034
5
Chain pusher 12-044C
19
Stop arm 12-035
6
Motor cover 12-025
20
Wire lifter assembly 12-036
7
Turning motor 12-026
21
Pneumatic valve 13-605
8
Tension spring 12-043
22
Lock axis assembly 12-037
9
Cam curve assembly 12-129
23
Motor housing 12-050
10
Turning motor assembly 12-027
24
Motor cover 13-131
11
Micro switch 12-029
25
Chain pusher motor
assembly
12-048
12
Wiring harness 12-028
26
Compression spring 13-112
13 Compression spring
12-061
27
Chain pusher plate 13-113
14
Chain vise 12-030
