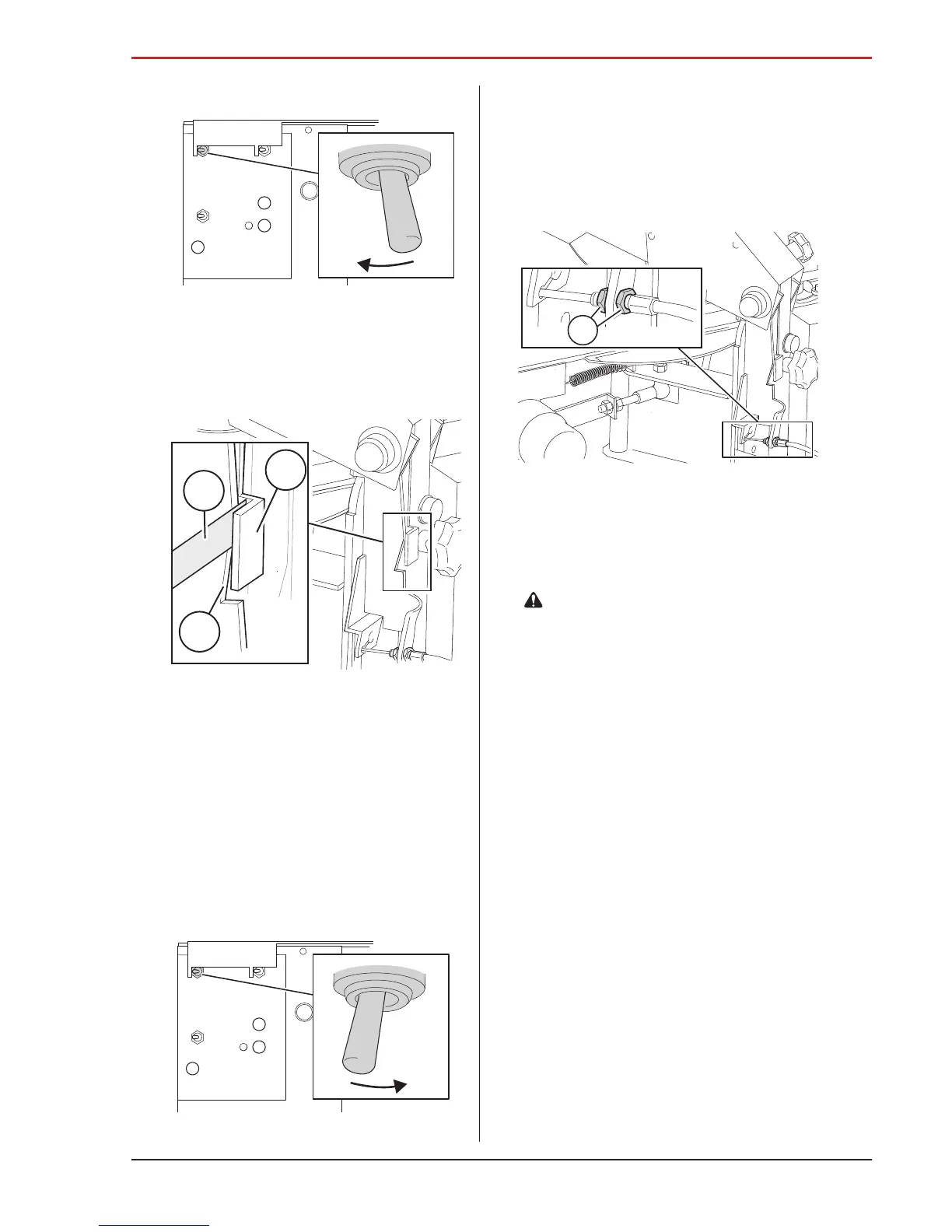

4. Set the chain pusher switch to ON.
5. Place a 0.019" (0.05 mm) feeler gauge (B)
between the lifting arm (C) and the flange (A)
and make sure that the lifting arm completely
meets the flange for about 1.5 seconds before
it lifts again.
• If the test is successful, the wire does not
need to be adjusted. The test is finished.
• If the lifting arm and flange do not completely
meet or do not meet long enough, perform the
next steps.
• If the wire is damaged or worn, it must be
replaced; see section 8, “Accessories and
Spare Parts”. When it has been replaced,
repeat steps 1-8.
6. Set the chain pusher switch to OFF.
A
B
C
7. To set the wire so that the lifting arm meets the
flange:
• for a shorter time: turn the two nuts (D) in the
direction towards the machine.
• for a longer time: turn the two nuts (D) in the
direction from the machine.
8. Repeat steps 5-8 until the test is successful.
6.6 Service
WARNING The user must only do maintenance
that is described in this manual on the machine.
Only approved and trained service technicians can
do service on the machine.
Note: Keep the delivery crates and packing material.
Pack the machine carefully if it is moved or sent
for service. The crates and packing material will
minimize the risk of damage during transportation.
