Grindomatic
Grindomatic 201708 EN 7
Product Description
3 Product Description
3.1 Product overview
The Grindomatic Auto Chain Grinder is a machine that sharpens chains. The machine can sharpen chains (3/8”, 3/8”
Low Profile, .325”, and .404” pitch) for power saws, forestry machines, and harvesters.

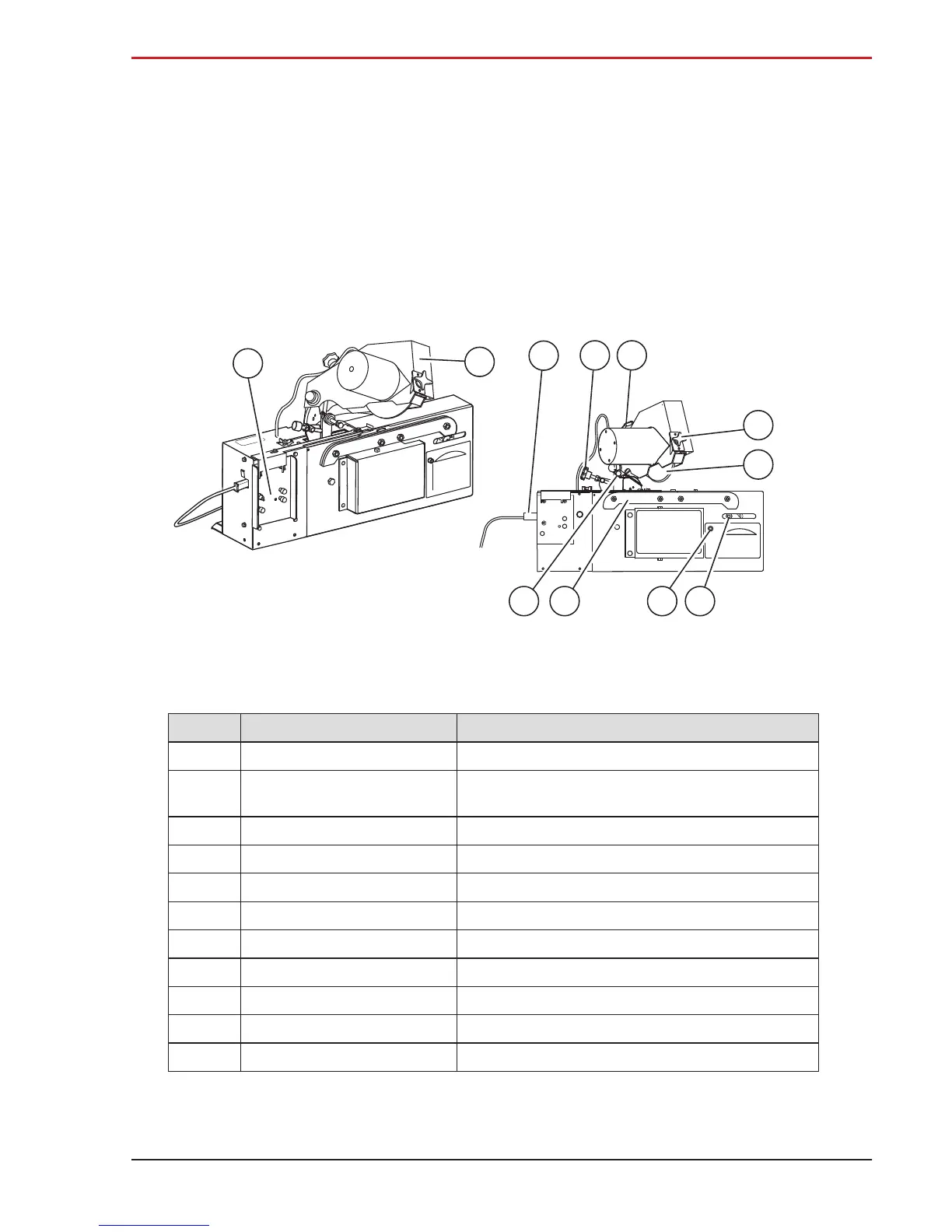

3.2 Front view
A
B
C
D
E
F
G
H
I
J
K
Pos Part Description
A Grinding head Holds the grinding wheel in its correct position.
B Control panel
The controls starts and stops the different functions of the machine.
See section 3.6, “Controls” for further information.
C Grinding wheel The wheel that sharpens the chain.
D Grinding wheel centering knob Centers the grinding wheel above the chain.
E Grinding depth knob Sets the grinding depth for the gullets
F Chain pusher adjustment knob Sets the grinding length.
G Power supply cable Supplies electricity to the machine.
H Chain pusher Advances the chain through the vise.
I Chain vise Positions the chain as it moves in the machine.
J Left-right alignment screw Sets the right and left cutters to equal length.
K Top-plate angle screw Sets the top-plate angle, 0-35°. Default 30°.
