Grindomatic
8 Grindomatic 201708 EN
Product Description

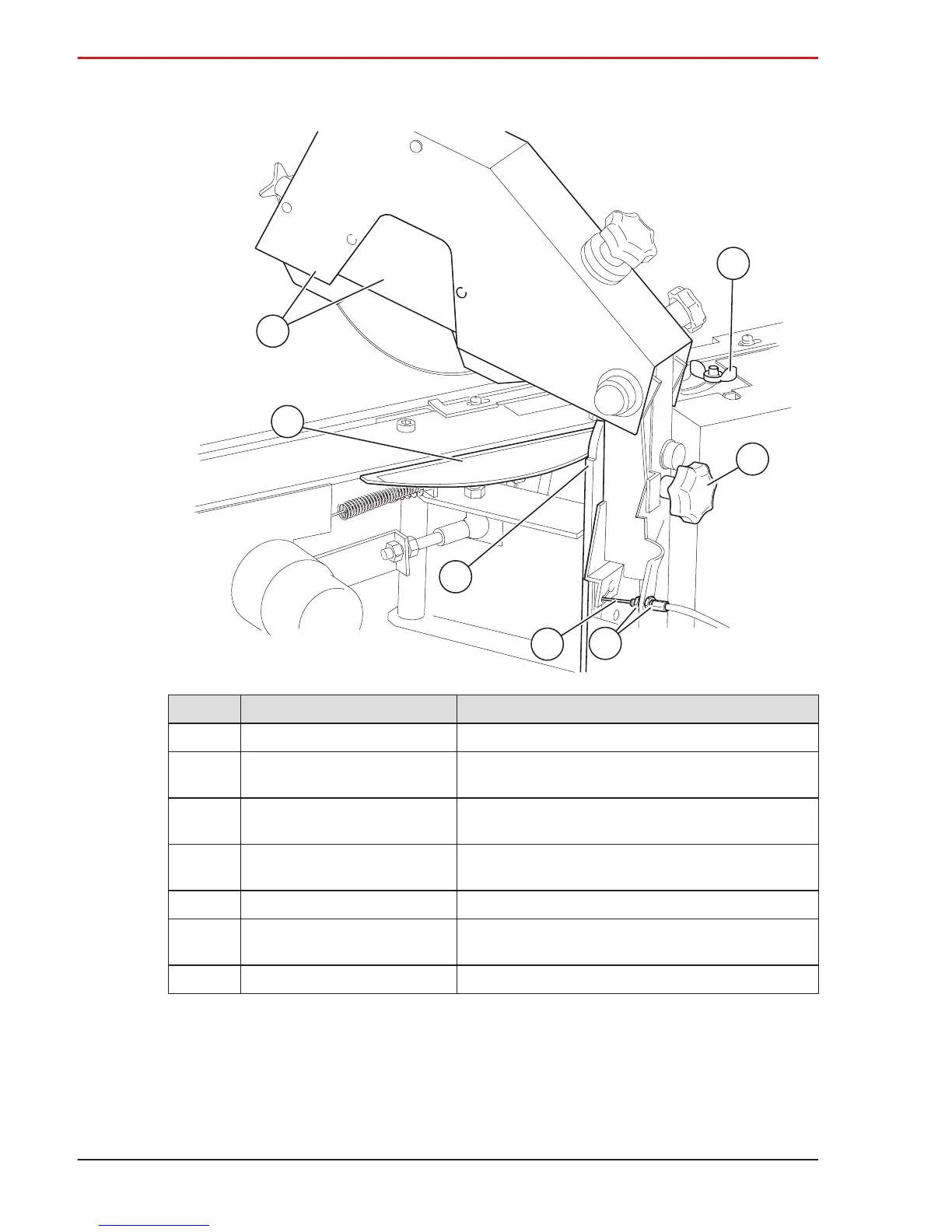

3.3 Back view
F
B
C
D
E
A
G
Pos Part Description
A Pitch adjustment wing Adjusts the pitch.
B
Grinding head cover and grinding
wheel guard
Protects the grinding head and grinding wheel; it also protects the
user from sparks during grinding.
C Top-plate angle scale
Shows the top-plate angle on a scale from 0-35°. Default: 30°. It is
set using the top-plate angle screw (O in Front view illustration).
D Head-tilt angle scale
Shows the head-tilt angle on a scale from 50-90°.
Default: 60°.
E Wire Controls the vertical movement of the grinding head.
F Wire adjustment knobs
Adjusts the wire that controls the vertical movement of the grinding
head.
G Head-tilt angle nut Sets the head-tilt angle on the head-tilt angle scale. (D)
