Assembling the stand
9.2 Using the chain tensioner
Loosen the locking handle and move the
tensioner upward or downward to make enough
room to position the chain.

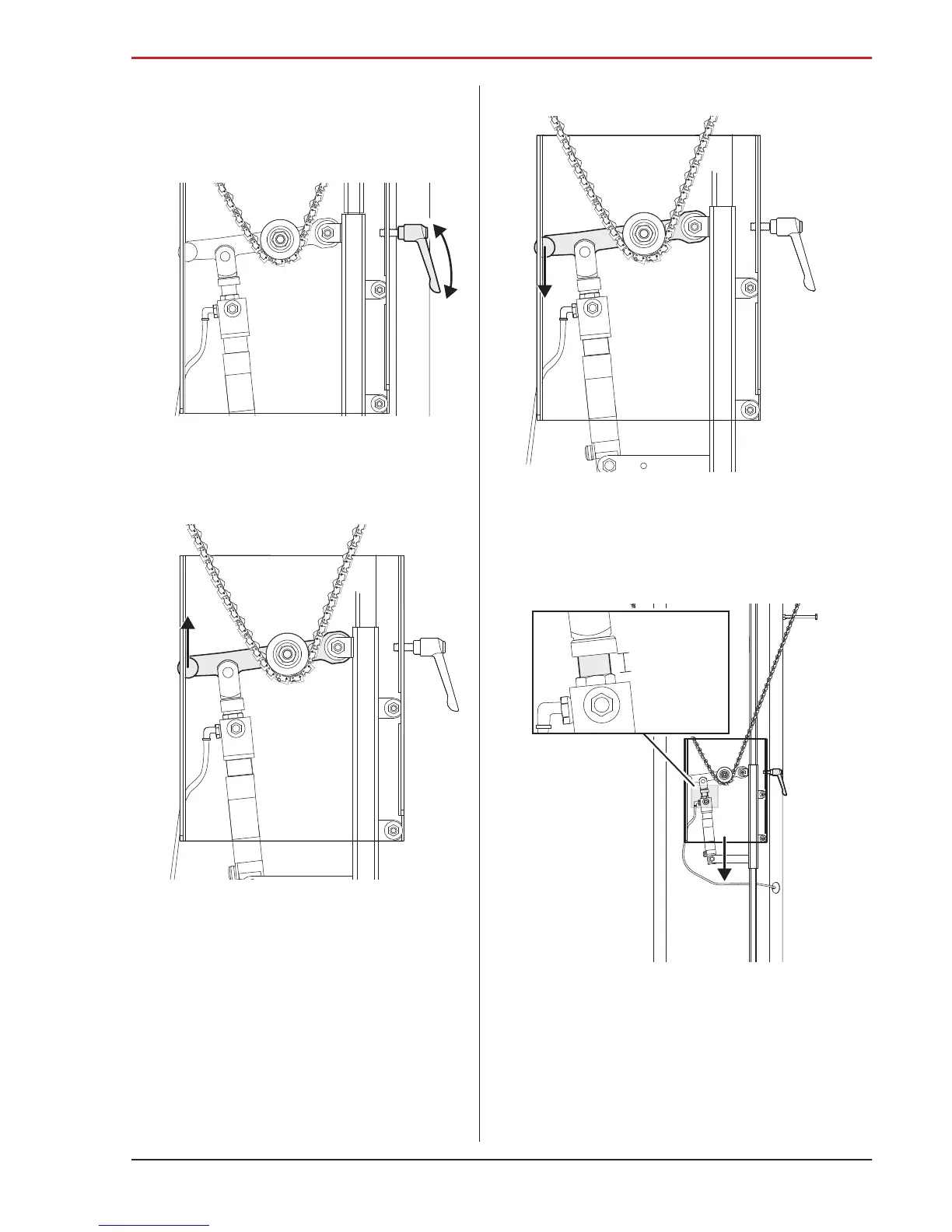

1. Lift the tensioner arm (there is a quick release
function) and place the chain below the
tensioner roll.
2. Lower the tensioner arm to its bottom position.
3. Move the tensioner downward until the chain is
tightly secured in its position. There should be
a gap of about 12.7mm between the
pneumatic-piston nut and pneumatic piston,
where the piston should be visible.
12.7mm
