5. System Configuration

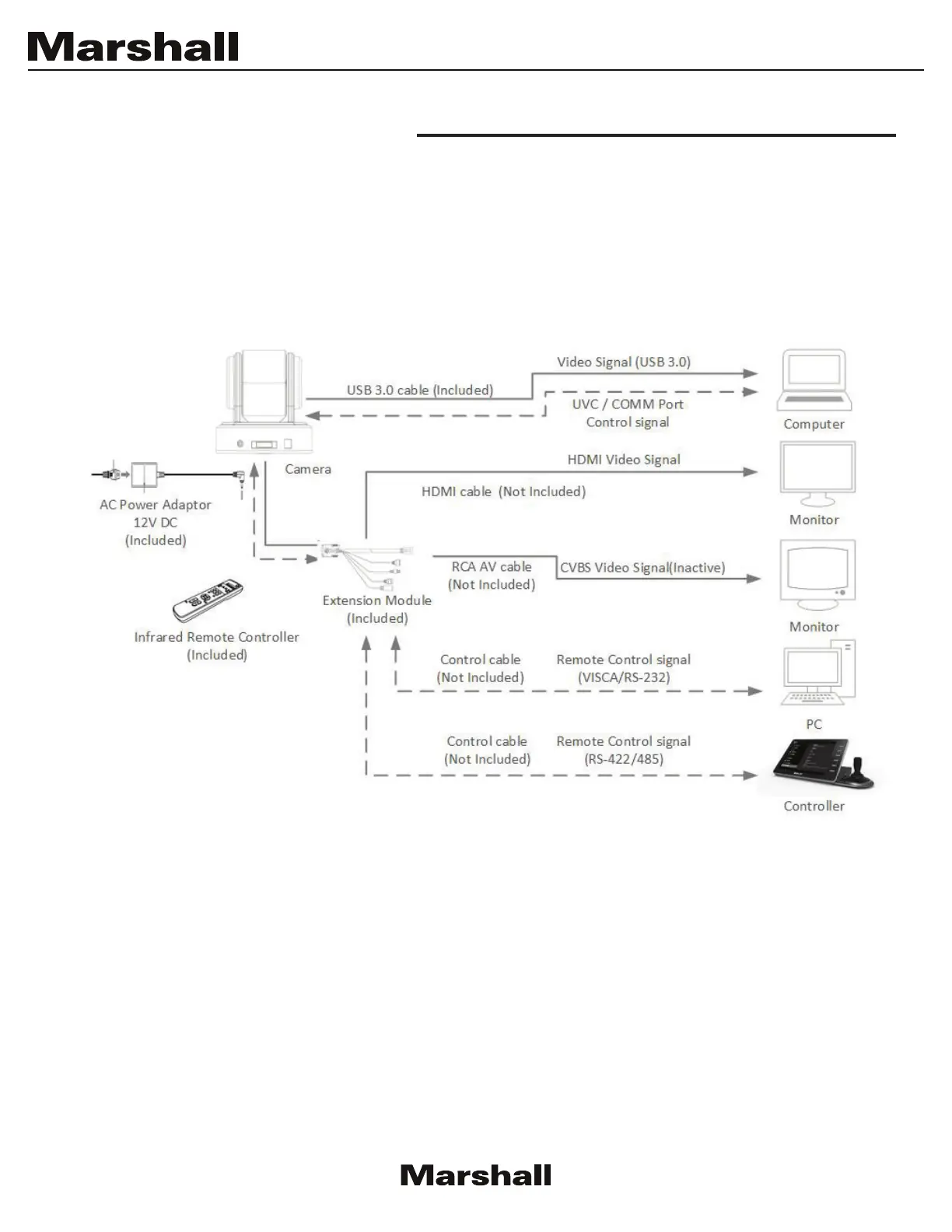

5.1 Connection
When the camera is connected to a computer and joystick keyboard via Extension Module with a
VISCA cable (cross type, RS-232), you can operate the camera with the computer and the joystick
keyboard.
When the camera is connected to a joystick keyboard via Extension Module with a control cable
(cross type, RS-422/485), you can operate the camera’s pan, tilt, zoom with the joystick keyboard.
In this connection configuration, Extension Module, DVI-HDMI converter, DVI cable, HDMI cable,
Analog video cable, data cable is required. To obtain these third-party components or accessories,
consult the dealer where you bought your camera.
Notes
• Use only the AC power adaptor (JEITA type4) supplied with the unit. Do not use any other AC
power adaptor.
• Polarity of the plug
• You have to set the video format of the signal to output from the camera. For detailed information
on how to set the video format, see “SYSTEM SELECT switch” on page 19, 23.
