Marshall Electronics CV610-U3-V2 User Manual

13

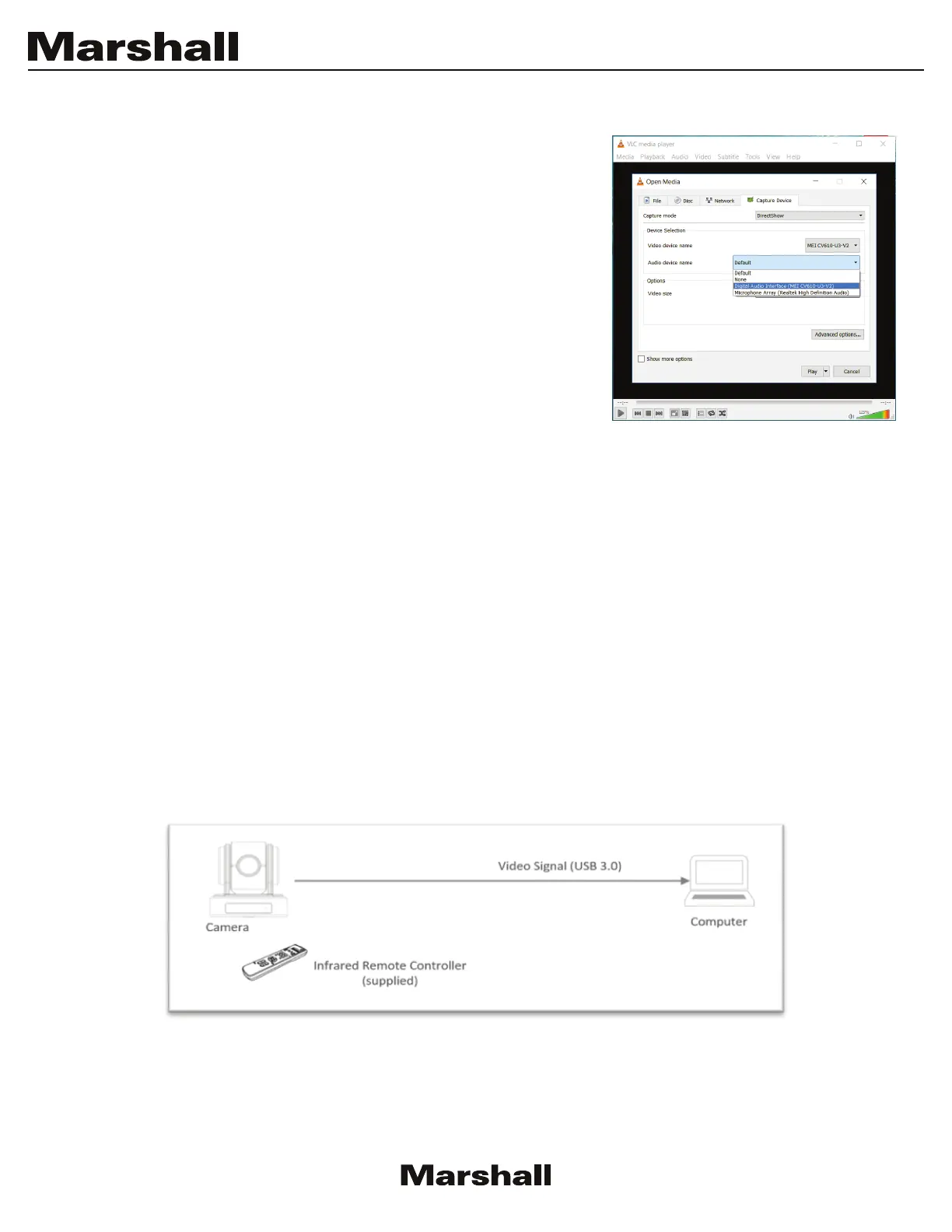

5.3 Obtain Audio Signal
1. The camera has built in Mic. It generates audio signal to
the video client software. In the software Audio section
find Microphone setting. “Digital Audio Interface (MEI
CV610-U3-V2)” will be listed. Once you select it as
software audio device, you can use the built-in Mic for
communicating.
2. You can have external audio input by using Extension
Module (optional). The built-in Mic will be deactivated
after the external audio input is used.
5.4 Camera Control Methods and System Configurations
This unit has multiple ways of controlling the USB3.0 camera and various system configuration
capabilities using optional products. This section describes ways of controlling and typical system
examples with the required components and usage of each system.
1. Use the Infrared Remote Controller
2. Use Third party video conference software (UVC1.5 compliant).
3. Use RS-232 (VISCA), via Extension Module (optional).
4. Use RS-422(VISCA)/485 (PELCO P/D) via Extension Module (optional).
Use the Infrared Remote Controller
To operate the camera from a short distance.
System Configuration A
For IR remote control details, refer to Operation Using the Infrared Remote Controller, see page 24.
