4 Output state for RTD outputs:
Stby Standby, terminals inactive
Opr Operating, terminals are active with output per the displayed value
Blank for RTD inputs
Cold junction selection for thermocouple inputs and outputs:
XCJC External cold junction compensation; the 3001 automatic cold junction
compensation is turned off, i.e. 0 mV is always 0°C
Blank Internal cold junction compensation; the 3001 automatically measures
the ambient temperature at the thermocouple terminals and compen-
sates the measurement, i.e. 0 mV is ambient temperature
5 Input or output value
6 Units

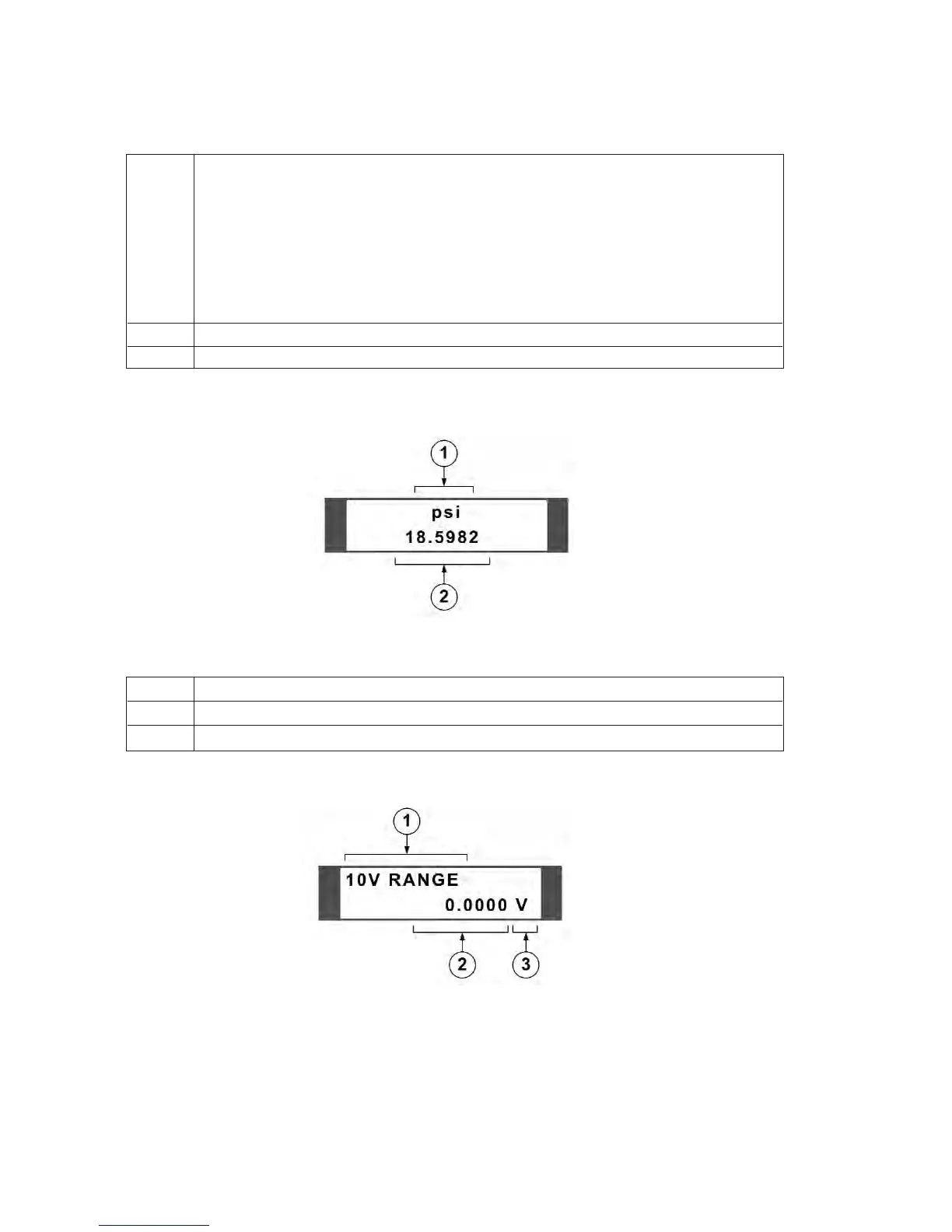

c) Primary and Isolated Pressure Display
Figure 8 - Primary and Isolated Pressure Display Layout
Item Description
1 UnitsOn the primary display, rem appears to the left during remote operation
2 Input value
d) Isolated Voltage and Current Display
Figure 9 - Isolated Voltage and Current Display Layout
12
