c) At the setpoint number selection prompt "RECALL SPT#", press the numeric
key, 1 to 9, corresponding to the setpoint to be recalled.
To start an automatic setpoint cycle:
a) Select the output mode.
b) Press the and keys to select the AUTOSET function.
c) At the ending setpoint number selection prompt "AUTO SET POINT", press the
numeric key, 1 to 9, corresponding to the ending setpoint number for the cycle.
d) At the dwell time prompt "DWELL TIME", "5-500?", enter the number of
seconds, 5 to 500, to dwell at each setpoint value, followed by the key.
e) The key can be used at any time during the cycle without stopping it.
f) Press any other key to terminate the cycle.
7. Application Notes
7.1 P/I Transmitter

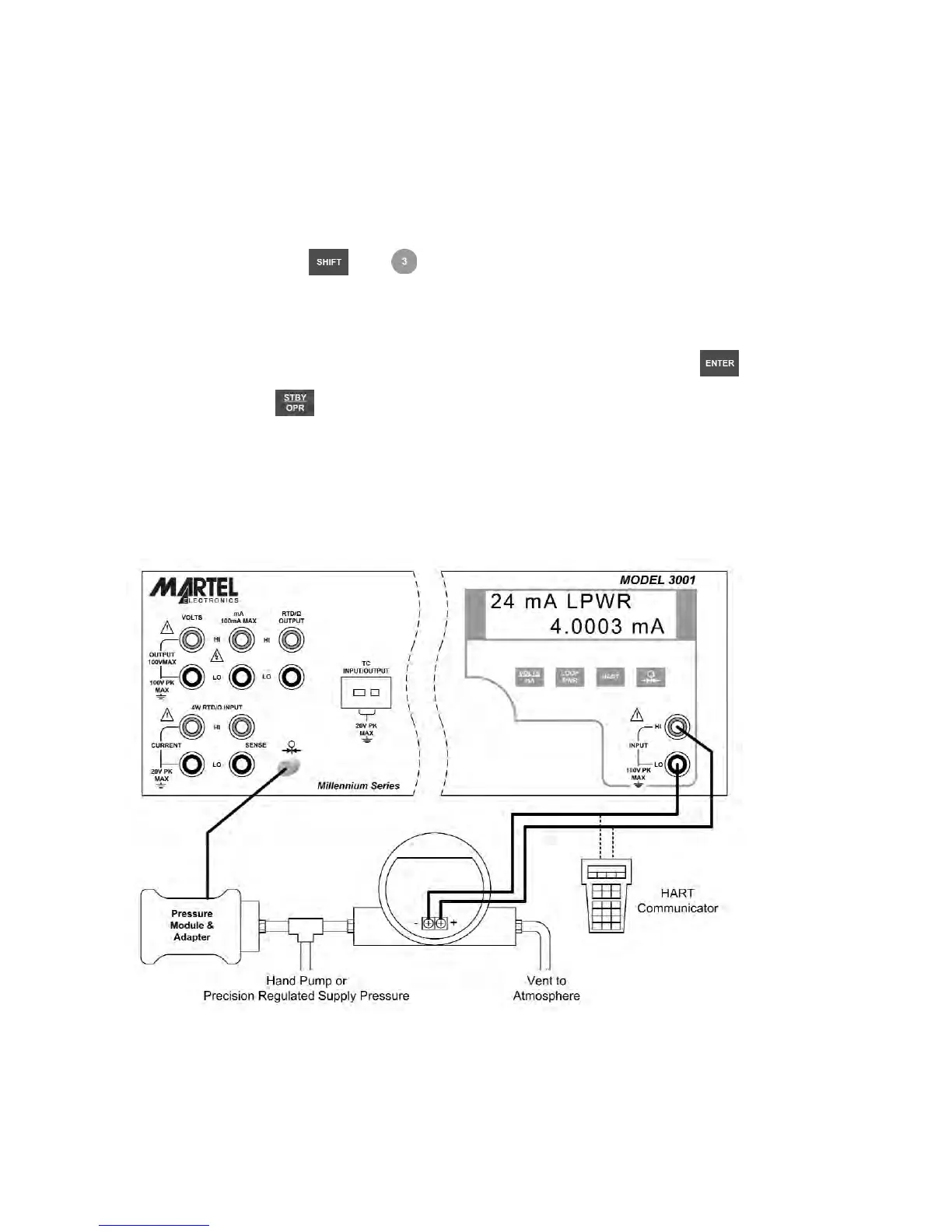

Figure 20 - P/I Transmitter Application
