1. Disconnect any test leads from external devices.
2. Select thermocouple output on the primary display as described in section 4.8.
Select the thermocouple type which corresponds to the transmitter being tested.
3. Select current input on the isolated display as described in section 5.2. Select the
isolated loop power option. If a HART communicator is to be used for set up of the
transmitter, select the HART option.
4. Connect the transmitter as shown in figure 26.
5. Test and calibrate the transmitter per the manufacturer's instructions.
7.8 RTD Indicator

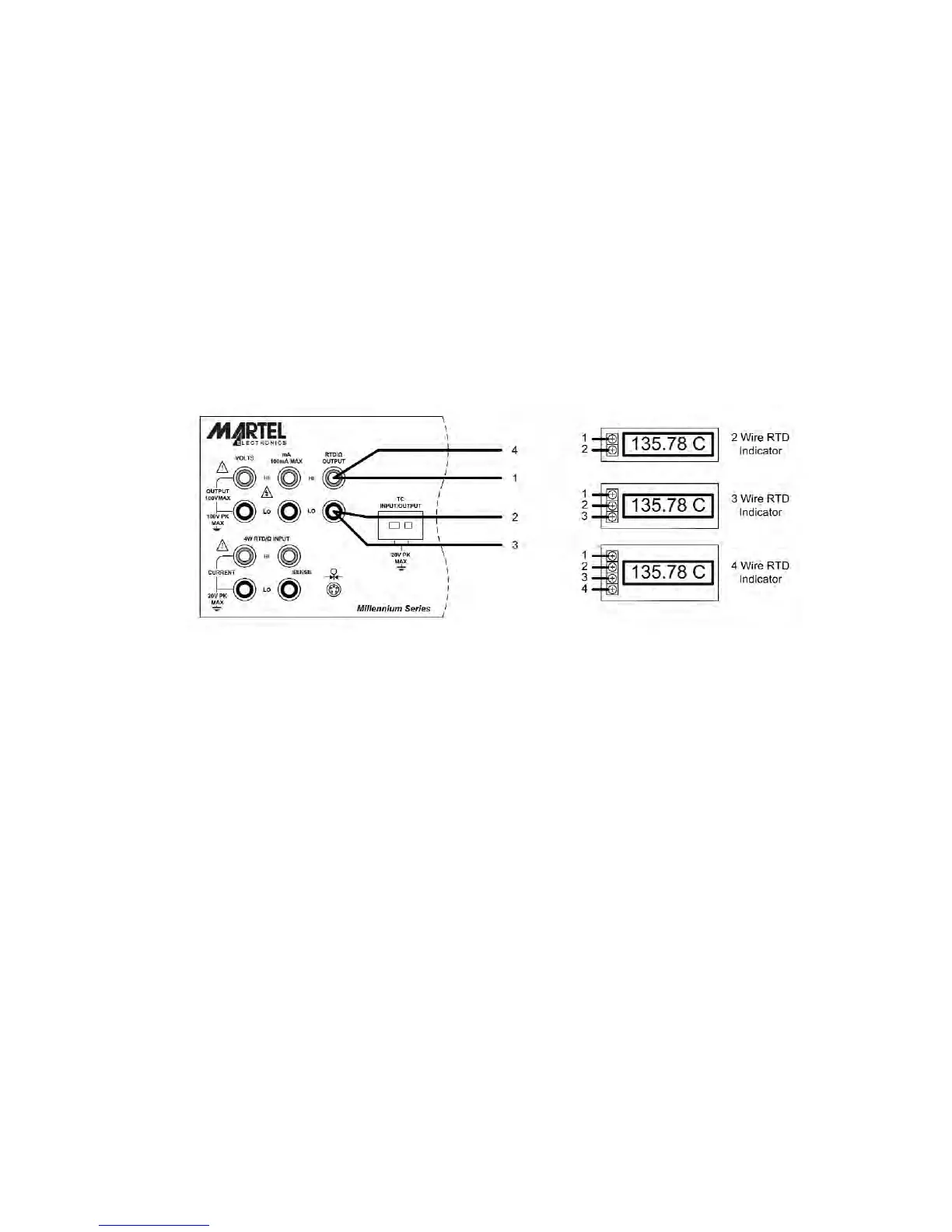

Figure 27 - RTD Indicator Application
1. Disconnect any test leads from external devices.
2. Select RTD output on the primary display as described in section 4.4. Select the RTD
type which corresponds to the indicator being tested.
3. Connect the indicator as shown in figure 27.
4. Test and calibrate the indicator per the manufacturer's instructions.
