1. Disconnect any test leads from external devices.
2. Select RTD input on the primary display as described in section 4.3. Select the RTD
type which corresponds to the RTD being tested.
3. Connect the RTD as shown in figure 23.
4. Test the RTD per the manufacturer's instructions.
7.5 RTD Transmitter

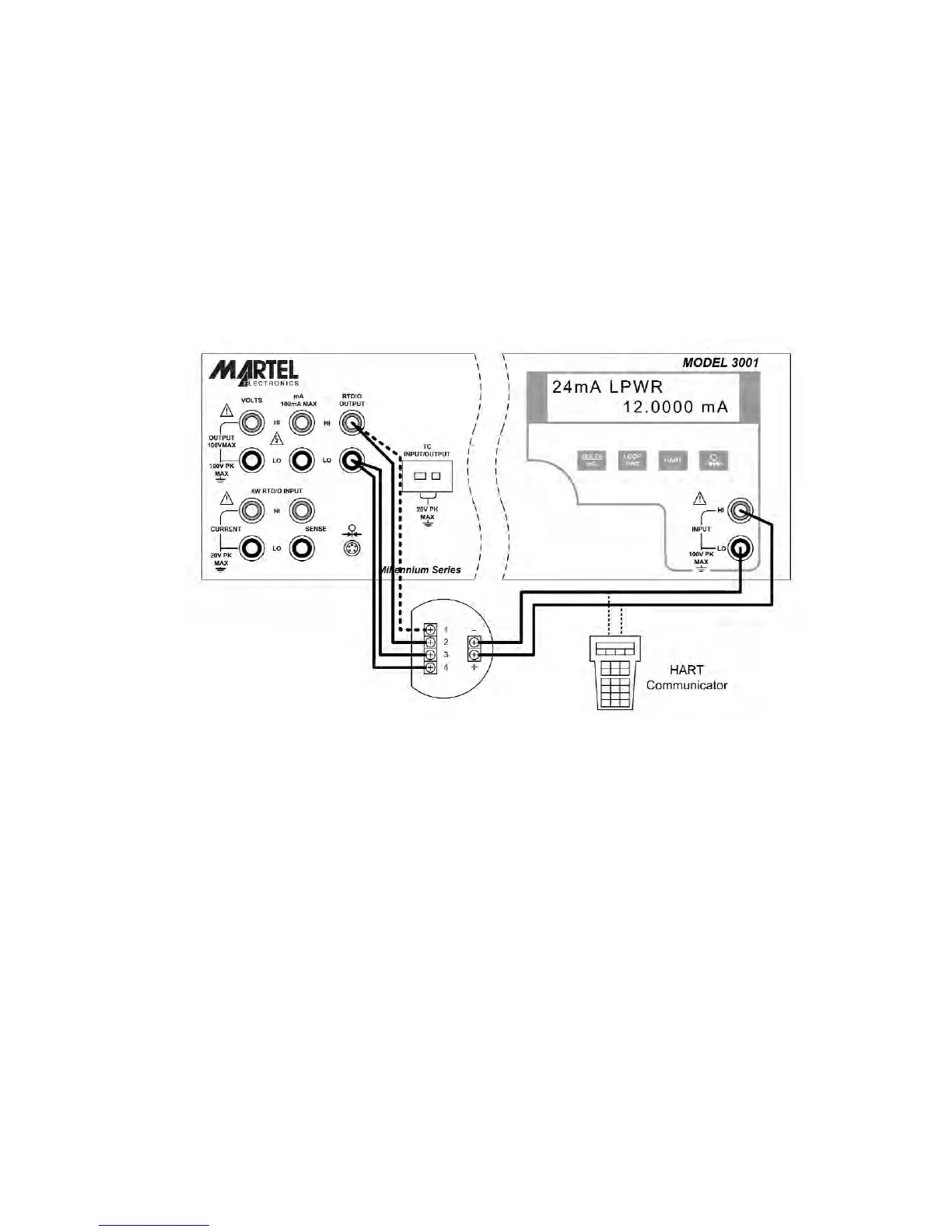

Figure 24 - RTD Transmitter Application
1. Disconnect any test leads from external devices.
2. Select RTD output on the primary display as described in section 4.4. Select the RTD
type which corresponds to the transmitter being tested.
3. Select current input on the isolated display as described in section 5.2. Select the
isolated loop power option. If a HART communicator is to be used for set up of the
transmitter, select the HART option.
4. Connect the transmitter as shown in figure 24.
5. Test and calibrate the transmitter per the manufacturer's instructions.
31
