7.6 Thermocouple Test

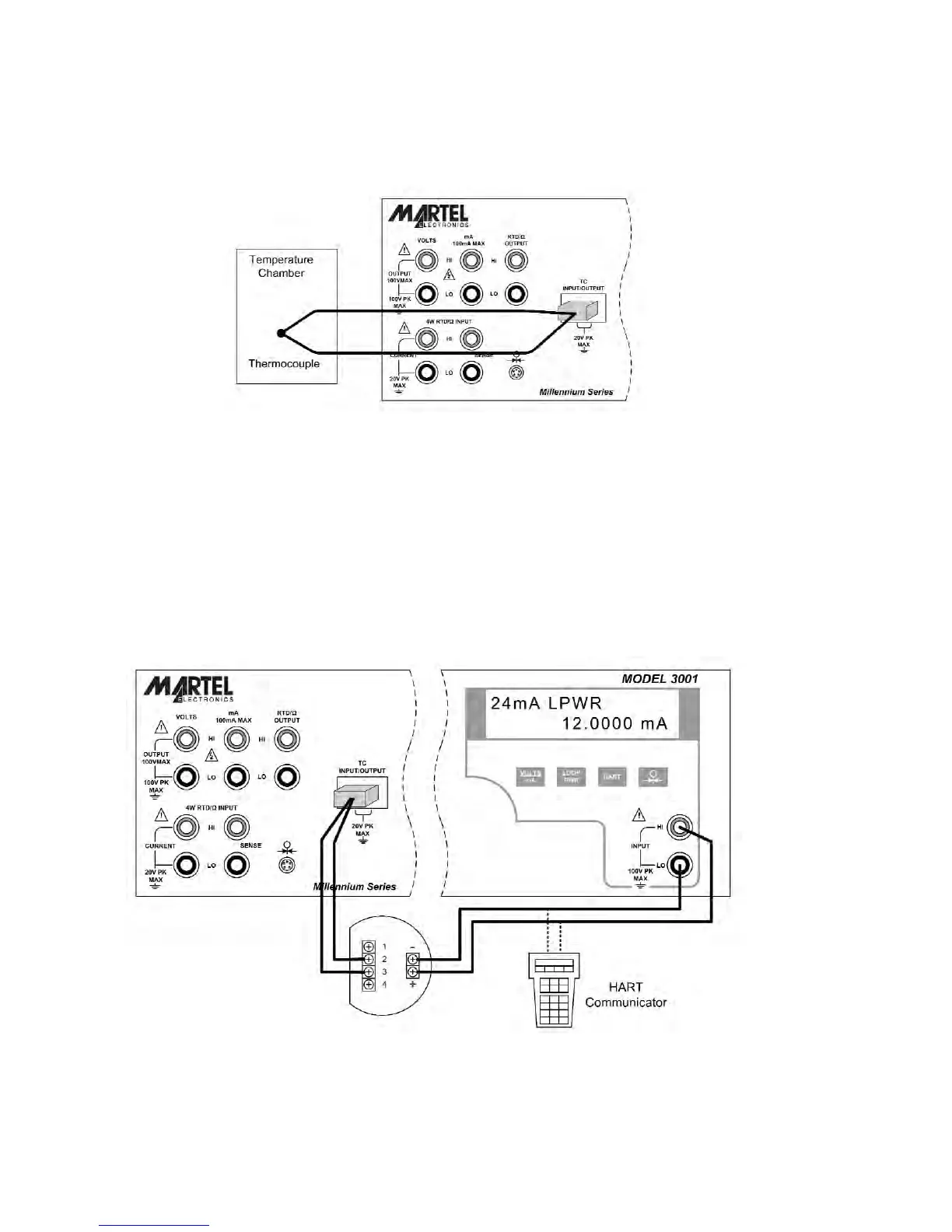

Figure 25 - Thermocouple Test Application
1. Disconnect any test leads from external devices.
2. Select thermocouple input on the primary display as described in section 4.7. Select
the thermocouple type which corresponds to the thermocouple being tested.
3. Connect the thermocouple as shown in figure 25.
4. Test the thermocouple per the manufacturer's instructions.
7.7 Thermocouple Transmitter
Figure 26 - Thermocouple Transmitter Application
32
