2.6 Display Layouts
a) Primary Voltage and Current Display

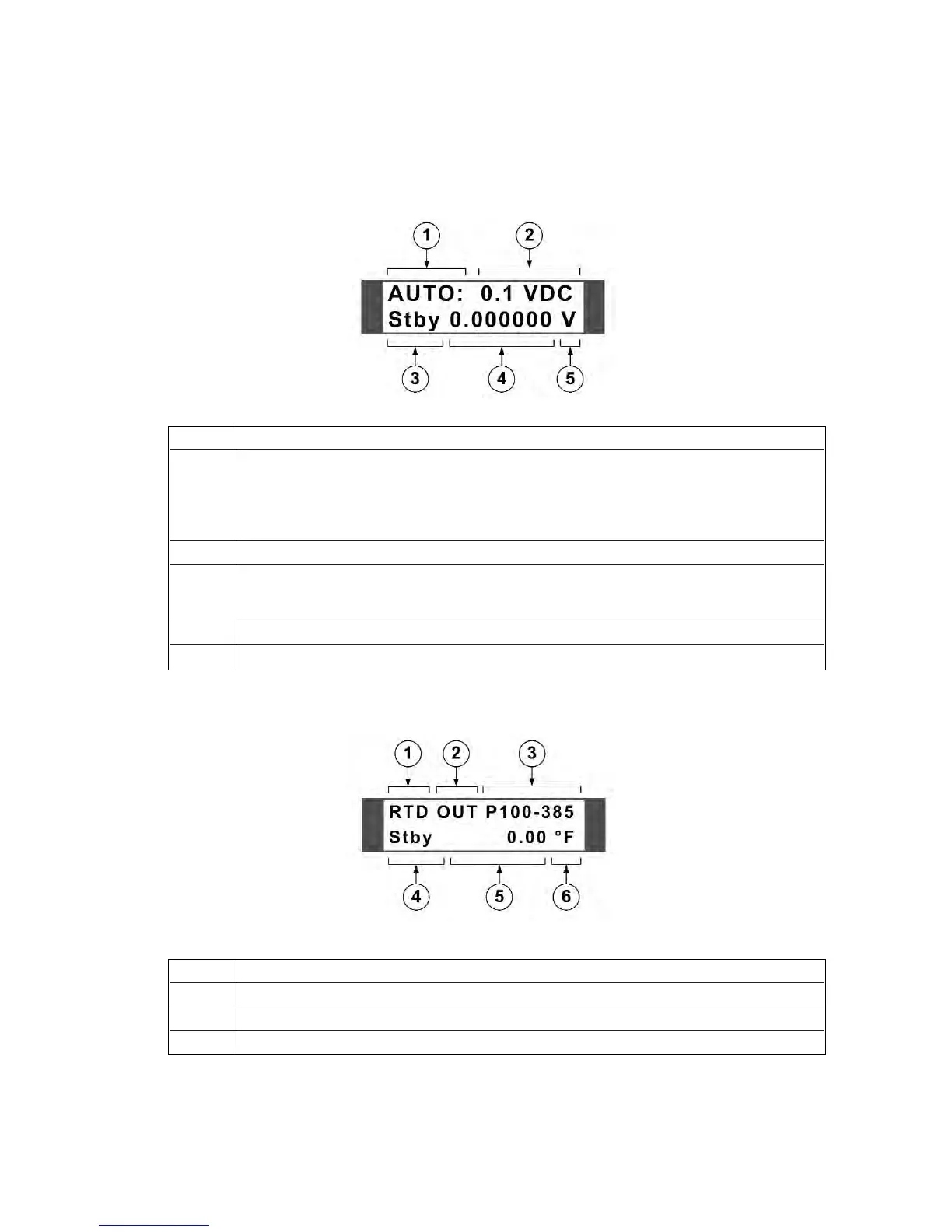

Figure 6 - Primary Voltage and Current Display Layout
Item Description
1 Operating mode:
AUTO: Auto-range
LOCK: Range lock
rem remote operation
SP# Automatic stepping of preset setpoints
2 Present range and output mode
3 Output state:
Stby Standby, terminals inactive
Opr Operating, terminals are active with output per the displayed value
4 Output value
5 Units
b) Primary Thermocouple and RTD Display
Figure 7 - Primary Thermocouple and RTD Display Layout
Item Description
1 Output mode selection: RTD, TC, or rem for remote operation
2 Input or output selection
3 RTD or thermocouple type selection
11
