CDD USER GUIDE
CDD User Guide V1.0 15

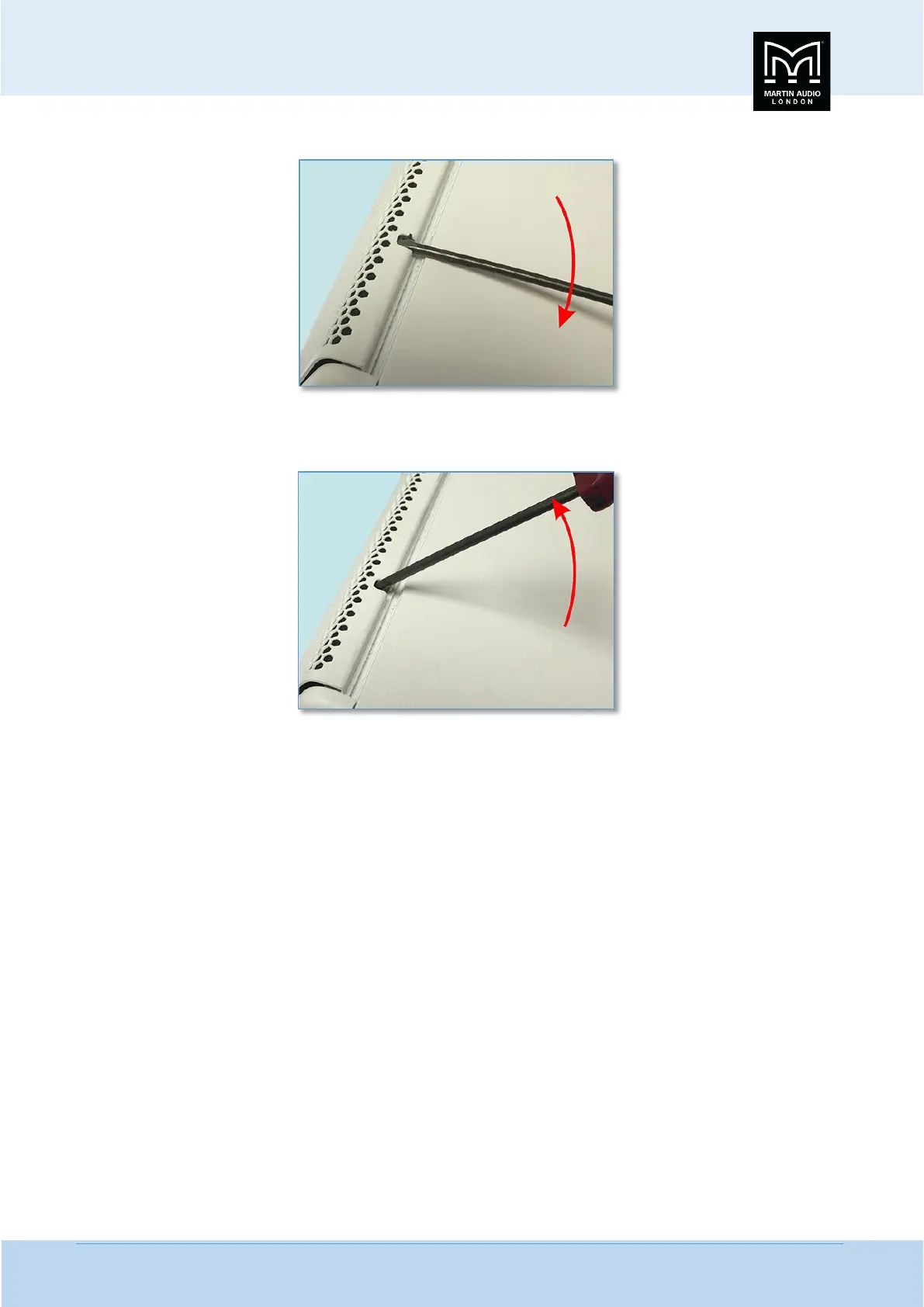

Gently push the handle down slightly. This will ease the grille out of the slot.
Now lift the handle up; this will ease the grille forward slightly to prevent the return on the grille dropping straight back into the
slot:
Repeat this process for the remaining gaps in the grille to ease it out of the slot all the way up one side of the cabinet; when you
get to the final gap the grille should pop out and away from the front of the cabinet.
To replace the grille, first insert one side into the slot on one side of the cabinet. Make sure the return on the grille is completely
engaged in the slot. Push on the front of the grille with the flat of your hand, which will encourage the other edge of the grille to
locate on the side of the cabinet close to the slot. Now push the edge of the grille back starting at the top or the bottom to
engage the return in the slot; you may need to do this a little at a time, working down the length of the grille until it pops into
place.
