SYSTEM EXAMPLES
The following diagrams show examples of possible systems. All assume the use of the DX0.5 loudspeaker management system.
This is recommended for all systems, even when no subwoofers are in use, as when set correctly to suit the amplifiers being
used, the limiter functions provide excellent loudspeaker protection against overloads and possible amplifier faults.

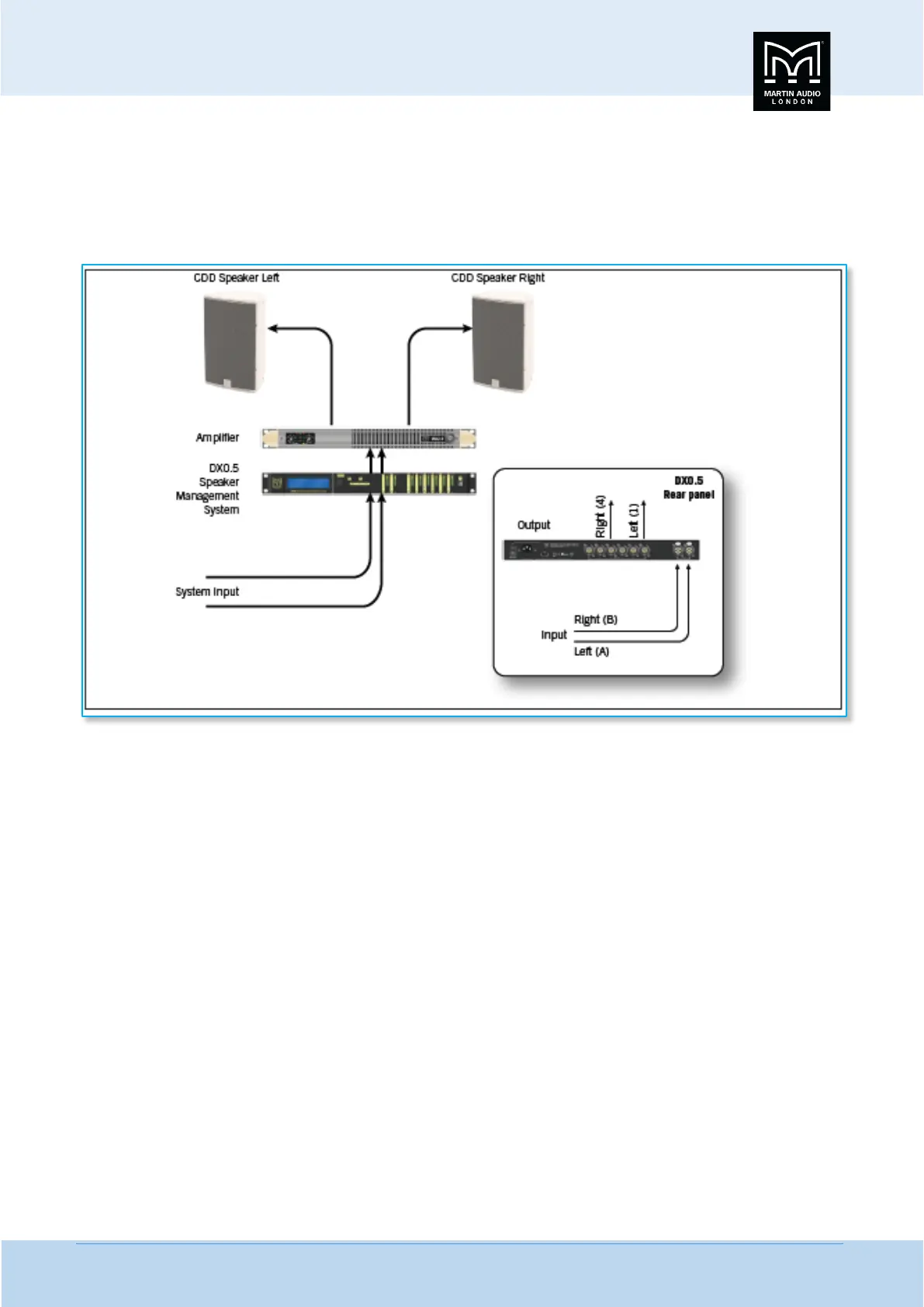

1 x Stereo
