WALL MOUNTING – PROCEDURE
CDD5 only

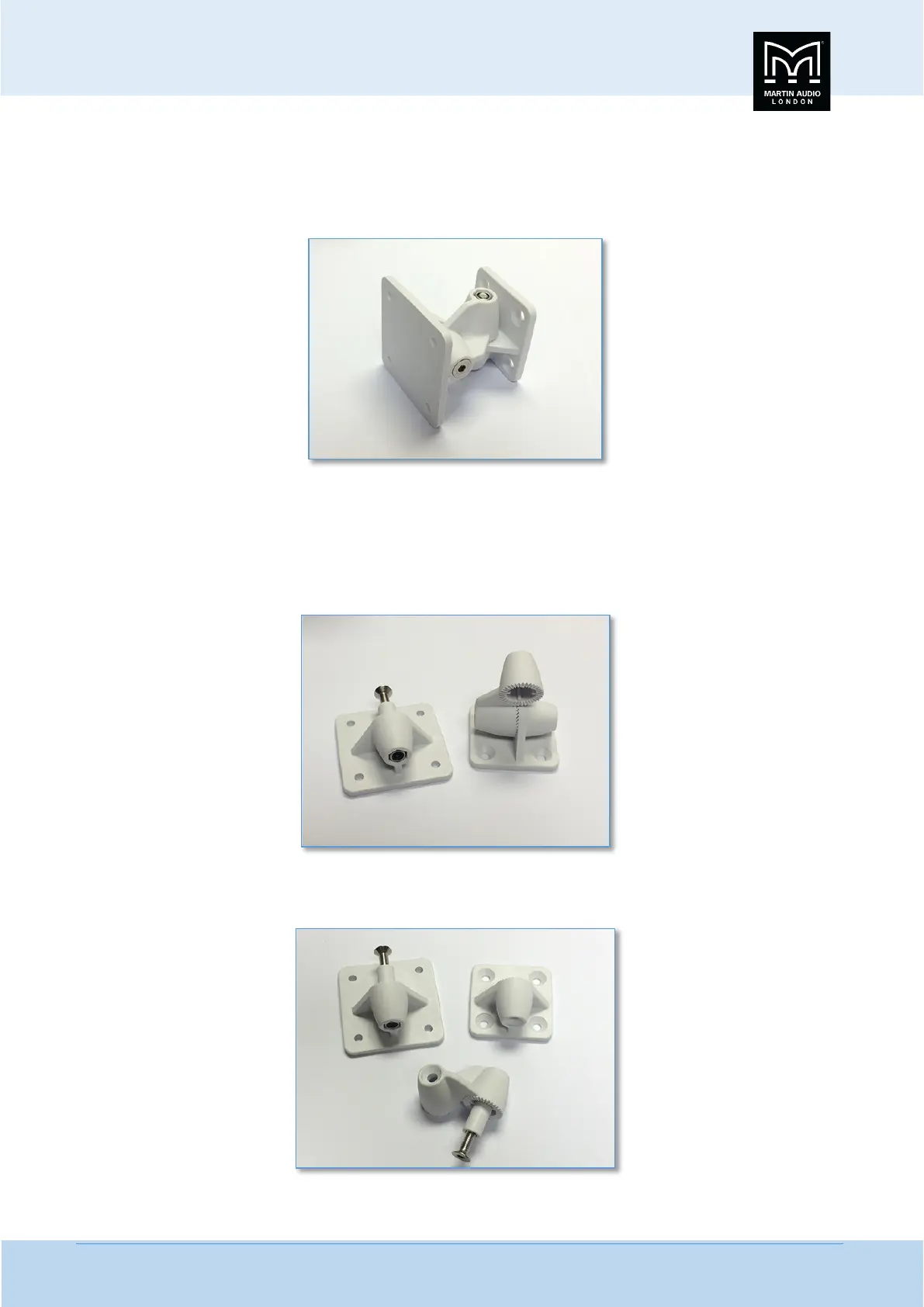

A pair of CDD5 wall brackets is supplied with the speakers. The bracket is a three-part design which allows adjustment in both
horizontal and vertical planes if required.
First fix:
First decide whether adjustment is needed in one or both planes, and then disassemble the bracket. To obtain both horizontal
and vertical adjustment, separate the wall section of the bracket using a 4 mm hex key. The wall section is easily identified as it
has the larger flange with fixing holes on 45 mm centres; the cabinet section is smaller and has countersunk holes on 35 mm
centres.
If only one plane of adjustment is required - either vertical or horizontal - remove the link section in the middle; this is also
secured with a 4 mm hex head bolt.
