CDD USER GUIDE
CDD User Guide V1.0 33
Second fix:

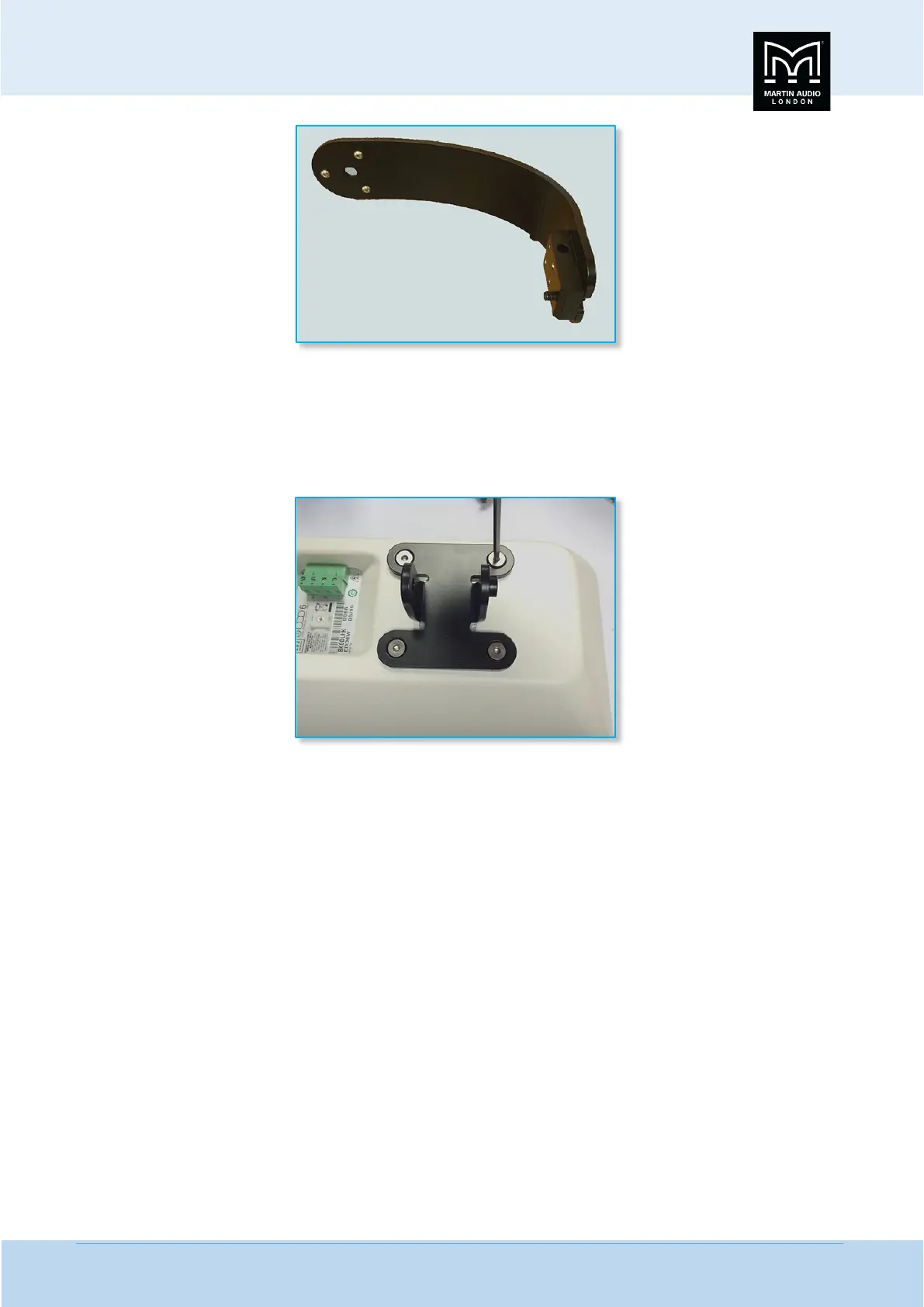

With ceiling mounting, the cabinet will probably be used in landscape mode. Fit the cabinet section of the wall bracket (previously
removed from the arm). The bracket is attached orientated as shown by removing four screws with an M4 hex key and attaching
the bracket with the same screws. In the case of the CDD6, there are only four fixing points; the CDD8 has six: use the four
“upper” ones. The photo below illustrates the fixings on a CDD6:
Note that is vital that the driver is orientated to suit the deployment used. “Out of the box” the driver is in the correct position
for “portrait” use and must be rotated through 90° for “landscape” use. Please see the driver rotation chapter for details.
Offer the cabinet up the ceiling bracket arm and mate the cabinet bracket section with the ceiling bracket arm by threading the
M6 bolt with spring washer through the cabinet bracket as shown below. Do not fully tighten the bolt at this stage, leave a little
play so the vertical dispersion can be adjusted.
