CDD USER GUIDE
CDD User Guide V1.0 37
Note that is vital that the driver is orientated to suit the deployment used. “Out of the box” the driver is in the correct position
for “portrait” use and must be rotated through 90° for “landscape” use. Please see the driver rotation chapter for details.

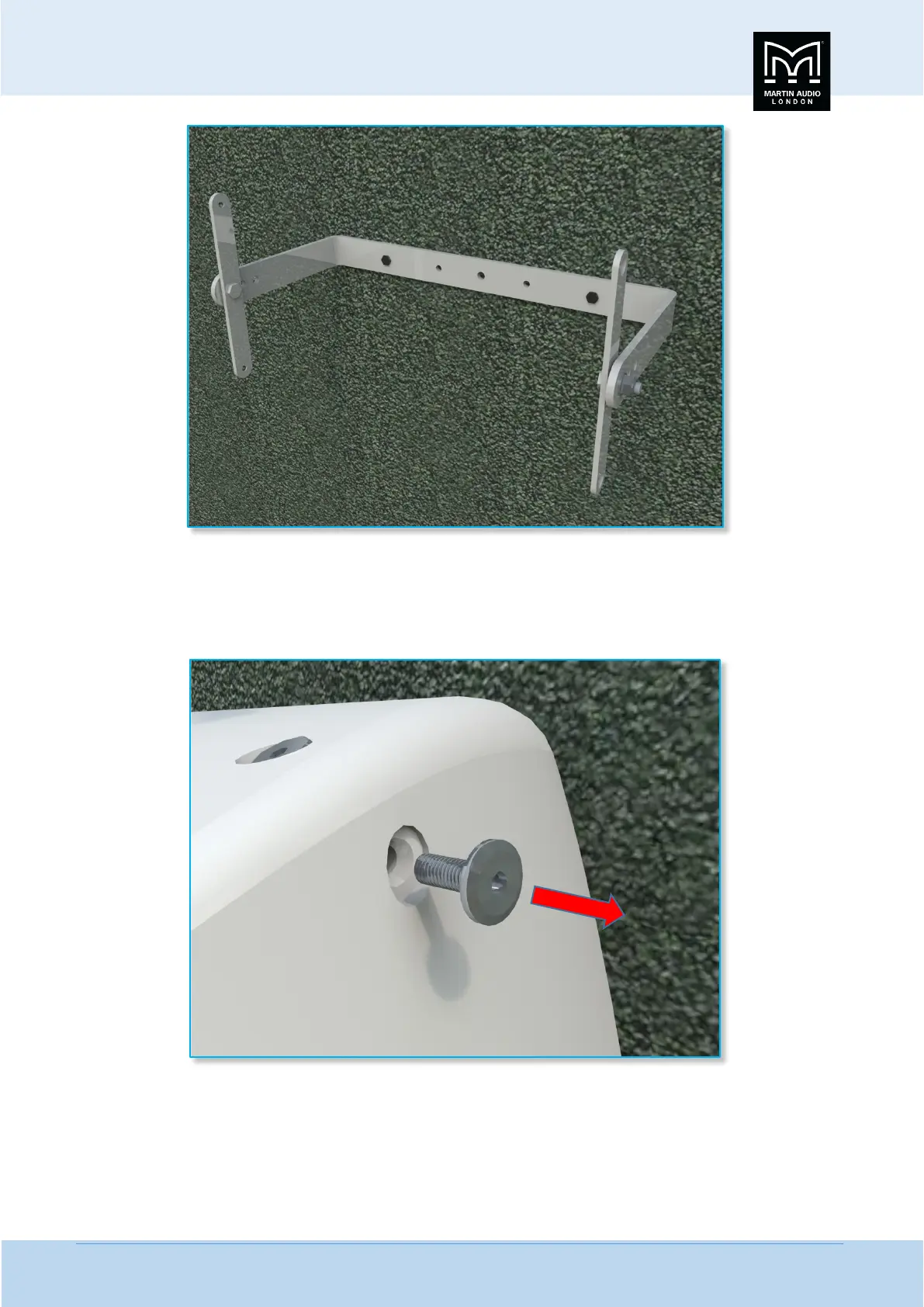

First remove two of the M8 screws in the top and bottom of the cabinet, four in total. Note that there are three screws on both
top and bottom; the screw nearest the back of the cabinet is not used, so should be left in place.
The screws removed must be retained as they are used to attach the cabinet to the yoke.
Replace the screws with the hex spacers supplied with the yoke assembly. These are all the same length so can be used in any
position. Ensure they are tightened securely.
