User Manual 5
Powering the fixture
C h e c k v o l t a g e a n d f r e q u e n c y s e t t i n g s
The settings must match the local AC power supply. These settings are printed on the serial number label on the base. If the
settings do not match the local conditions, then the ballast and/or transformer must be rewired. See section 5 for details.
W A R N I N G !
For protection from dangerous electric shock, the fixture must be grounded
(earthed). The AC mains supply shall be fitted with a fuse or circuit breaker and
ground-fault protection.
I n s t a l l a p l u g o n t h e p o w e r c o r d
You may need to install a cord cap that fits your supply on the power cable. A 3-prong grounding-type plug must be installed
following the manufacturer’s instructions. Connect the wires to the pins as listed below. Note: The table shows some possible
pin identification schemes; if the pins are not clearly identified, or if you have any doubts about proper installation, consult a
qualified electrician.
Connect the MAC 600/E directly to AC power.
'RQRWFRQQHFWLWWRDGLPPHUV\VWHPGRLQJVRPD\GDPDJHWKHIL[WXUH To apply power, set the power
switch on the base to the “I” position.
Rigging the fixture in place
W A R N I N G !
Use 2 clamps to rig the fixture. Lock each clamp with both 1/4-turn fasteners.
The fasteners are locked only when turned fully clockwise.
Attach an approved safety cable to the base.

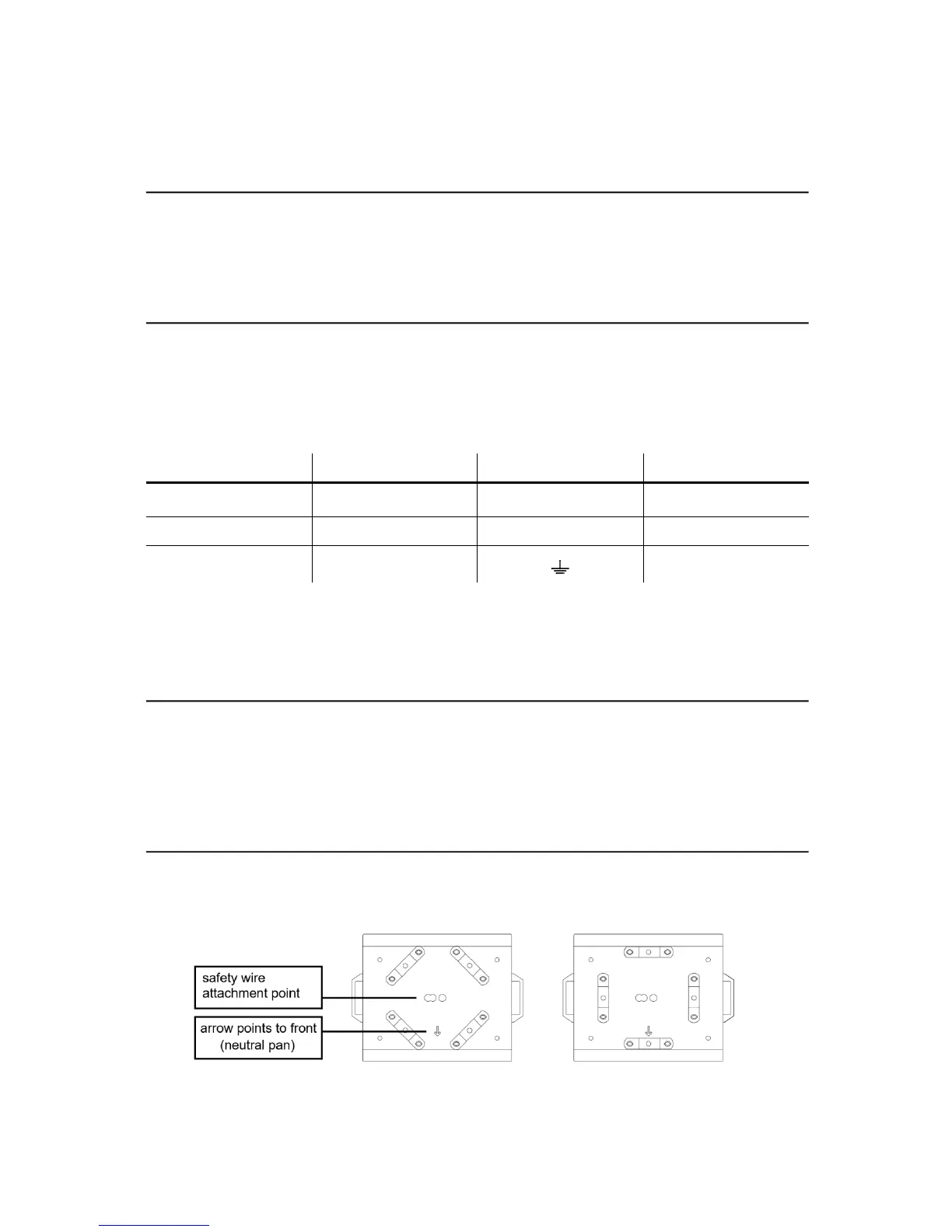

The MAC 600/E can be placed directly on the stage floor or rigged in any orientation on a truss. The integrated Fast-Lock
system enables quick and easy fastening of the clamp adapters in 4 different positions as shown below.
1. Verify that the rigging clamps (not included) are undamaged and can bear at least 10 times the weight of the
fixture. Bolt the clamps securely to the clamp brackets with a grade 8.8 (minimum) M12 bolt and lock nut, or
as recommended by the clamp manufacturer.
