Martin VDO Atomic Dot user guide 11

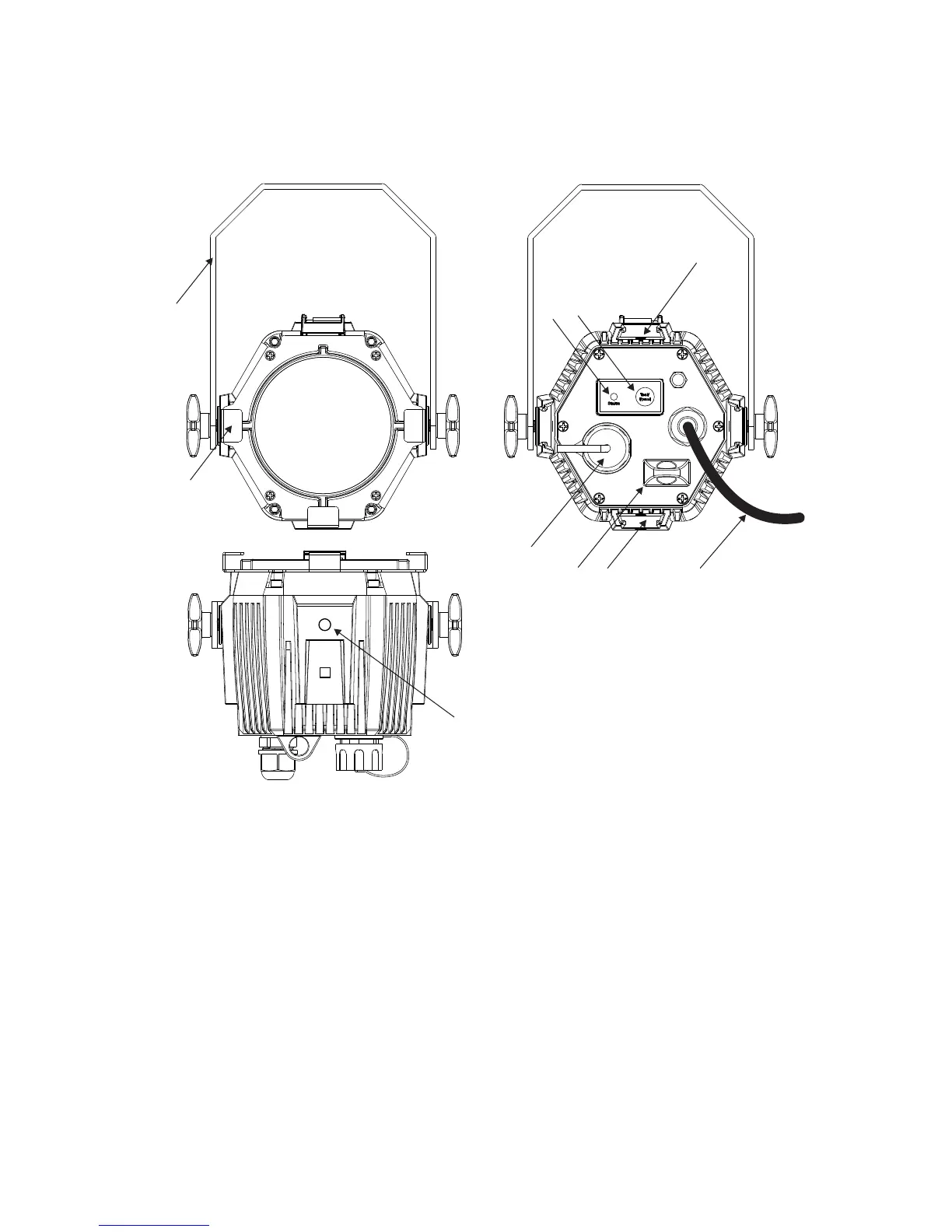

Fixture overview
1
2
6
7
5
8
9
3
4
5
1 – Hanging bracket (can be taken off)
2 – PAR30 sized holder
3 – Status LED
4 – Test / Reset button
5 – Interlock slots for interlock accessories (4 slots, one on each side of fixture)
6 – Thru connector (chassis mount, with sealing cap)
7 – Safety cable attachment point
8 – Input cable with connector
9 – M8 holes for hanging bracket attachment, maximum bolt length 15 mm (4 holes, one on
each side of fixture). May also be used for mounting fixture if standard interlock accessories
are not suitable.
