16 Martin VDO Atomic Dot user guide

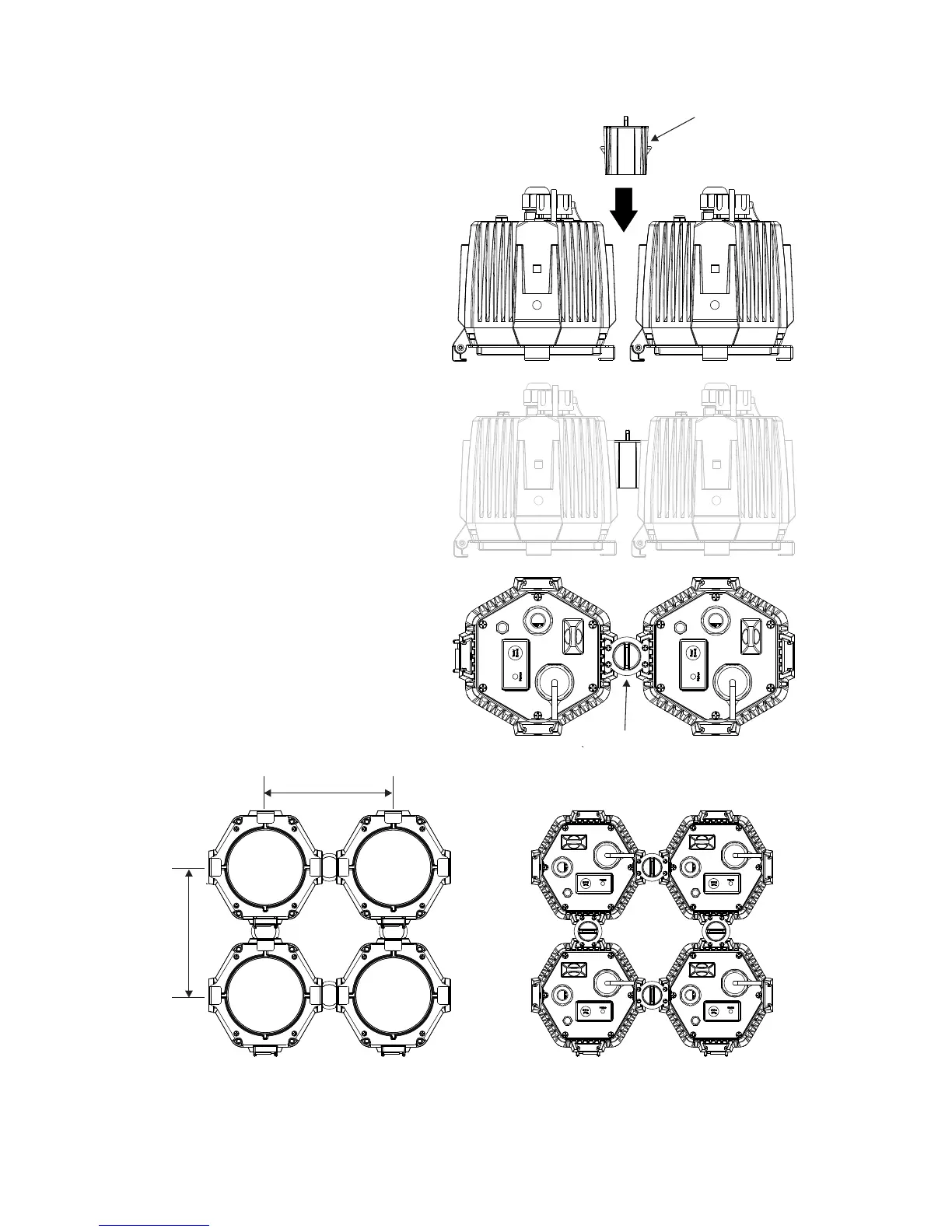

To install the Interlock Coupler, locate two
fixtures side by side and slide in the coupler
(1) from the rear. The coupler has two
retention clips which lock into each fixture.
Ensure the release key (2) is oriented as
shown so that the clips are secured in place.
Note:
x A maximum of 16 fixtures may be
interlocked in a column.
x When interlocking fixtures
horizontally, a rigging clamp must be
used every 3
rd
fixture to support the
array (so a maximum of 2
unsupported fixtures between each
supported one)
When fixtures are interlocked, the spacing is 150mm.
150
150
1
2
