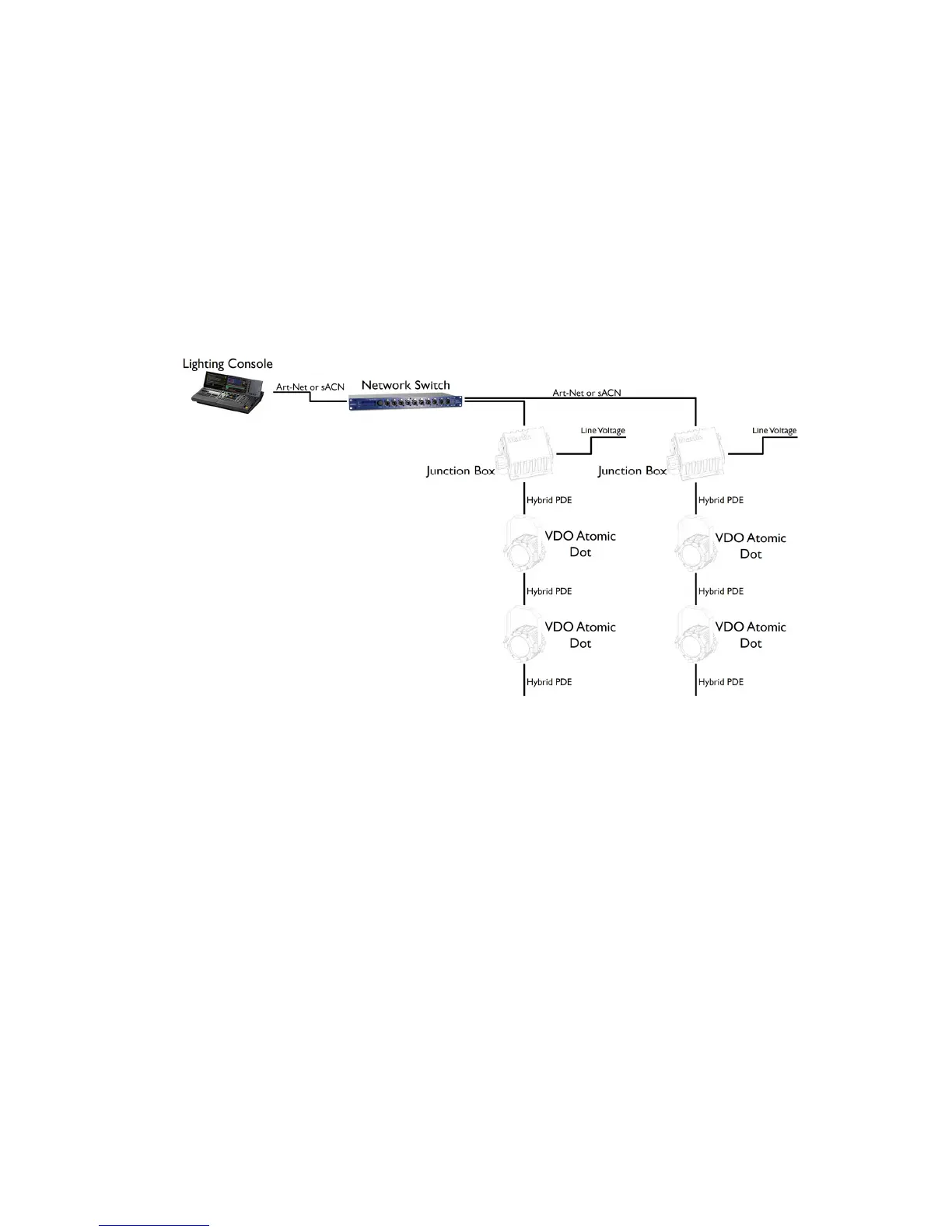

Using Art-Net or sACN
Art-Net or s
ACN data is connected to the system using the etherCON socket on the Junction Box.
Each Junction Box must have its own Ethernet connection from a network switch.
x Please ensure that network switch can operate at 100Mbit Ethernet link speed towards the
junction boxes, as the VDO Atomic Dot can only operate at that link speed.
x The combined length of Ethernet cable (between network switch and junction box) and
hybrid PDE cables must not exceed 90 m. The total length of all cables between network
switch and last fixture on the daisy-chain can be maximum 90 m.
x A shielded Ethernet cable must be used between the Network Switch and the Junction
Box.
