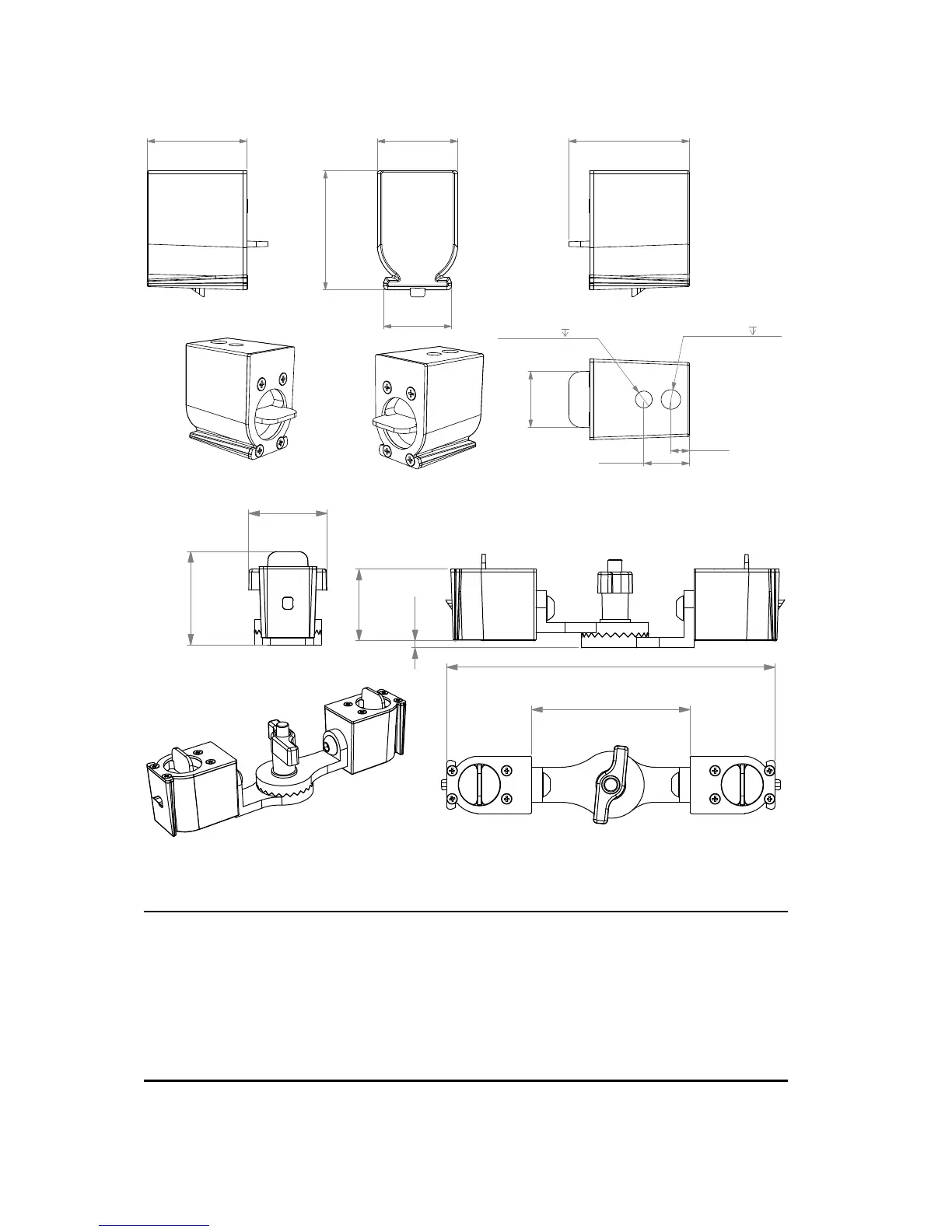

Interlock Adapter (for attaching to microphone stand)
41 33
28
18.5
15.0M8x1.25-6H
3/8-16UNC
15.0
7.5
49
48
23
Pivot coupler (for interlocking two fixtures at an angle)
44
90
187
53
41
4
