MC-E(Edger Attachment)
Flexible Drive Shaft
Maintenance Interval
The Edger Attachment uses a flexible drive shaft inside the drive
shaft tube. The flexible drive shaft should be lubricated after
each 30 hours of use.

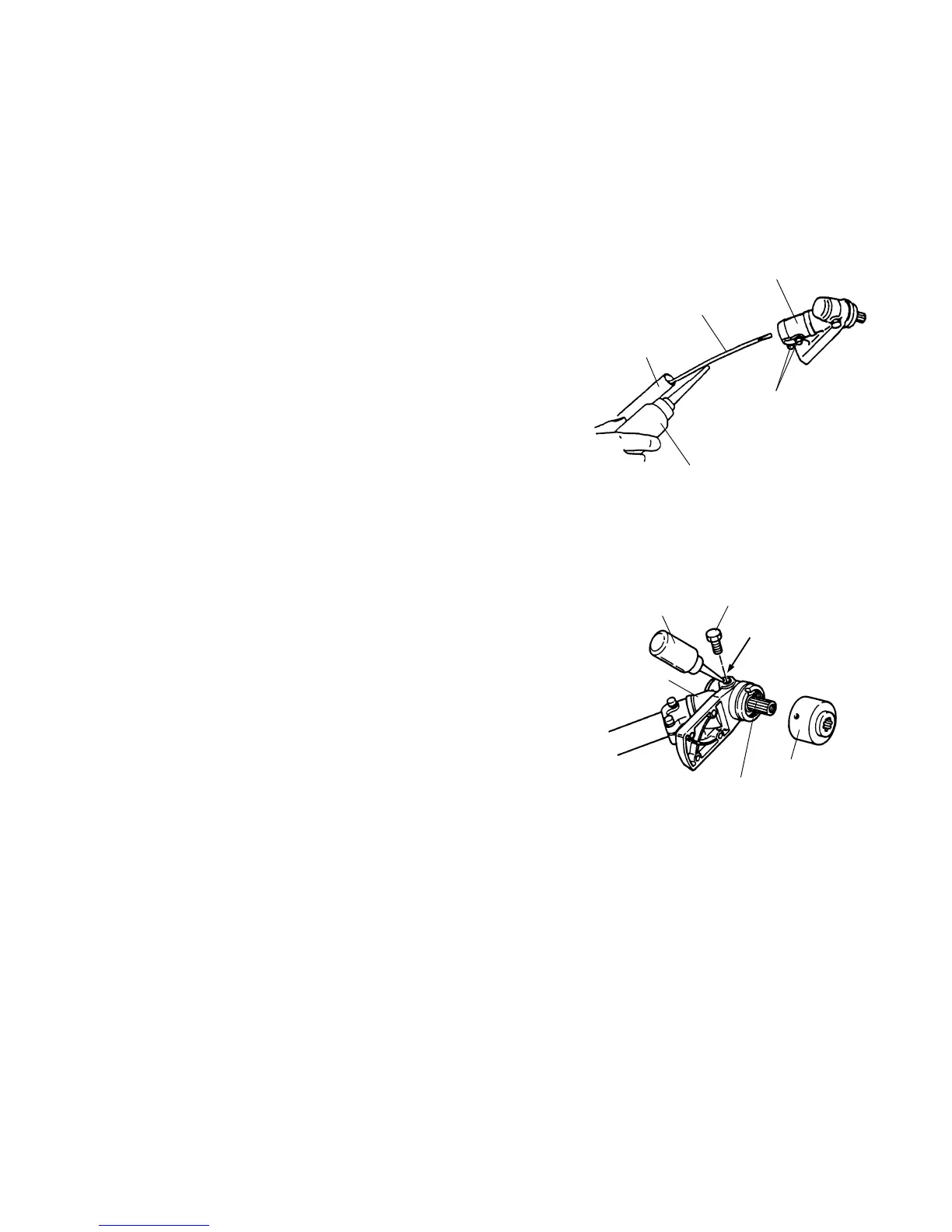

Flexible Drive Shaft Lubrication
1. Loosen the two screws holding the gearcase to the drive shaft tube
and carefully remove the gearcase from the drive shaft tube.
2. Grip the end of the flexible drive shaft and remove it from the
drive shaft tube.
3. Lubricate the flexible drive shaft with a high quality #2
lithium-base bearing lube.
4. Reinstall the flexible drive shaft into the drive shaft tube.
Twist the flexible drive shaft as you insert it into the to ensure
that it seats into the clutch drum.
5. Reinstall the gearcase onto the drive shaft tube, then tighten
the two screws.
Gearcase
Maintenance Interval
The gearcase lubricant should be inspected for after every 30
hours of use.
Gearcase Maintenance
Remove the blade and the boss adapter. Clean any dirt and
debris from the area between the boss adapter and the
gearcase. Remove the gearcase plug from the side of the
gearcase. While rotating the attaching shaft, inject lithium-base
bearing lube (P/N 211337) through the plug hole until the
gearcase is full. Re-install the gearcase plug.
Attaching Shaf
t
Grease Plug
Plug Hole
Boss Adapte
r
Gearcase
Bearing Lube
(P/N.211337)
Flexible Shaf
t
Driveshaft Tube
Scre
w
Gearcase
#2 Lithium
-
Base Bearing Lube
