- 7 -
Assembly

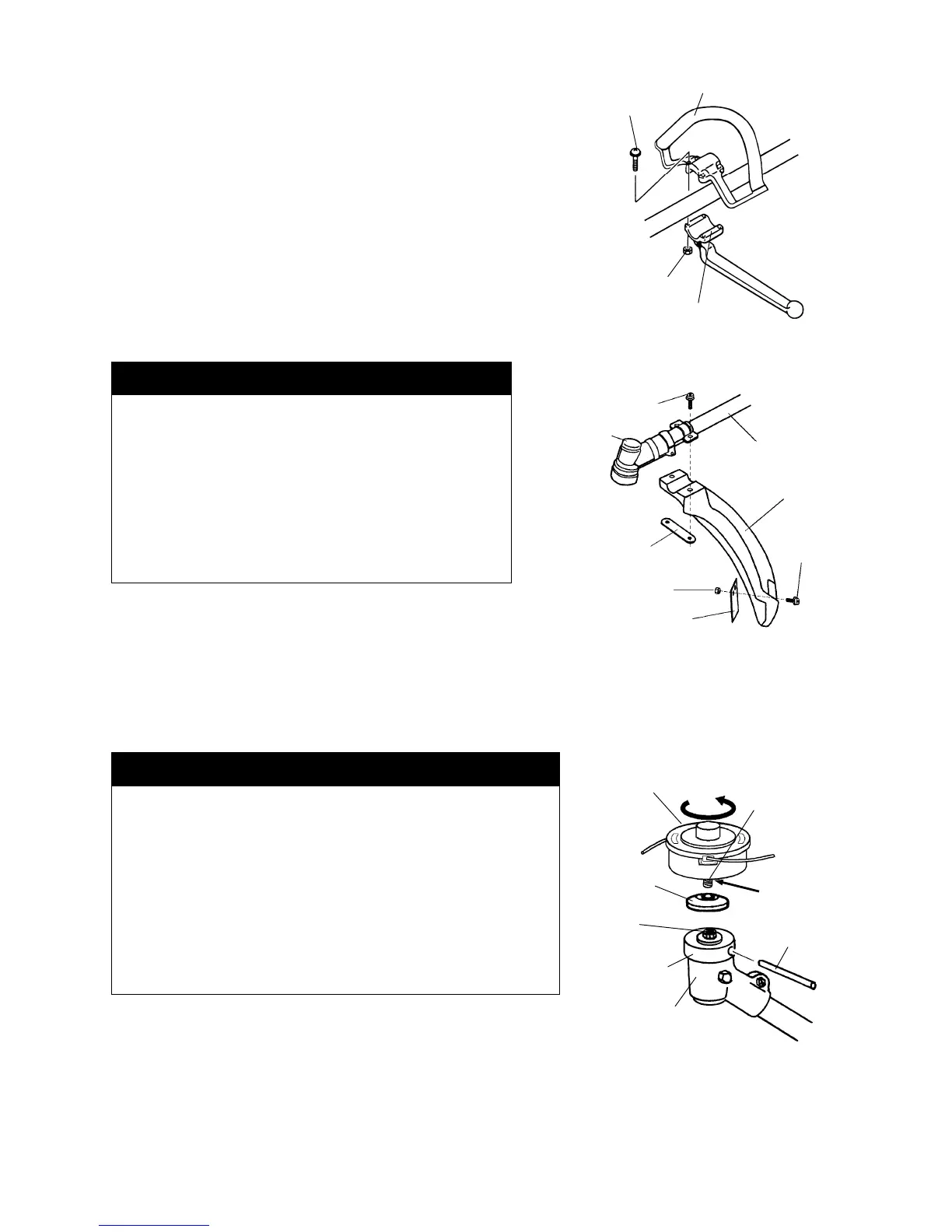

Loop Handle Installation
1. Place the loop handle and the bottom clamp on the shaft
approximately 28cm(11 inches) from the end of the stop switch/
throttle trigger assembly.
2. Install the four screws and nuts. Tighten the screws evenly.
3. Reposition the loop handle up or down the driveshaft to the
most comfortable position, and tighten the screw and nuts.
MC-S(String Trimmer Attachment)
Installing Guard
1. Fasten the string cutoff blade to the guard with
M5×15 screws as shown on Fig.2.
2. Atttach the guard to the shaft with the two M5x30
screws and plate as shown.
Installing Trimmer Head
1. Align the hole in the boss adapter with the guide slot in the
gearcase.
2. Insert the φ3.5mm pin into the hole in the boss adapter and the guide slot in the gearcase to lock the
attaching shaft.
3. Thread the trimmer head adapter into the attaching shaft, then tighten the trimmer head by hand.
Note: The trimmer head adapter has left-hand thread.
4. Remove the φ3.5mm pin from the boss adapter and gearcase.
WARNING
POTENTIAL HAZARD
・If the cutting attachment is not adequately tightened,
it can come loose from the String Trimmer Attachment
during use.
WHAT CAN HAPPEN
・This may cause damage to property or personal injury.
HOW TO AVOID THE HAZARD
・Make sure the cutting attachment head is securely
fastened to the attaching shaft in the gearcase.
Loop Handle
Screw
Trimmer
Head
Adapter
Attaching
Shaft
Gearcase
Boss
Adapter
Holding Tool
(φ3,5mm Pin)
Trimmer
Head
Left-hand
thread
Clamping
Washer
M5X30
Screw(2)
Gear Case
Shaft
Guard
M5X15
Screw(2)
Plate
Hex Nut
Fig.2
String Cutoff Blade
WARNING
POTENTIAL HAZARD
・Foreign objects can be thrown by Edger.
WHAT CAN HAPPEN
・Contact with thrown objects can cause personal
injury.
HOW TO AVOID THE HAZARD
・Never operate the Multi-cutter without the blade
guard.
