- 8 -
Brushcutter Blade
1. Remove the blade bolt, stabilizer and clamping washer
from the attaching shaft out of the gearcase.
Note: The blade bolt has left-hand thread.
2. Install the brushcutter blade onto the boss adapter, then
reinstall the clamping washer, stabilizer and blade bolt.
3. Align the hole in the boss adapter with the guide slot in the
gearcase.
4. Insert the φ3,5mm pin into the hole in the boss adapter and the guide slot in the gearcase to lock the
attaching shaft.
5. Tighten the blade bolt.
6. Remove the φ3,5mm pin from the boss adapter and gearcase.
WARNING
POTENTIAL HAZARD
・If the Brushcutter blade is not adequately tightened, it can come loose from the Brushcutter
during use.
WHAT CAN HAPPEN
・This may cause damage to property or personal injury.
HOW TO AVOID THE HAZARD
・Make sure the Brushcutter blade is securely fastened to the attaching shaft in the gearcase.
WARNING
POTENTIAL HAZARD
・Brushcutter blade is sharp.
WHAT CAN HAPPEN
・Contact with sharp blade can cause personal injury.
HOW TO AVOID THE HAZARD
・Wear gloves when you handle the blade.

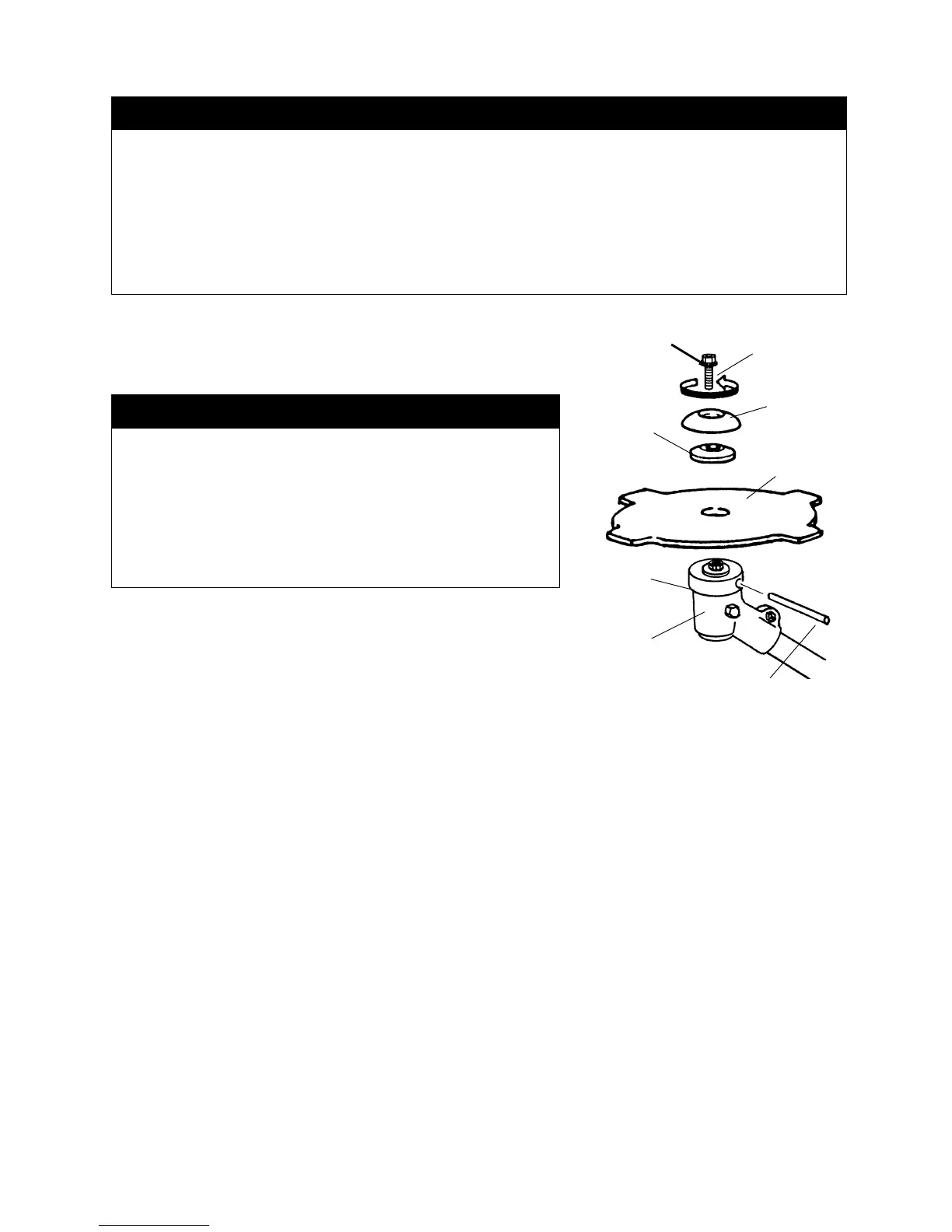

Brushcutter Blade
Clamping
Washer
Stabilizer
Blade Bolt
Left-hand
thread
Gearcase
Boss
Adapter
Holding Tool
(φ3,5mm Pin)
To Next Page
