In an Emergency

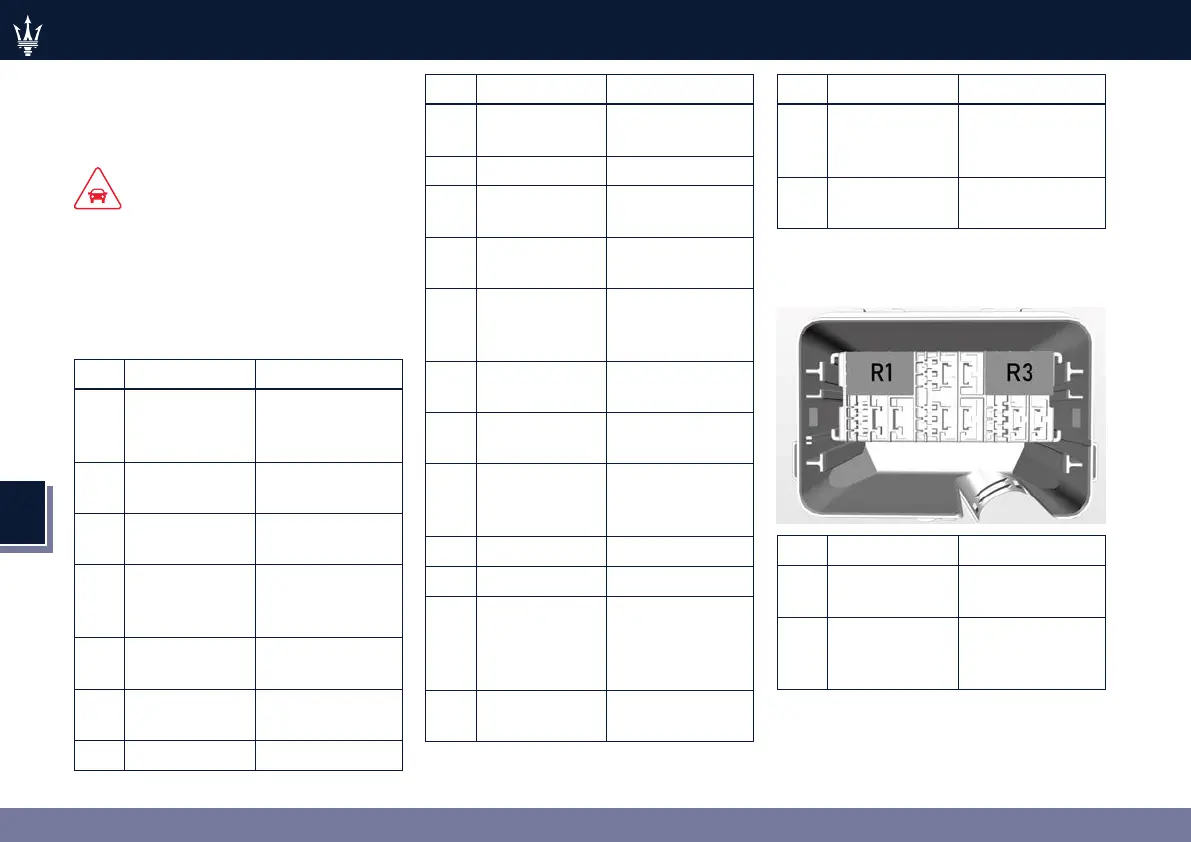

The table points out the position as
featured in the cover, the type and
function of the fuses included in the
box.
CAUTION!
•
After replacement, refit the
protective cover of the module.
•
If you need to wash the engine
compartment, do not direct the
water for too long directly on the
module.
Ref. Type Function
F02 Maxi – 20A
ECU Chassis
Domain Con-
trol input
F03 Maxi – 30A
Hi-Fi 2 relay
input
F06 Maxi – 30A
ETM R1 relay
input
F07 Maxi – 40A
HVAC front
blower relay
coil
F08 Maxi – 30A
Hi-Fi 1 relay
input
F09 Mini – 20A
RH seat move-
ment
F10 Mini – 15A Horn input
Ref. Type Function
F14 Mini – 7,5A
External Mirror
input
F16 Mini – 5A BCM Module
F17 Mini – 5A
Wireless
charger
F18 Mini – 10A
LH seat move-
ment
F19 Mini – 7,5A
ECU Chassis
Domain Con-
trol input
F20 Mini – 20A
Power Outlet
Trunk input
F21 Mini – 10A
Dna/Hub usb
ports
F23 Mini – 25A
LH seat move-
ment + Heated
seats
F30 Mini – 10A Navtrack
F82 Maxi – 20A BCM key relays
F83 Maxi – 20A
Wiper ON/OFF
relay output
and wiper
LOW/HI
F84 Mini – 7,5A
ECU Lifter
input
Ref. Type Function
T07 Maxi – 50A
HVAC front
blower relay
coil
T09 Micro – 30A
Wireless
charger input
Next fuses boxes are located in the
front luggage compartment, but are
not accessible by the user.
Ref. Type Function
R1 Micro – 30A
Horn relay
input
R3 Micro – 30A
ECU Chassis
Domain Con-
trol input
