In an Emergency
Ref. Type Function
F01 MIDI – 125A FDU input
F02 MIDI – 80A EPS
F03 MIDI – 100A
Enable cooling
fan relay input
F04 MIDI – 70A IBS - MKC1
F05 MIDI – 40A IBS - Valves
F06 MIDI – 50A Lifter input
Ref. Type Function
P035 Mini – 5A
Battery charge
status sensor
C038 Maxi – 50A
Lifter pump
relay
P059 Maxi – 2A
Clockspring
input

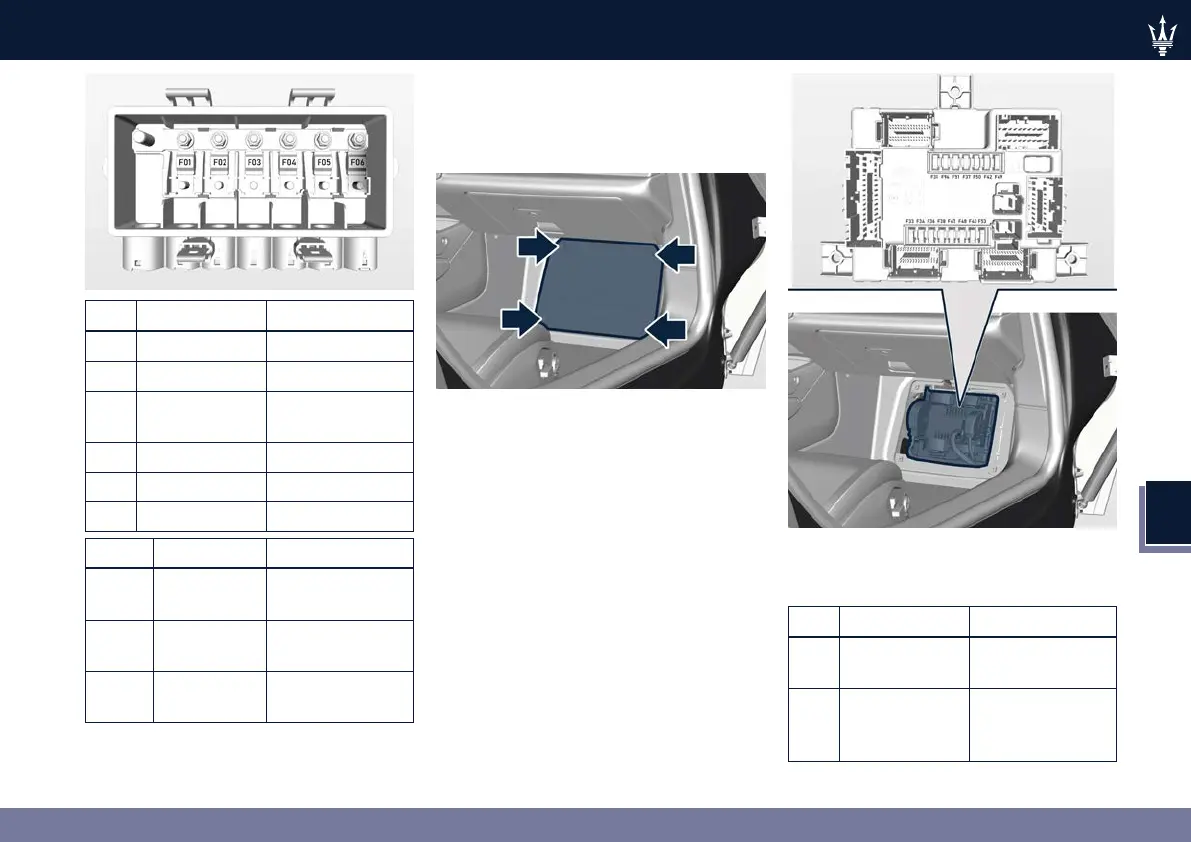

Fuses on the Body Computer
• To access the center it is necessary
to unscrew the passenger's footrest,
under the dashboard.
The table points out the position, the
type and function of the fuses on the
body computer.
Ref. Type Function
F33 Mini – 25A
Front Driver
Window Lifter
F34 Mini – 25A
Front Passen-
ger Window
Lifter
