In an Emergency
Ref. Type Function
F36 Mini – 15A
HVAC, ASU,
HFSU, EPB
switch, RFHM,
KNOB, pla-
foniera, TBM,
EOBD, EMC,
SGW and DCSD
module
F37 Mini – 10A IPC module
F38 Mini – 20A
Lock/Unlock
Fuel Lid and
Latch-Liftgate
F42 Mini – 7,5A
BSM, EPS and
CDCM module
F43 Mini – 20A
Output from
relay Washer
pump
F49 Mini – 7,5A
PAM,
Blindspot,
Internal mirror
and lifter
F50 Mini – 7,5A ORC
F51 Mini – 7,5A
AC Compres-
sor, HVAC, Air
quality sensor,
T09 internal
relay FDU, Hu-
midity sensor,
RVDM
Ref. Type Function
F53 Mini – 7,5A
Clockspring,
start button
and IPC

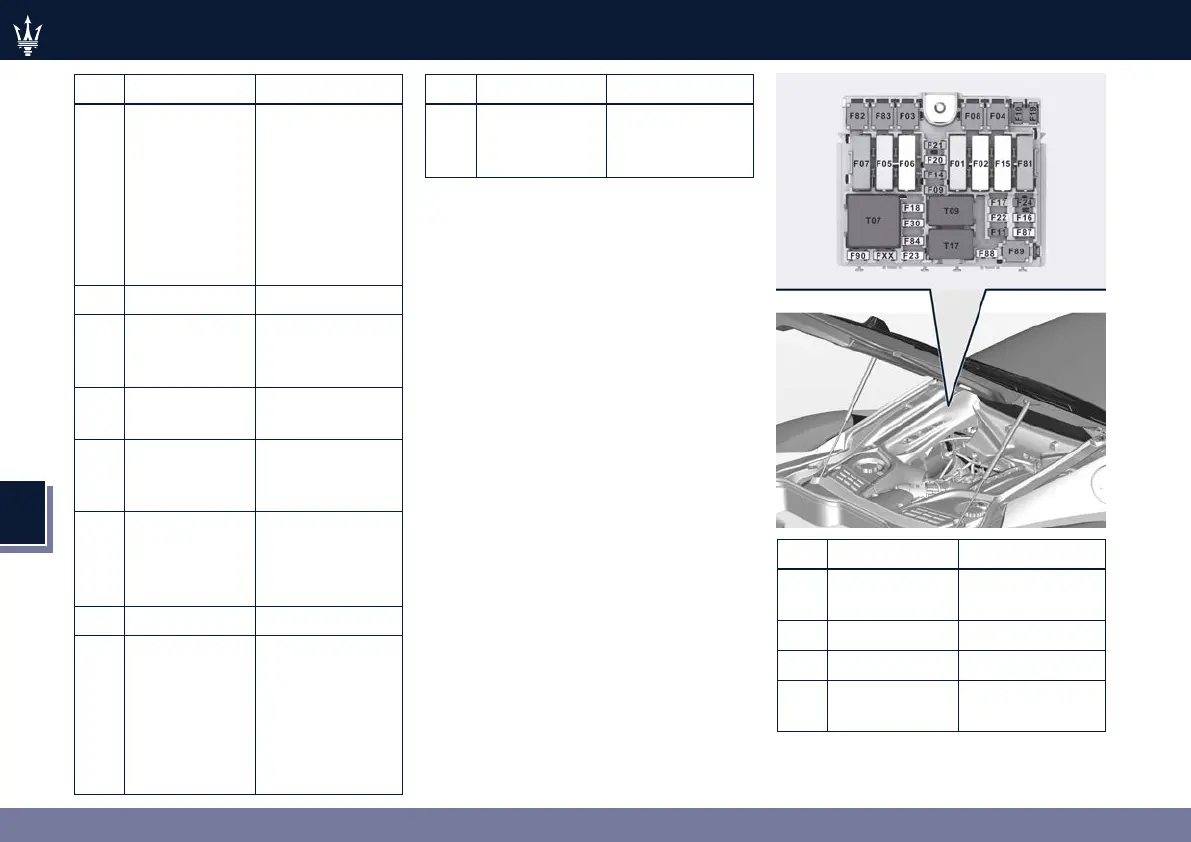

Fuse Boxes in the Engine
Compartment
This boxes are located in an internal
area that can be accessed only by
removing the left engine compartment
cover. Considering the complexity of
this operation, we recommend having
the fuses replaced by an Authorized
Maserati Dealer.
The table points out the position as
featured in the figure, the type and
function of the fuses in the box.
Ref. Type Function
F03 Maxi – 20A
Direct starter
control
F04 Maxi – 20A A/C Fans
F07 Maxi – 50A Main Relay
F14 Mini – 15A
Direct battery
positive TCM
