Masibus MINT Series User Manual

Page | 40
MINT – IO
REF NO: m25A/om/101
Issue No: 11
Communication Specifications:
Communication Port
2 COM ports
Communication Interface
Based on EIA RS-485.
Communication Speed(Baud
rate)
9600, 19200, 38400, 57600,115200 bps.
Parity
ODD, EVEN ,NONE
Data bits
8
Stop bit
1, 2
Communication Protocol
Modbus RTU

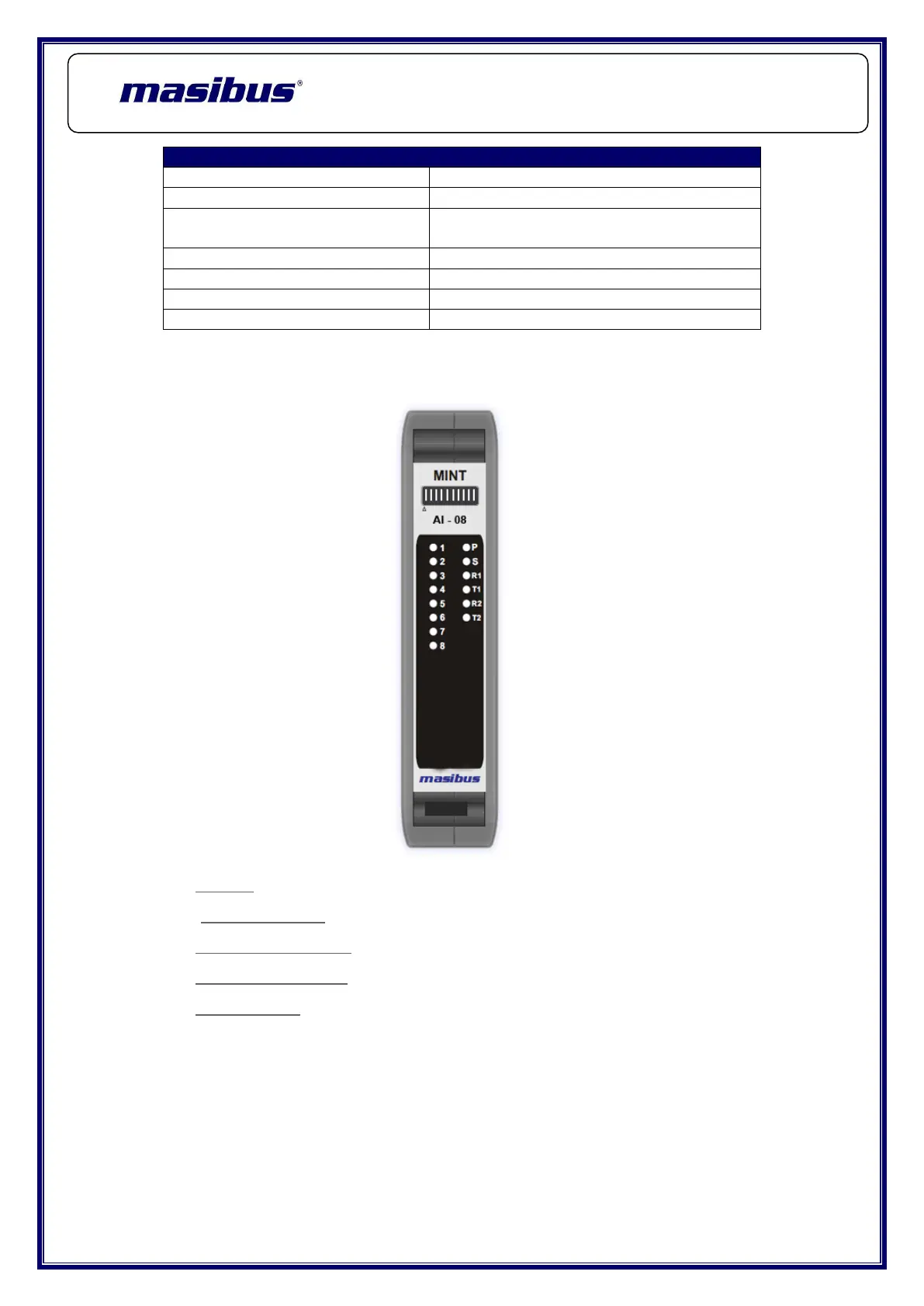

4.3.3 Status Indicators
 Power: “ON” When Logic Supply is “ON”
 Module Status: “ON” When CPU is Running
 RS 485 RX1- RX2: Flashes when Modbus queries are receiving
 RS 485 TX1- TX2: Flashes when transmitting Modbus response
 Input Status: “ON” when Input is “ON”
“OFF” when Input is “OFF”

Masibus MINT Series Specifications

General

Brand	Masibus
Model	MINT Series
Category	Control Unit
Language	English
