EMMA Airway Adapter
Respiratory gas measurements are, as described in the previous section, obtained by continuously measuring the
infrared light absorption through the EMMA Airway Adapter. The EMMA Airway Adapter is fitted with optical XTP™
windows that are transparent to light in the wavelength ranges of interest. The EMMA Airway Adapter may, for
example, be inserted between the endotracheal tube and the resuscitation bag or between the resuscitation bag and
the patient mask.
The EMMA Airway Adapter is available in two models: Adult/Pediatric (Figure 3a) and Infant (Figure 3b). EMMA
operates to specification with either EMMA Airway Adapter model when used with its appropriate patient population.
• The EMMA Airway Adapters are intended for single patient use. They are disposable and shall not be
re-used. Reuse of single patient use Adapters can cause cross infection.
• EMMA Airway Adapters shall be disposed of in accordance with local regulations for bio hazardous waste.

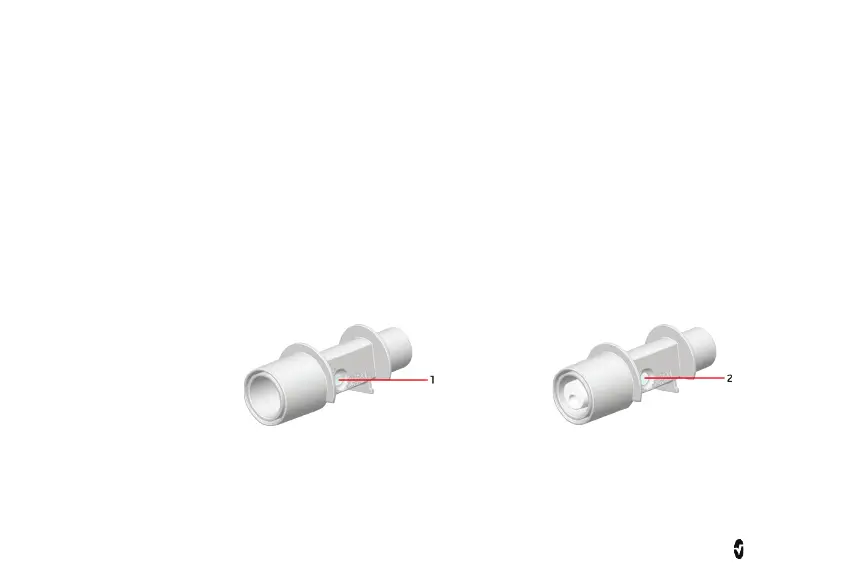

EMMA Airway Adapter Adult/Pediatric (REF 100620) EMMA Airway Adapter Infant (REF 100660)
1. XTP window (Adult/Pediatric)
2. XTP window (Infant)
Note: A trained medical professional must determine the proper EMMA Airway Adapter model for each patient
application. No hardware or software configuration changes result from the EMMA Airway Adapter model selected.
