Chapter 4: Operation
The information in this chapter assumes that EMMA is set up and ready for use. This chapter provides necessary
information for proper operation of the device. Do not operate EMMA without completely reading and understanding
these instructions.
EMMA Display
The EMMA Capnograph is fitted with a graphic OLED-display that displays End-Tidal Carbon Dioxide (EtCO
2
) and
Respiratory Rate (RR) parameters as well as the CO
2
waveform (Capnogram).

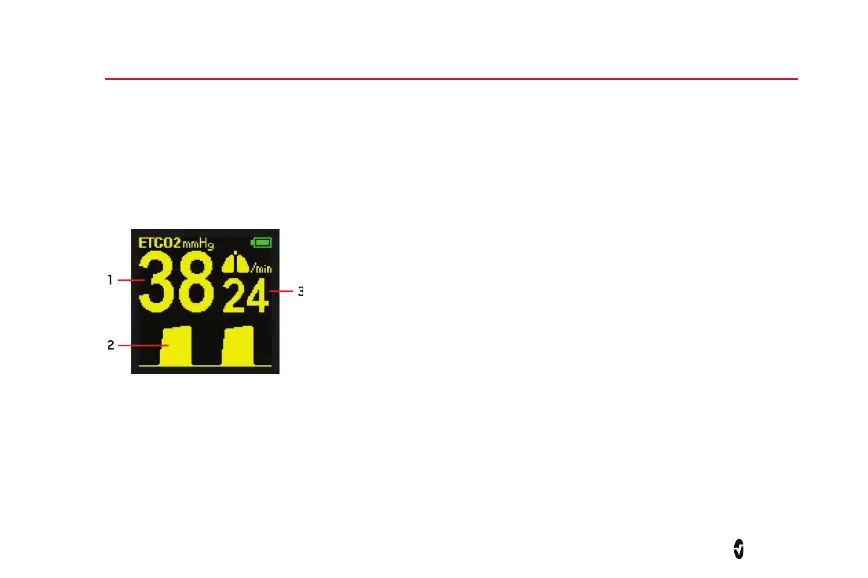

1 EtCO
2
Parameter Value
2 Capnogram
3 RR Parameter Value
EtCO
2
The EMMA Capnograph is available in versions displaying End-Tidal Carbon Dioxide (EtCO
2
) either in mmHg (0 - 99
mmHg) or kPa (0.0 - 9.9 kPa). EtCO
2
values are displayed after one breath and the averaged value is updated every
breath.
