Rad-87 Pulse CO-Oximeter Operator’s Manual
2
System Description
1
Nurse Call
Connector
Use the 1/4” round Connector to interface with a nurse call system.
This is a stereo output and should be utilized with a stereo cable. All
external device connections to the Nurse Call Connector must be IEC-
60950 compliant.
2
Serial Output
Connector
Use the Serial Output Connector to connect a serial device, including a
serial printer, RadNet Interface Module, or PC, to the Rad-87. See Section
7, Output Interface Specifications. All external device connections to the
Serial Output Connector must be IEC-60950 compliant.
3
Equipotential
Ground
Connector
Use the Equipotential Ground Connector for grounding.
4
AC Power
Receptacle
For continuous operation and/or battery recharging, plug the AC power
cord into an AC power receptacle.

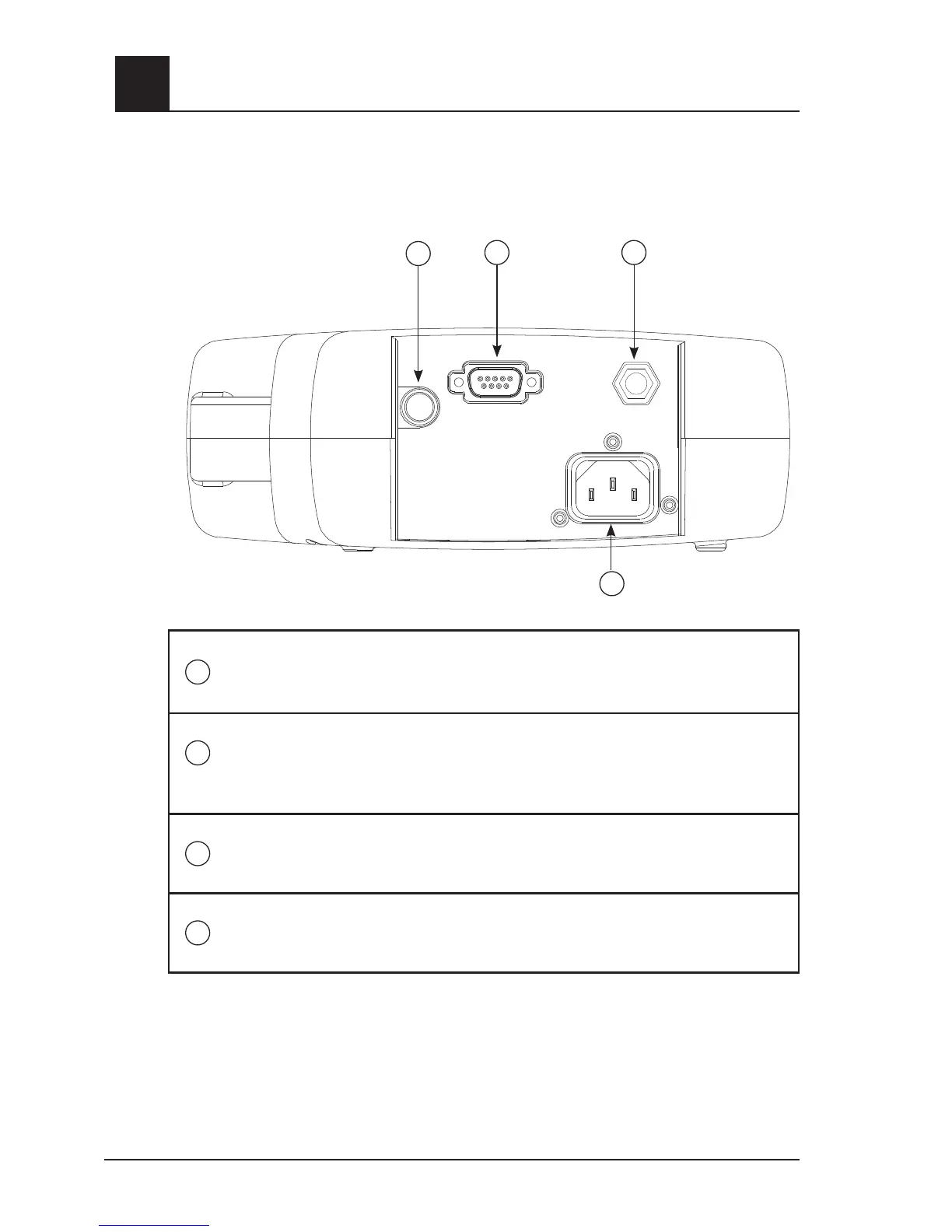

Rad-87 Rear Panel
2
1
3
4
