20 F37 Masport Rear Flued Room Sealed Freestanding Gas Heater

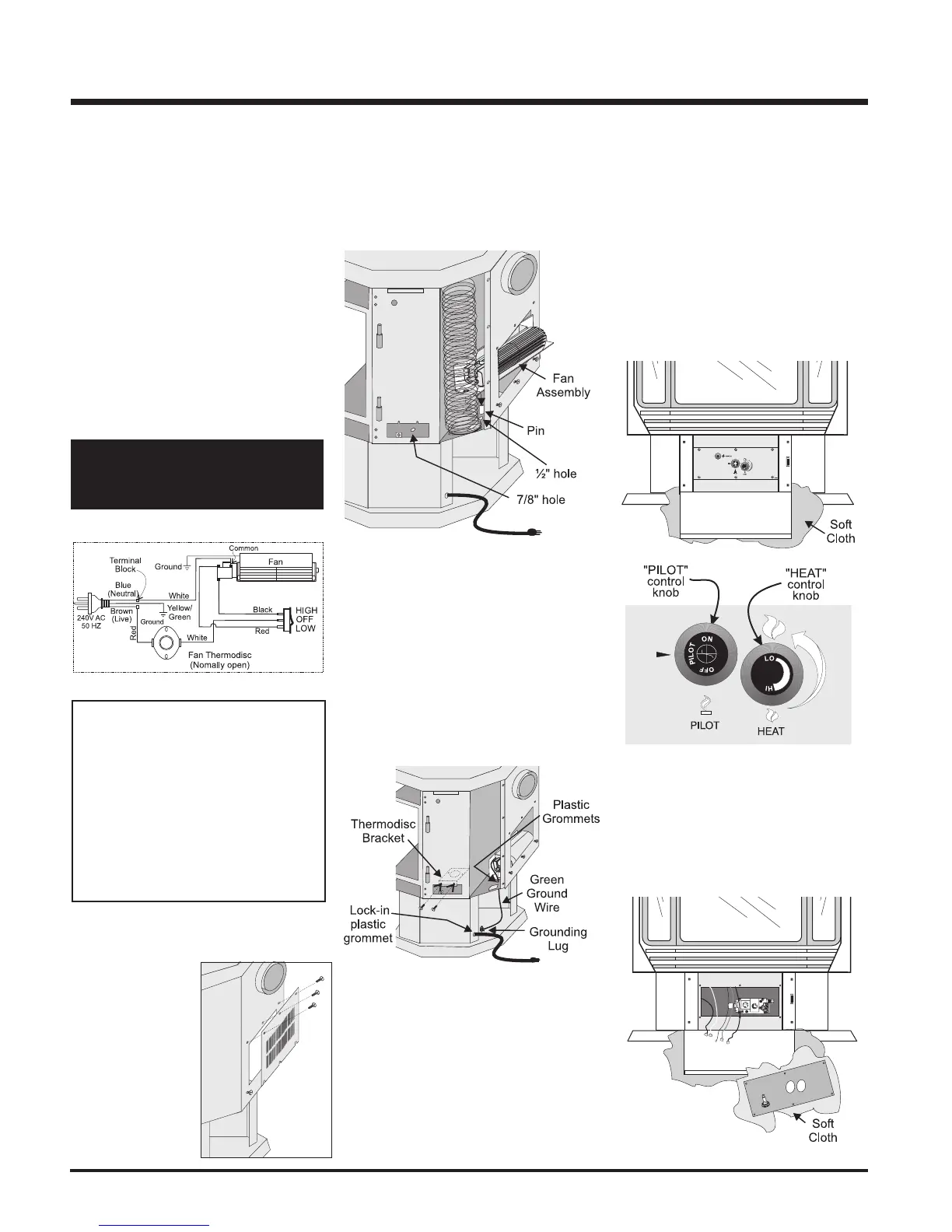

MAINTENANCE
REMOVING VALVE
If your valve requires maintenance or replace-
ment, use the following instructions:
Note: Always close off the gas supply
before removing the valve.
1) Open front pedestal door. You may want
to put a soft cloth on the base of the unit so
that when the pedestal door is open it
doesn't scratch the paint. See diagram
below.
FAN MAINTENANCE
If your fan requires maintenance or replace-
ment it must be performed by an authorised
person. Access to the fan is through the plate
on the rear wall of the firebox. NOTE: the unit
MUST NOT be operated without the fan
access panel securely in place and cor-
rectly sealed.
IMPORTANT: These fans collect a
lot of dust from within your home.
Ensure you maintain these fan mo-
tors on a regular basis by vacuum-
ing out the fan squirrel cages, around
the motor, and around the grills on
the back of the stove.
To remove fan:
1) Unplug or discon-
nect power
source to stove.
2) Remove the rear
access panel on
the back of the
stove. The fan can
only be accessed
from the back of
the stove.
IMPORTANT
Disconnect power supply
before servicing
WARNING:
Electrical Grounding Instructions
This appliance is equipped with
a three pronged (grounding) plug
for your protection against shock
hazard and should be plugged
directly into a properly grounded
three-prong receptacle. Do not
cut or remove the grounding
prong from this plug.
3) Unclip the black and white wires from the
fan motor.
4) Lift fan off of the 2 pins, tip back and pull
through the opening. Disconnect the green
ground wire from the right side of the fan
as soon as you can reach it.
Replacing Fan:
Reverse the above steps (1 - 4). Make sure the
fan wires and the ground wire are reattached.
Hint for pushing fan down onto pins - rub a bit
of dish soap on the grommet so it will slide more
easily onto the pin. Check to make sure the fan
is seated properly on the pins - try to move the
fan back and forth, there should be no noise, if
there is check that the grommets haven't come
loose.
2) Undo the six screws holding the control
panel in place.
3) Disconnect all wires from the back of the
control panel and then remove panel. You
should lay the panel on a soft cloth so it
doesn't get marked up. See diagram above.
